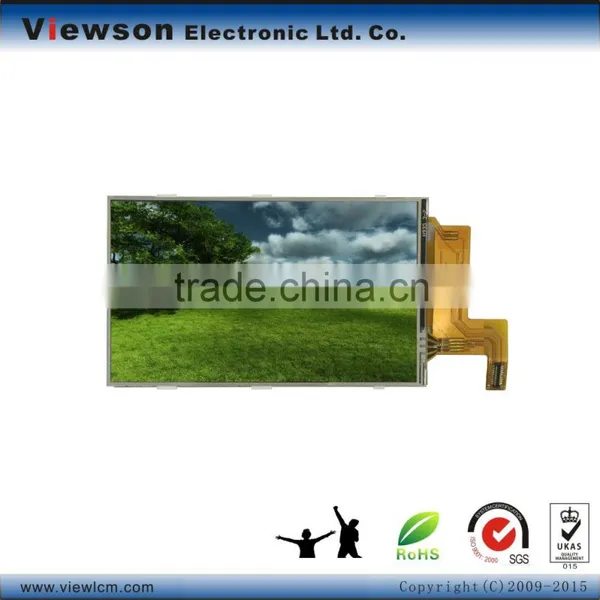

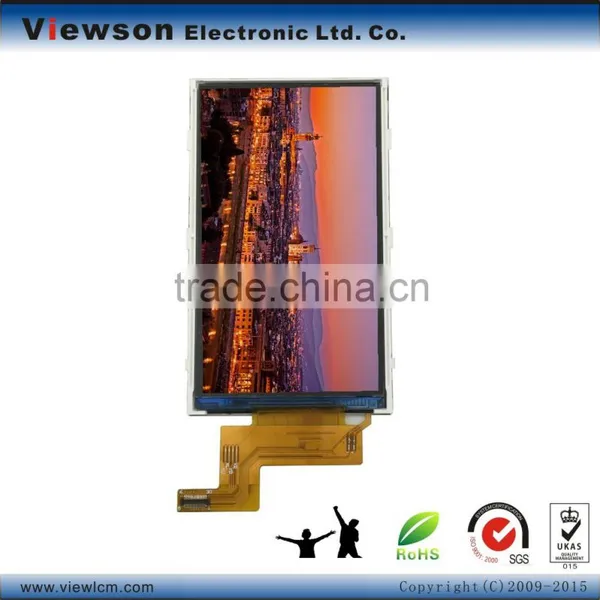

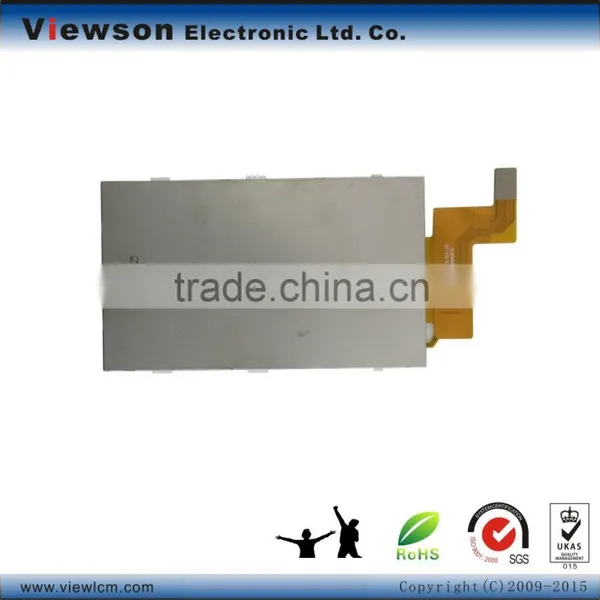

4.0 Inch LCD Display Module for Industial Use with RTP(Li)
- 300000 Piece / Pieces per Month
- Hongkong
You May Like
-
8.0 Inch LCD display Module for Industial Use(Li)
-
3.2 Inch LCD Panel, Color TFT LCD Module for Industial Use (Supper High Brightness LED backlight)
-
5.6 Inch LCD Panel, Color TFT LCD Module for Industial Use ,without T-CON
-
3.5 Inch LCD Panel, Color TFT LCD Module for Industial Use (Supper High Brightness LED backlight)
-
2.8 Inch LCD Panel, Color TFT LCD Module
-
10.1 Inch LCD Panel, Color TFT LCD Module for Industial Use (Supper High Brightness LED backlight)
Product Details
| Place of Origin | Guangdong, China | Brand Name | VIEWSON | |
| Model Number | VT394WF01 | Type | TFT |
Product Description

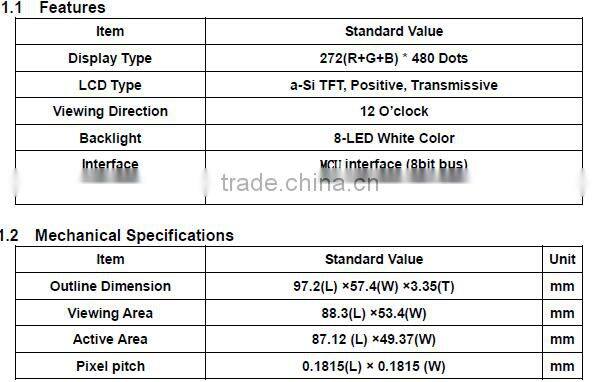

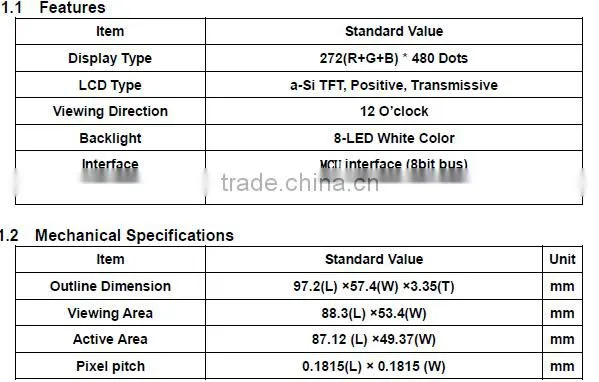

1.specifications

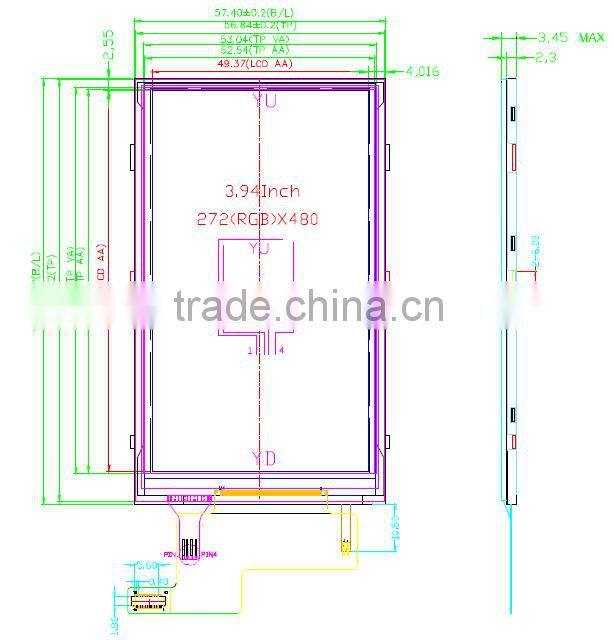

2. MODULE STRUCTURE

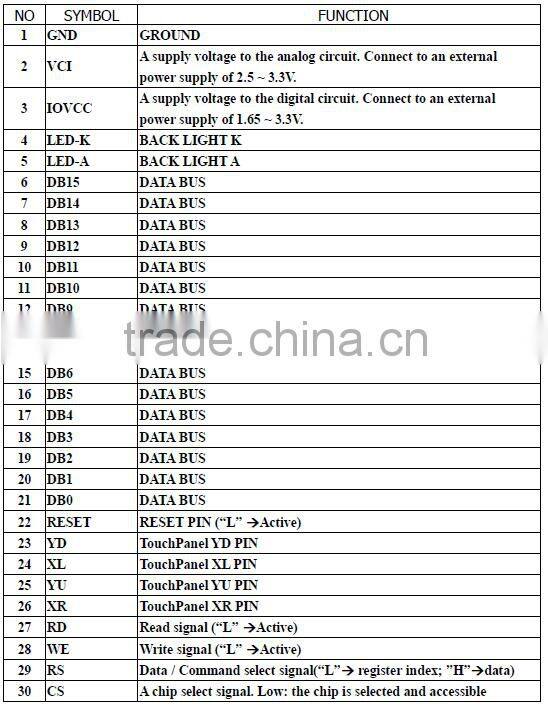

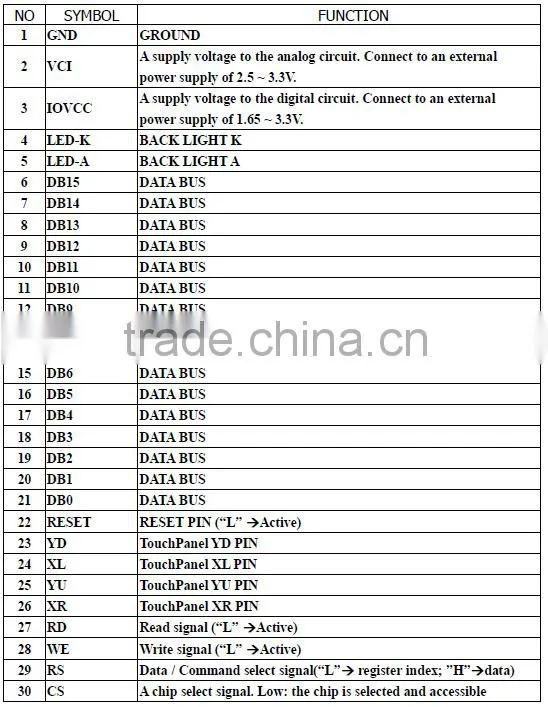

3. Interface Pin Description
1. Our standard tft lcd module size:
1.44", 1.77", 2", 2.4", 2.8",, 3.2", 3.5",
4"(3.97"), 4.3", 5", 5.6", 5.7", 7", 8", 9.0",10.1".
2. New products: 4.3", 5.0", 5.7" and 7" TFT LCD with MCU interface. SPI,UART
3. 2.8", 3.5" transflective/ sun readable tft lcd.
4. 3.5", 5", 7" with capacitive touch panel.
We mainly supply LCD TFT display panel and module from 1.44 to 10.2 inches and Mono STN LCD module.We provide accessories such as touch panel, driver board, connectors as package.
We also provide Demo board for customer to test samples
Factory capability
2000 square meter factory, with about 70 employees. Among whom about 10 are professional technicians and 1/4 have more than 5 years experience in display field.
Complete production line and test equipment
Production capacity of 300K pcs per month.
