Help CenterOLED 2.3 Inch 12832 Modules
US$ 6.1 - 8.3
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VIEWSON
Model Number:
YB-TW2864023A02
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
VIEWSON
Model Number
YB-TW2864023A02
Type
LCM
1.specifications

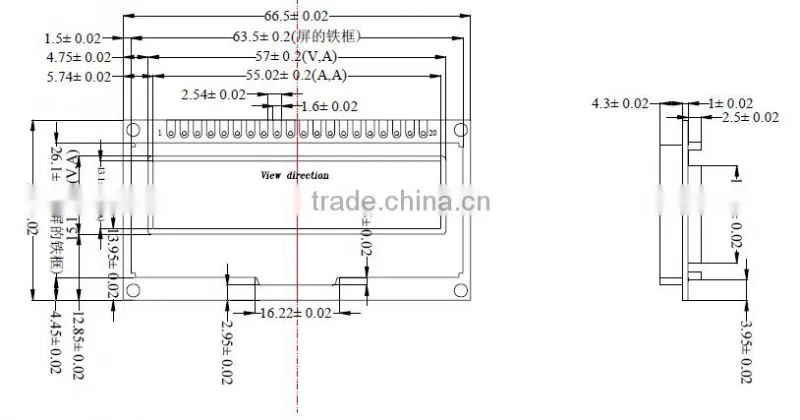

2. MODULE STRUCTURE
3. Interface Pin Description
Related Products
| Size | Pixle | Color | Panel Size(mm) | Active area(mm) | Interface |
| 0.48 | 72x32 | white | 14.9x11.29x1.21 | 11.2x4.9 | SPI |
| 0.66 | 64x48 | white/blue | 18.46x18.1x1.3 | 13.42x10.06 | 8 bit,4-wire SPI,I2C |
| 0.69 | 96x16 | white/blue | 26.3x8.0x1.15 | 17.26x3.18 | I2C |
| 0.83 | 96x39 | white/blue | 23.8x16.2x1.15 | 19.37x7.86 | 8 bit,4-wire SPI,I2C |
| 0.84 | 96x16 | blue | 29.1x9.2x1.15 | 21.1x3.5 | I2C |
| 0.91 | 128x32 | white/blue | 30x11.5x1.15 | 22.38x5.58 | I2C |
| 4-wire SPI | |||||
| 0.96 | 128x64 | white/blue | 26.7x19.26x1.3 | 21.74x11.2 | 8 bit,4-wire SPI,IIC |
| white/blue | IIC,4-wire SPI | ||||
| white/blue/yellow | IIC,4-wire SPI | ||||
| 1.04 | 128x32 | white | 30.4x14.5x1.15 | 25.58x6.38 | 8 bit,4-wire SPI,I2C |
| 1.3 | 128x64 | white | 34.5x23.0x1.45 | 29.42x14.7 | 8 bit,4-wire SPI,I2C |
| white/blue | |||||
| 1.54 | 128x64 | white/yellow | 45.6x29.14x2.0 | 35.05x17.51 | 8 bit,4-wire SPI,I2C |
| white/yellow | 42x27.22x1.45 | 8 bit,4-wire SPI,I2C | |||
| 1.68 | 128x32 | white | 50.5x11.2x1.6 | 42.22x6.22 | 3/4-wire SPI,I2C |
| 2.23 | 128x32 | white/blue/yellow | 62.0x24.0x2.0 | 55.02x13.1 | 8 bit,4-wire SPI,I2C |
| 2.42 | 128x64 | white/blue/yellow | 62.5x37.0x2.0 | 55.01x27.49 | 8 bit,4-wire SPI,I2C |
| 2.7 | 128x64 | white/blue/yellow | 73.0x41.86x2.0 | 61.41x30.69 | 8 bit,4-wire SPI |
| 2.81 | 256x64 | white/blue/yellow | 84.0x25.8x2.0 | 69.1x17.26 | 8 bit,4-wire SPI |
| 3.12 | 256x64 | white/blue/yellow | 88.0x27.8x2.0 | 76.78x19.18 | 8 bit,4-wire SPI |
Packaging & Shipping
Company Information
We mainly supply LCD TFT display panel and module from 1.44 to 10.2 inches and Mono STN LCD module.We provide accessories such as touch panel, driver board, connectors as package.
We also provide Demo board for customer to test samples
Factory capability
2000 square meter factory, with about 70 employees. Among whom about 10 are professional technicians and 1/4 have more than 5 years experience in display field.
Complete production line and test equipment
Production capacity of 300K pcs per month.
