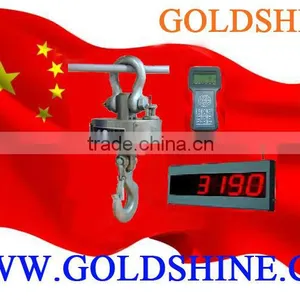

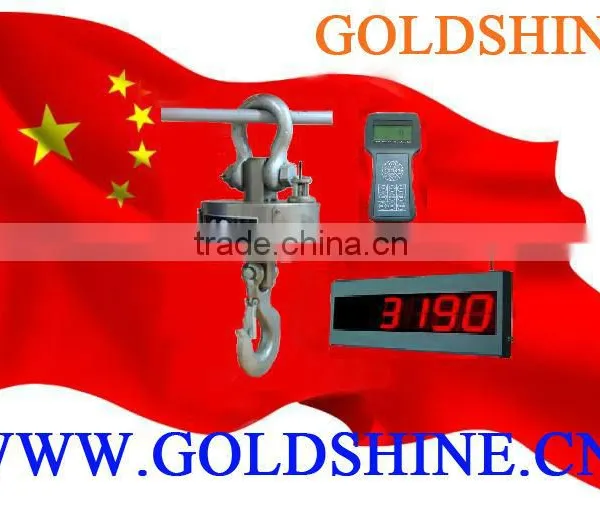

Help CenterHanging Crane Scale
Related Products
Description:
Standard Features:
Rugged construction. Accuracy: 0.05% of capacity. All functions and units are clearly display on the LCD (with backlighting).Digits are 1 inch high for easy distant viewing. Two user programmable Set-Point can be used for safety and warning applications or for limit weighing. Long battery life on 3 standard "LR6(AA)"size alkaline batteries. All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).Infrared Remote control easier to calibration(with password). Infrared Remote control with many functions : "ZERO", "TARE", "CLEAR", "PEAK", "ACCUMULATE","HOLD", "Unit Change", "Voltage Check" and "Power OFF".4 local mechanical keys :"ON/OFF", "ZERO", "PEAK" and "Unit Change". low battery warning
Main Technical Data:
| Display: | 25mm (1'') 5digits LCD |
| Power On Zero Range: | 20% F.S. |
| Manual Zero Range: | 4% F.S. |
| Tare Range: | 20% F.S. |
| Stable Time: | ≤10seconds; |
| Overload Indication: | 100% F.S. + 9e |
| Max. Safety Load: | 125% F.S. |
| Ultimate Load: | 400% F.S. |
| Battery Life: | ≥40 hours |
| Battery Type: | LR6(AA)size alkaline batteries. 1.5V×3 |
| Operating Temp.: | - 10oC ~+ 40oC |
| Operating Humidity: | ≤85% RH under 20oC |
| Remote Controller Distance: | Min. 15m |
| Battery Of Remote Controller: | 7AAA battery, 1.5V×2 |
Specification:
| Model | Max. Cap.(Kg) | Min. Weigh(Kg) | Division(Kg) | Total Display Counts (N) |
| JXCS-SW6R-01 | 1000 | 10 | 0.5 | 2000 |
| JXCS-SW6R-02 | 2000 | 20 | 1 | 2000 |
| JXCS-SW6R-03 | 3000 | 20 | 1 | 3000 |
| JXCS-SW6R-05 | 5000 | 40 | 2 | 3000 |
| JXCS-SW6R-10 | 10000 | 100 | 5 | 2000 |
| JXCS-SW6R15 | 15000 | 100 | 5 | 3000 |
| JXCS-SW6R-20 | 20000 | 200 | 10 | 2000 |
| JXCS-SW6R-30 | 30000 | 200 | 10 | 3000 |
| JXCS-SW6R-50 | 50000 | 400 | 20 | 2500 |
| JXCS-SW6R-100 | 100000 | 1000 | 50 | 2000 |
| JXCS-SW6R-200 | 200000 | 2000 | 100 | 2000 |
Weights:
| Model(SWR) | -01 | -02 | -03 | -05 | -10 | -20 | -30 | -50 | -100 | -200 |
| Unit Weight(kg) | 1.6 | 1.7 | 2.1 | 2.7 | 10.4 | 17.8 | 25 | 39 | 81 | 210 |
| Weight with shackles(kg) | 3.1 | 3.2 | 4.6 | 6.3 | 24.8 | 48.6 | 87 | 128 | 321 | 776 |
