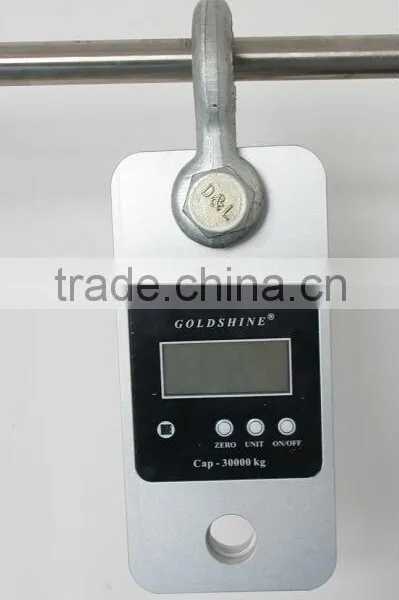

Help CenterWireless Dynamometer /Crane Scale Load Cell Big Screen
Related Products
-
Chain BlockNegotiableMOQ: 1 Set -
With High Precision Material Handling Low Headroom Electric Chain Hoist (single Speed / Dual Speed )US$ 10 - 10,000MOQ: 1 Set
-
Electric Chain HoistNegotiableMOQ: 1 Set
-
With High Precision HYJ I Model Metallurgic Electric HoistsUS$ 100 - 10,000MOQ: 1 Set
-
With High Precision Hot Sell Scale Crane With Display/JXCS-SW7WUS$ 10 - 1,000MOQ: 10 Sets
Standard Features:
Rugged construction. Accuracy: 0.05% of capacity. All functions and units are clearly display on the LCD (with backlighting) .Digits are 1 inch high for easy distant viewing. Two user programmable Set-Point can be used for safety and warning applications or for limit weighing. Long battery life on 3 standard “LR6(AA)”size alkaline batteries. All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).Infrared Remote control easier to calibration(with password). Infrared Remote control with many functions : “ZERO”, “TARE”, “CLEAR”, “PEAK”, “ACCUMULATE”,“HOLD”, “Unit Change”, “Voltage Check” and “Power OFF”.4 local mechanical keys u:“ON/OFF”, “ZERO”, “PEAK” and “Unit Change”. low battery warning
Main Technical Data:
Display: |
25mm (1’’) 5digits LCD |
Power On Zero Range: |
20% F.S. |
Manual Zero Range: |
4% F.S. |
Tare Range: |
20% F.S. |
Stable Time: |
≤10seconds; |
Overload Indication: |
100% F.S. + 9e |
Max. Safety Load: |
125% F.S. |
Ultimate Load: |
400% F.S. |
Battery Life: |
≥40 hours |
Battery Type: |
“LR6(AA)”size alkaline batteries. 1.5V*3 |
Operating Temp.: |
- 10°C ~ + 40°C |
Operating Humidity: |
≤85% RH under 20°C |
Remote Controller Distance: |
Min. 15m |
Battery Of Remote Controller: |
7AAA battery, 1.5V×2 |
Specification:
Model |
Max. Capacity(Kg) |
Min. Weigh(Kg) |
Division(Kg) |
CS-SW6R-01 |
1000 |
10 |
0.5 |
CS-SW6R-02 |
2000 |
20 |
1 |
CS-SW6R-03 |
3000 |
20 |
1 |
CS-SW6R-05 |
5000 |
40 |
2 |
CS-SW6R-10 |
10000 |
100 |
5 |
CS-SW6R15 |
15000 |
100 |
5 |
CS-SW6R-20 |
20000 |
200 |
10 |
CS-SW6R-30 |
30000 |
200 |
10 |
CS-SW6R-50 |
50000 |
400 |
20 |
CS-SW6R-100 |
100000 |
1000 |
50 |
CS-SW6R-200 |
200000 |
2000 |
100 |
CS-SW6R-250 |
250000 |
3000 |
100 |
CS-SW6R-300 |
300000 |
3000 |
200 |
CS-SW6R-500 |
500000 |
3000 |
200 |
