CA130 Parallel Microcomputer Elevator Control SystemElevator Parts
Lift Accessories

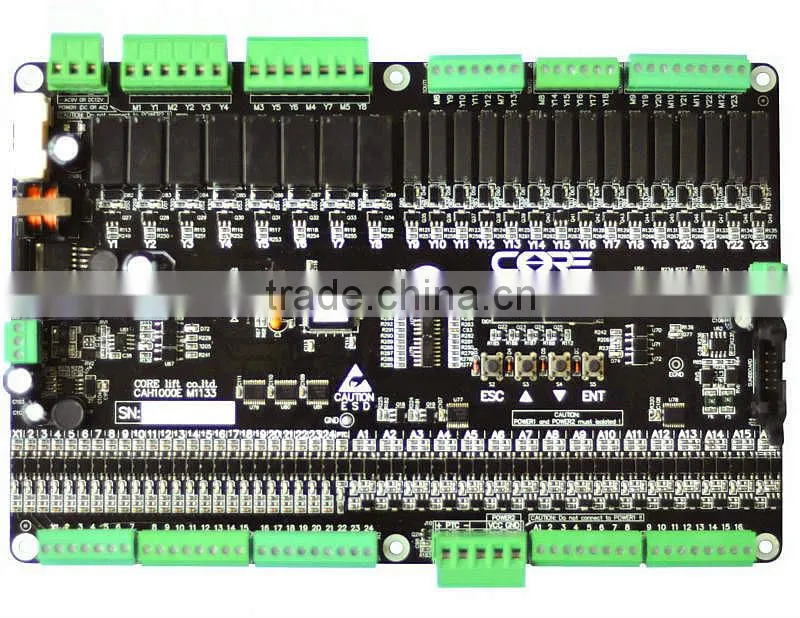

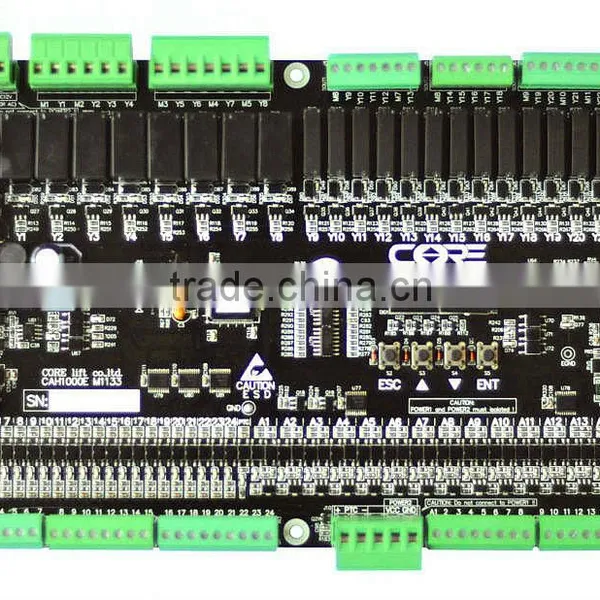

CA130 Parallel Microcomputer Elevator Control System
Features:
1.CPU with 32 bit ARM control chip, with watchdog,can monitor working status of CUP freely for security.
2.Suitable for elevator of 2~6 floors (full collective) or 2~8 floors (single collective), can add 2pcs extension board for more floors.
3.Suitable for elevator of single speed, 2 speed, or hydraulic type,with reserve for VVVF updating.
4.Main board self -powered(AC11V or DC12V) and peropheral power supply (DC24V) are completely separated to improve stability.
5.Binary code display mode,can be updated to decimal and gray code.
6.Suitable for motor hoist,traction machine,winch,hydraulic lifting platform.
7.Suitable for auto door,manual door.
8.Bistable switch with magnet control is used for deceleration and leveling,easy to install and adjust.
9.Function modularized,easy to set.Simple parameter setting,input/output ports can be modified.
10.Function of limiting running time and running frequency.
11.With error detect and error record.
12.With reserve for duplex/group control connection port.
13.Scan and dispose all ports each 2mS(500t/s),to make sure all signal response without delay.
14.With buzzer built -in board,it will buzz when pressing button on the board.
