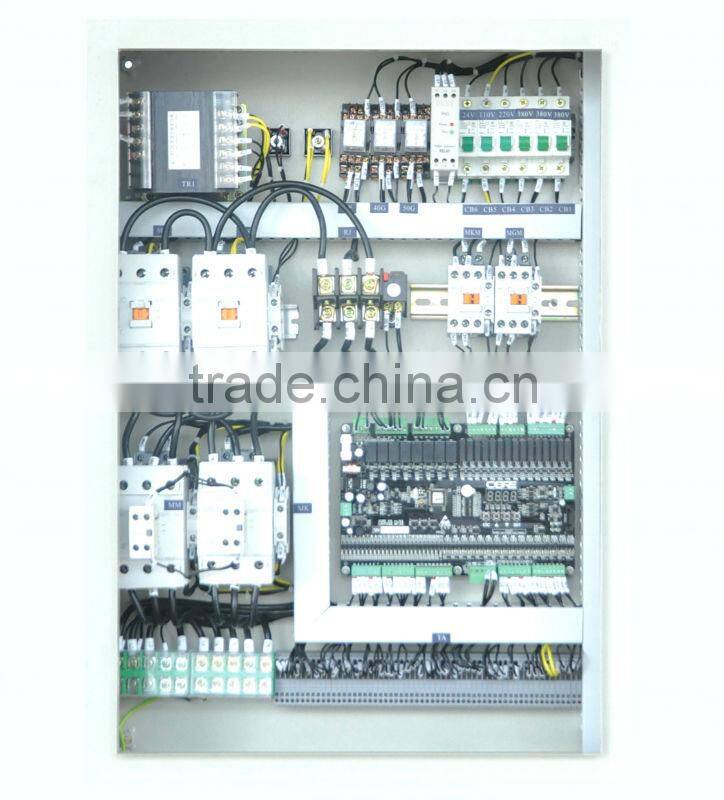

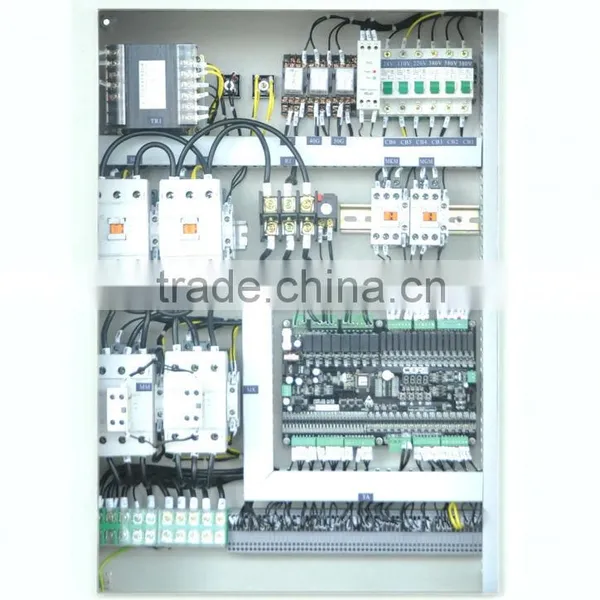

CGT101 Elevator Parallel Microcomputer control cabinet

CGT101 Elevator Parallel Microcomputer control cabinet

CGT101 Microcomputer control cabinet is suitable for elevator with auto door,manual door with cam.Running mode like up collective,down collective and full collective can be selected by parameter setting,It supports 2 speed,single speed,VVVF drive by using only 1pc bistable switch to complete floor number counting,and information of acceleration & deceleration switches.With flexibility to freely define input/output ports,it can change to other port if error occurs to any port and make sure normal running of elevator.

Features:

Suitable for elevator of 2~6 floors(full collective) or 2~8 floors(single collective),can add 2pcs extension board for more floors.

Suitable for elevator of single speed,2 speed,or hydraulic type,with reserve for VVVF updating.

Suitable for auto door,manual door with CAM

Bistable switch with magnet control is used for deceleration and leveling,easy to install and adjust.

Function modularized,easy to set.

Simple parameter setting,input/output ports can be modified.

With error detect and error record.

With reserve for duplex/group control connection port.

Rated speed: ≤0.5m/s

Rated floor: 6F(16F with extension board)

Rated capacity:100KG~3000KG

Power requirement:3phase AC220V ±7% or single phase AC110V ±7% 50/60HZ

                              3phase AC380V ±7% or single phase AC220V ±7% 50/60HZ

Safety standard:GB7588-2009 EN81-1

Outline Dimension:500*190*700mm(L*W*H)
