Help CenterHT-C-5S3-A3 Card Laminator
Related Products
Specifications
Laminator area: A3 sizeModel no.: HT-C-5S3-A3
Usage: equipment for lamination cards

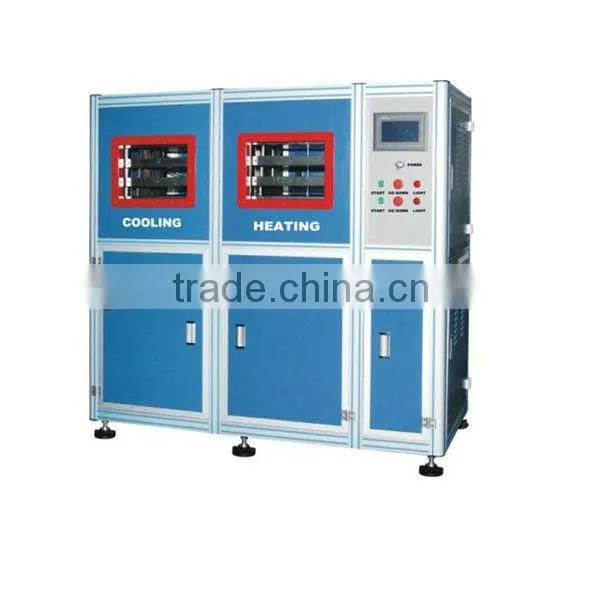

HT-C-5S3-A3 RFID Contactless Smart Card Laminating Machine
Laminating professional machine is the high efficiency equipment was made for professional manufacturer of IC,ID inlay. It is low wastage rate , easy to operate effectively. As the professional plastic laminator machine it also can satisfy the PVC card company and PVC card factory enough to produce the second Chinese generation Identification cards and good quality certificate cards,banking cards,one card solution for bus ,high way,social insurance card and so on. It with simple man-machine screen,easy to operate,with Italy international standard oil cylinder,balance pressure,low noise and small vibration. Heating lamination plates are made of ductile iron, keep it never distortion.It is Suitable for laminating and processing all kinds of plastic cards (special for contactless IC card laminating and processing ). Precision producing,whole sealed and beautiful outlook ,it is the best choice for the standard workshop.
Lamination Area usual 350*520mm or any other size in your order
Lamination Opening 3 openings for heating, 3 openings for cooling
Pressure Method oil hydraulic pressure system, 2units pressure module
Control Method PLC and Touch Screen
Pressure Range 0-16MPa ± 0.1MPa 0-32Tons
Heating Method electric power (imported heating elements) 4units temperature module stalled proportion integration differentiation program
Cooling Method automatic chiller inside machine ( environmental protection )
Working Efficiency 180pcs A3+ sheets per hour
Input Voltage 220/380V 50/60Hz
Dimension 1750mm*1050mm*1650mm
Net/Gross Weight 2150KGS/2350KGS
