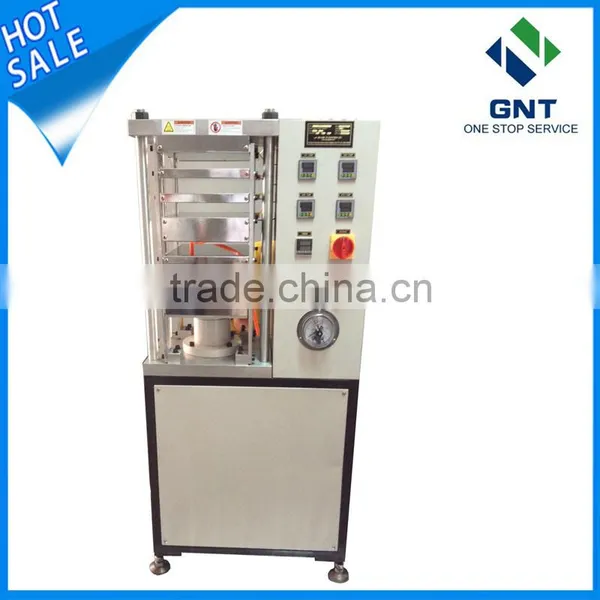

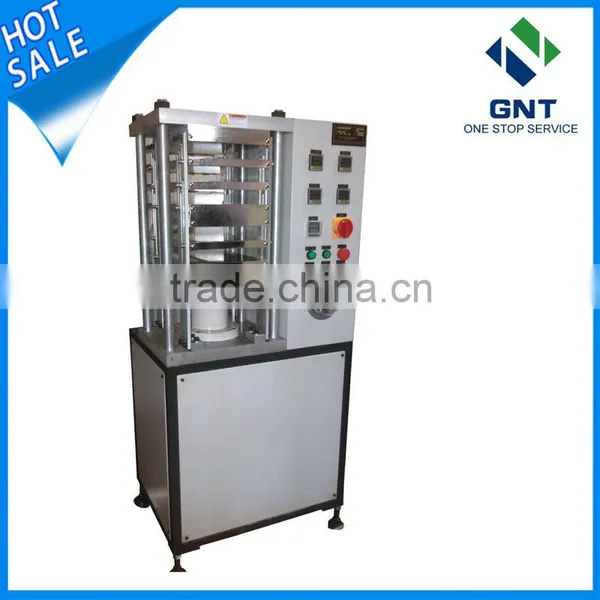

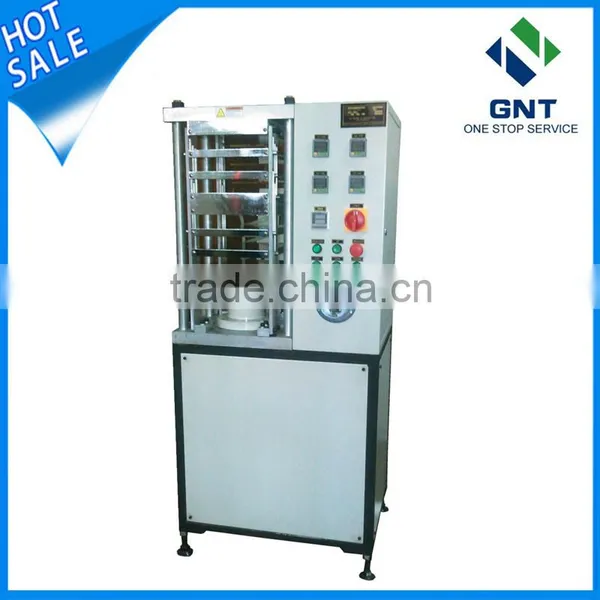

Help CenterA4 PLASTIC CARD LAMINATING MACHINES YCY-115F2
Related Products
Plastic card laminator YCY-115F2 250x350 |
|
Applicable material |
Plastic sheets (PVC, ABS, PETG, Teslin, paper) |
Material layout |
A4 2x5 |
Laminating board material |
No.45 Steel |
Laminating board QTY. |
Single tower/4x2, 4 heating+4 cooling |
Opening QTY. |
|
Laminating board size |
250x350mm |
Daylight(opening) space |
40mm |
Max. layers in each opening |
15 layers |
Work pressure |
2-15MPa adjustable |
Pressure precision |
±1.0MPa |
Heating mode |
Electrical heating |
Cooling mode |
Water cycle cooling |
Cool water container |
Water container 50L+ |
Heat temperature |
≤200℃ |
Temp. precision |
±2℃ |
Cylinder No. & diameter |
1x100mm |
Cylinder travel |
260mm |
Oil tank volume |
35 L |
Control method |
Normal electric control: Temperature controller, relay, pressure gauge |
Power supply |
AC220V 50/60Hz single phase 3 wires |
Power |
6.3kW |
Laminate time for one cycle |
10-20min |
Productivity |
1200 cards/hr |
Size / Packing size |
0.85x0.62x1.72m |
N.Weight/ G.Weight |
320 kg/380 kg |
