PADDLE WHEEL AERATOR
MODEL NO.NR-SC112
Typical Feature:
a.SUPER HIGH EFFICENCY:Strong currents,Fast dissolving oxygen.
b.COST EFFECTIVE:Energy-saving, long service life ,easy maintenance.
c.MULTI-FUNCTIONAL: Suitable for shrimp,eel, crab and all types of breeding and algae cultivation.
Technical Parameters:
Model No. |
NR-SC112 |
NR-SC114 |
NR-SC116 |
NR-SC118 |
Horse Power |
1HP |
2HP |
2.5HP |
3HP |
Voltage |
220v/380v |
220v/380v |
220v/380v |
220v/380 |
Electric phase |
3*50HZ-60HZ |
3*50HZ-60HZ |
3*50HZ-60HZ |
3*50HZ-60HZ |
Impellers |
2 |
4 |
6 |
8 |
HDPE float |
2 |
4 |
6 |
8 |
Reducer |
Gear style |
Gear style |
Gear style |
Gear style |
Oxygen transfer capacity (kg/h) |
≥1.3 |
≥1.9 |
≥2.2 |
≥2.35 |
Loading aera(Acre) |
1-1.2 |
1-1.7 |
1.3-2.0 |
1.5-2.5 |
Noise dB(A) |
≤75 |
≤80 |
≤80 |
≤80 |
Notice:we can produce different kinds of aerators according to the needs of customers.
Primary Parts
Outstanding advantage:
1.Arcuate bevel-gear instead of gear worm is adopted for reducer,energy-saving and high-efficient,saving over 20% energy than traditional models.
2.Arcuate bevel-gear is made of chromium-manganese-titanium alloyed steel with carbonitriding on the the surface,to achieve high rigidity and long life span.
3.Mechanical seal is used to ensure no oil leak pollution.
4.Protector inside is available to avoid moter being burnt accidentally.

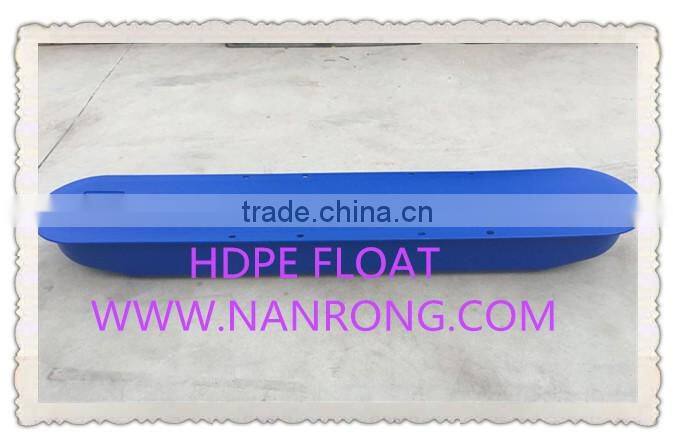

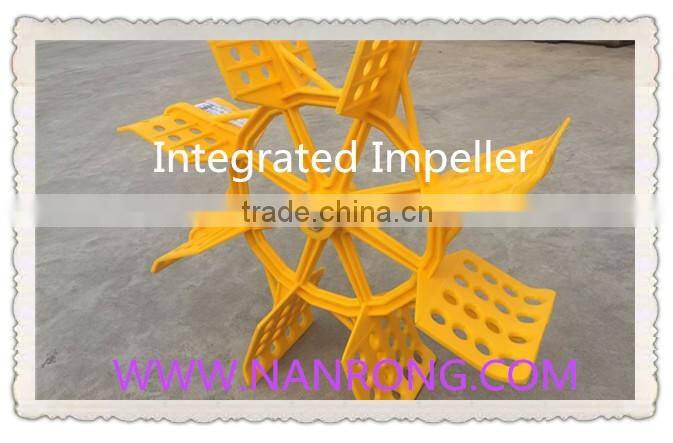

5.PE float,nylon impeller,stainless steel shaft and frame are available.
COMPANY PROFILE
Nan Rong was founded 1983 in Taiwan and has since then been involved in fish and shrimp site evaluations, hatchery constructions ,pond constructions,farm integration, management, feed mill design and operation, feed formulation, processing plant desigh and operation.
With a very comprehensive familiarity of the industry, NanRong's approach is very simple-clients are provided with the newest and most appropriate technology,experitise and comprehensive project management services for start-up and developing aquaculture enterprises to suite their specific needs wherever in the world.
Clients working with Nan Rong will receive the benefit of over30 years' combined experience in the aquaculture industry. NanRong's specialized staff is well trained with key personnel taking a personal hand in all client deliverables.
Contracting the right technical expertise from the beginning of a project's life is an investment that pays for itself.
