About UHMW-PE/ HDPE:
Ultra-high molecular weight polyethylene(UHMWPE) has amusing performance.
It retains all excellent performance of ultra-high molecular weight polyethylene, wear-resistant is 7 time than steel, and 3 times than nylon.
It has good self-lubricating, shock, eliminate noise & vibration, anti-adhesive, anti-corrosion, and anti-aging properties.
Its light weight is only 1/7 of manganese steel.
So it’s the best material for bulk storage material and transport equipment lining, such as silos and launder.
It’s widely used in the industries of power, steel mills, coal mines, and so on.
Applications of HDPE/ UHMW PE:
This high-wear plates is adapt to install in various environmental conditions, it can be designed according to user requirements, which is ease to install and maintain. For example, installing hopper, chute under coal mine and metallurgical industry, can completely resolve bonding and sealing problems during transportation process, to achieve safe and efficient production.
Advantages of UHMWPE/ HDPE:
1. Best shock resistance even in low temperature.
2. Low frictional factor, and well sliding bearing material
3. Lubricity( no caking, in adhesion)
4. Best chemical corrosion resistance and stress craze resistance
5. Excellent machinery process ability
6. Lowest water absorption(<0.01%)
7. Paragon electric insulativity and antistatic behavior
8. Nice high energy radioactive resistance
9. Abrasive resistance which always have in thermoelectricity polymer.
10. Density is lower than other thermoplastics (< 1g/m3)
11. Long using temperature range: -269°C--90°C
Performance of good quality natural white HDPE plastic rod:
| Items | Testing Method | Unit | Result | |
| Physical Property | Density | D1505 | G/cm³ | 0.95-0.98 |
| Mechanical Property | Breaking Strength | D638 | N/cm2 | 2900 |
| Elongation @ Break | D638 | % | 350 | |
| Tensile strength @ yield | D638 | Psi | 4,600 | |
| Tensile Impact | D1822 | Fl-Ib/in | 120 | |
| Notch Impact Strength | D256 | CJ.cm/cm2 | Not Destroyed | |
| Flexural Modulus | D790 | Psi | 225,000 | |
| Hardness (Rockwell) | D747/2240 | 40-80/69 | ||
| Thermal Property | Melting Point | D2117 | ℃ | 136 |
| Vicat Softening Point | D1525 | ℃ | 134 | |
| Coefficient of Linear Thermal Expansion | D696 | In./in./oF | 6 x 10-5 | |
| Low temperature Brittleness F50 | D746 | oC | <-76 | |
| Heat Deflection Temperature @66 psi | D648 | oC | 82 | |
| Maximum Service Temperature, Air | Long Term | F | 180 | |
| oC | 82 | |||
| HDT (0.46 Mpa) | D648 | ℃ | 85 | |
| Electrical Property | Volume Resistance | D257 | SL-CM | 1017 |
| Breakdown Voltage | D149 | Kv/mm | 50 | |
| Dielectirc Constant | D150 | 2.3 | ||
| Others | Water Absorption | D570 | % | <0.01 |
| Scaling | Uneasy to scale | |||
| Flammability Rating | UL94 HB | |||
| Compliances | FDA, USDA, NSF | |||

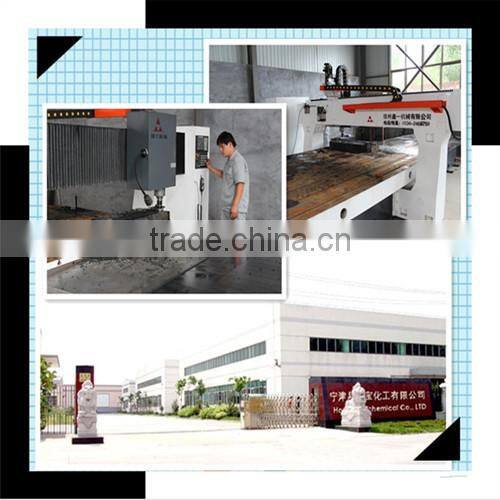

good quality natural white HDPE plastic rod Production Facility:
For More Questions, Please contact Ms.Helen. You May Got The First Time Reply!!
