Ownace Good Price High Quality US Heavy Duty Teardrop Pallet Rack
1. Item NO. OW-PR13
2. Our teardrop pallet rack is made of cold-rolled steel.
3. Teardrop pallet rack is strong structure, easy installation, safety.
4.Teardrop pallet rack has passed ISO9001 and CE certification.
5. Each level height adjustable freely.
6. OEM&ODM service are also available.
If you need customized size, please let us know the following details:
(1) Drawings of your rack system.
(2) Rack size: length,depth, height.
(3) Numbers of layer.
(4) Loading capacity of each layer.
(5) Color and quantity you want.
| Item | Detail | Option |
| Type | A. | A.Teardrop |
| Loading Capacity | Customized | 999-10000lbs/per layer |
| Surface Treatment | A. | A. Powder Coating B. Zinc Plated |
| Color | A. or B. | A. RAL Color B. Pantone Color C. Zinc |
|
Beam Size L*H |
Customized |
Length: 60'', 72'', 84'', 96'', 108'', 120'', 132'', 144'' Height: 3'', 4'', 41/2'', 5'', 51/2'', 6'' |
|
Post Size D*H |
Customized |
Depth: 24'', 36'', 42'', 48'', 60'' Height: 96'', 120'', 144'', 168'', 192'', 240'' |
| Thickness | Customized |
Beam: 14Ga, 15Ga, 16Ga Post:11Ga, 12Ga, 13Ga,14Ga |
| Other Details | 1. MOQ: 1*20' FCL(different products can be mixed). 2. Package: Standard export carton with plastic bubble film or as customer's requirement. 3. Payment: T/T, L/C, 30% as deposit, 70% before shipment. 4. Trade Terms: EXW, FOB, CIF, FCA, etc. 5. Delivery Time: 25 days after receiving the deposit. |
|
Features:
A. Single Rib Column Design.
B. Tapered Keyhole Solts.
C. Return bends on all open-back design frame members.
D. One-piece tube seamed step beams.
E. High strength tapered studs on beam connector plates.
F. Integral beam connector safety locker.
G. Quick&Easy Assembly.
H. Full range of capacities and sizes from hand-loaded bulk rack to your heaviest applications.

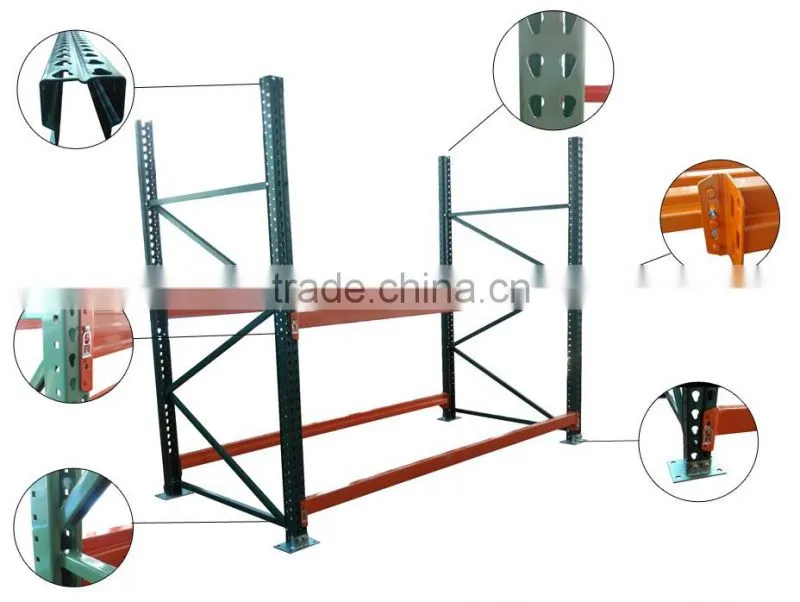

Teardrop Pallet Rack
Pallet Rack Specifications

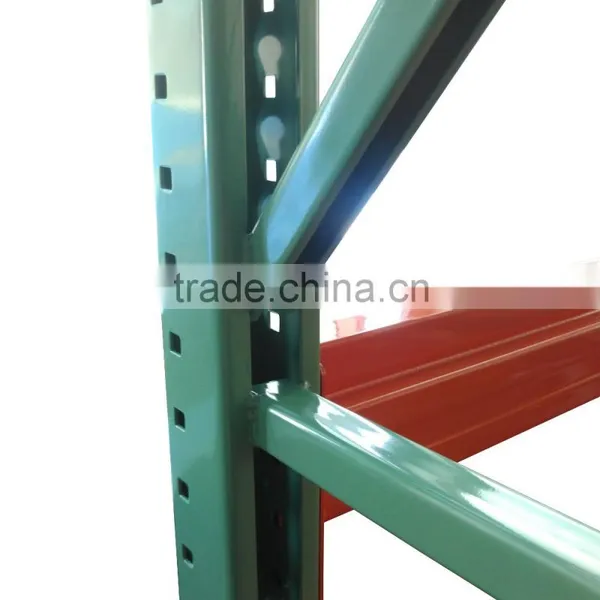

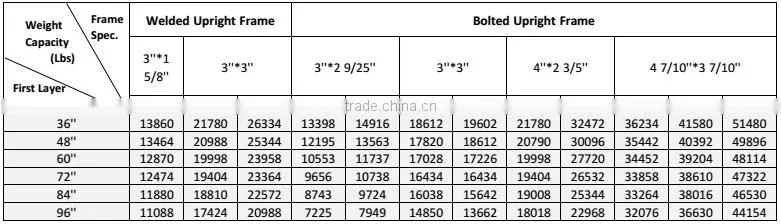

Frame

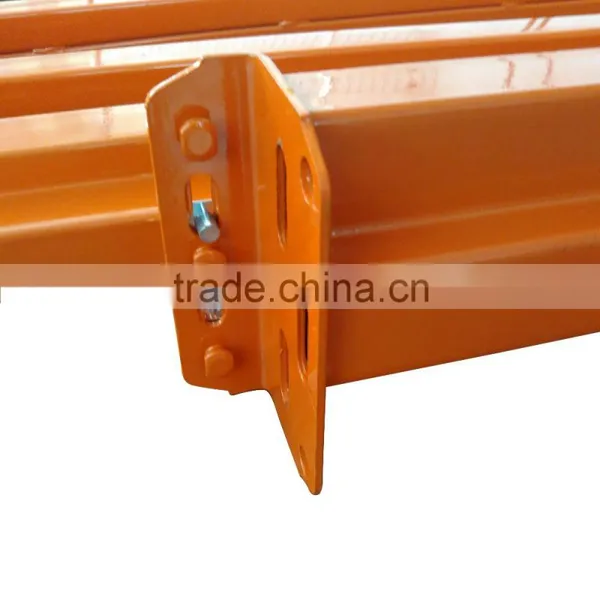

Step Beam

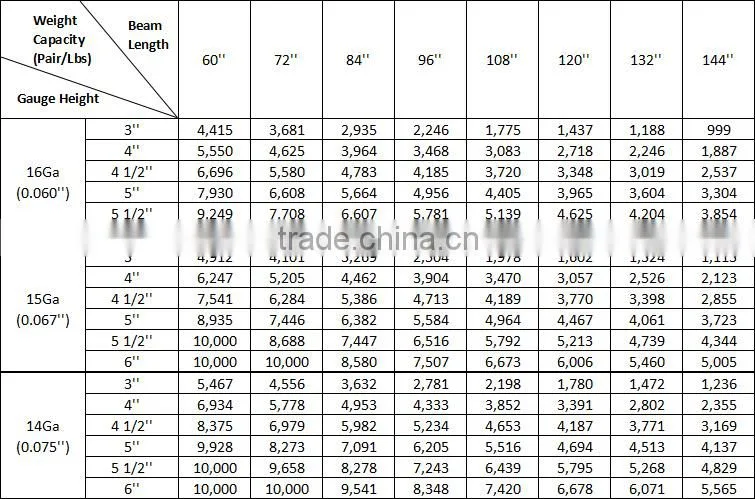

Notes:
1.Load Capacities are based on uniformly distributed product load per pair of beam.
2.Deflection is based on product load only, and is limited to L(span)/180.
3.Spans from 48’’ to 80’’ designed for 25% impact from placing 1 load per shelf.
4.Spans from 82’’ to 120’’ designed for 25% impact from placing 1 of 2 loads per shelf.
5.Spans from 122’’ to 144’’ designed for 25% impact from placing 1 of 3 loads per shelf.

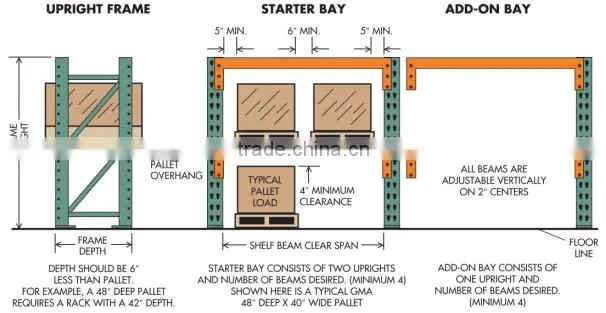

How To Order

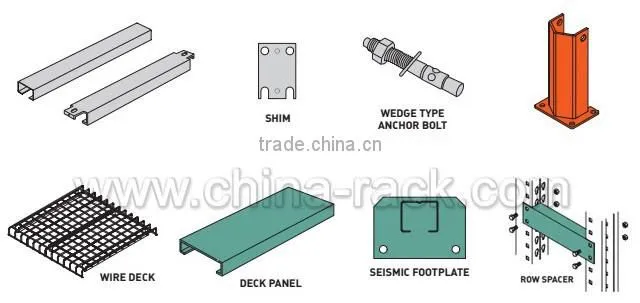

Pallet Rack Accessories
Exhibitions:
a. Global Shop 2015 Trade Show in Las Vegas, The USA.
b. C-Star 2016 International Trade Fair in Shanghai, China.
c. 2016, RetailEX Asean 2016 in Bangkok, Thaliand.
d. We will attend Global Shop, March 28-30, 2017, in Las Vegas, The USA.
Ownace is always keeping persuing to improve ourselves and become better.
