Help Center30ml Bottle Filling Machine
Related Products

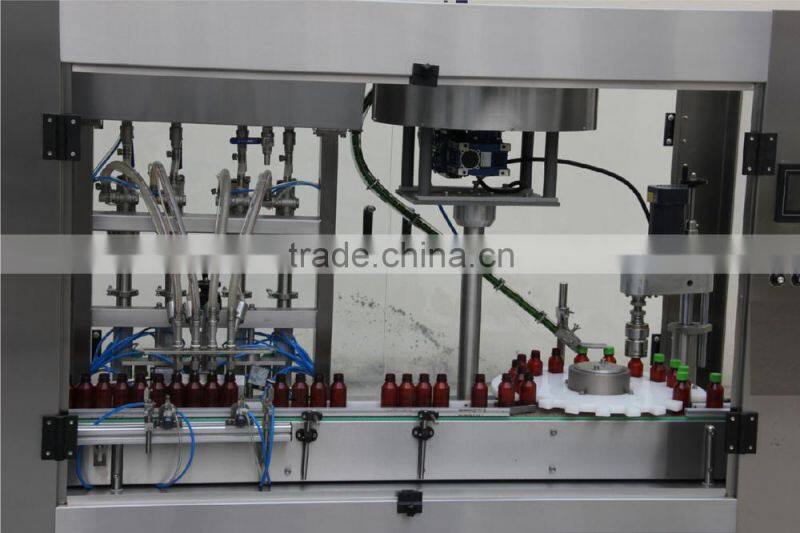

30ml bottle filling machine
suitable for liquid pack: pharmacy ,chemical ,oil ,pharmacy , liquid soap ,agrochemical and so on
why suitable :
1 :for different sizes of drum: from 5ml-100ml ,they can share on one filling machine ,no need to change spare parts
2: no dropping , there will be device make sure no dropping on drum or conveyor
3: Anti corrosive ,the material we use ,all the contact part SS 316 ,make sure machines are working good
4: foaming , we have the device which not only diving to avoide the foaming but also have some other special ways to make sure to decrease the foaming.
5: accurate, piston type accurate come to 0.05%
.
suitable for the small photos :
filling range : 5ml-100ml
capacity : 1500-2000BPH
The machine is a four-head ceramic pump liquid three-use (filling, lid-revolving and lid-rolling) machine. It uses the ceramic injection cylinder to fill, anti-corrosive, abrasion resistant, high measurement precision, and long use life-expectancy. It is widely used in the filling of the thin and viscous liquid for the industry of foodstuff, pharmacy, cosmetics and pesticide. It may be used in lid-revolving and the aluminum-lid’s rolling, one machine multi-use, it has the merits of fast filling speed, non-drop and convenient cleaning.
1. Features
1.1 Using volume ceramic pump to fill, high precision and large range of adjusting volume.
1.2 The ceramic pump filling system doesn’t adsorb the medicine, its chemical stability good, high temperature resistant, anti-corrosive, abrasion resistant, long use life-expectancy, has a unique advantage for filling some corrosive medicine liquid.
1.3 Automatically stopping the machine as lacking bottle and toppling bottle, not to fill as lacking bottle.
1.4 The filling system set the water-shrinking function, non-drop.
1.5 Suiting for the filling of different viscous liquid.
1.6 The filling needle-head descends into the bottle bottom to fill. Slowly goes up, so that preventing to bubble.
1.7 The magnetic moment lid-revolving head, its degree of tightness may be adjusted at will.

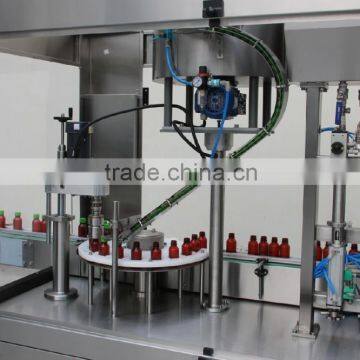

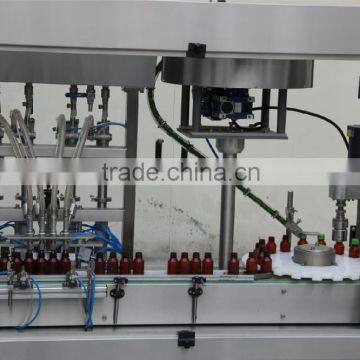

Machine photos:
Technological parameters
1 Sizes 5-100ml
2 Measurement error ±1%
3 Production capacity 1500-2000bottles/hour
4 Acceptance rate of lid-revolving 99%
5 Machine power 1.2kw
6 Voltage 380V
7 Contour sizes 2500×850×1600mm
8 Net weight 600kg
1 |
Speed |
1500bottles/h |
2 |
Filling range |
50~200ml |
3 |
Measurement precision |
±1% |
4 |
Working power |
220VAC |
5 |
Air pressure |
6~7kg/cm² |
6 |
Air consumpation |
1m³/min |
7 |
Power rate |
0.8kw |
8 |
Other devices power rate |
7.5kw(air compressor) |
9 |
Net weight |
2520Kg |
10 |
Counter size |
2400X1500X2500mm |
configuration
No. |
ITEM |
SUPPLIER |
Brand |
1 |
Touch screen |
Taiwan |
WEINVEIW |
2 |
PLC |
Japan |
Mitsubishi |
3 |
Photo sensor for bottles |
Japan |
OPTEX |
4 |
solenoid valve |
Taiwan |
SHAKO |
5 |
Level button |
Mexico |
JOHNSON CONTROLS |
6 |
angle seat Valve |
Jointed |
BURKERT |
7 |
Diving cylinder |
Taiwan |
AIRTAC |
8 |
Power button |
France |
Schneider |
9 |
Button |
France |
Schneider |
10 |
frequency converter |
France |
Schneider |
11 |
Magnetic switch |
Taiwan |
AIRTAC |
12 |
oil-water separator |
Taiwan |
SHAKO |
13 |
Speed reducer |
China |
Jiao xing |
14 |
Relay |
Japan |
Omron |
15 |
Piston |
Taiwan |
Airtac |
different way to take photos of machine:
1. Installation, training and start-up by Our Factory Service Engineer is available.
2. With ZHONGTAI’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us.
3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine, if our engineers stay 7days, it’s free to charge salary. But if more 7 days, customer pays our engineers one people one day usd50/person.
4. The customer pays the travelling expenses, food, and accommodation. We welcome clients send their workers to our company study. It's free to study machine on our factory, Our Company is charged with the fee of food and accommodation. Our machines are very easy to operate and manage. Worker can operate and manage these machines after they study three days. The number of persons training is as customer requirement.
The manufacturer shall supply qualified products, if some problem of quality found within one-year delivery. The manufacturer is responsible for repairing or replace defeats ones. This assurance does not including the quick-wear part and damage due to the improper operation that regulated in instruction manual.
packed wooden case (no smoked, but suitable for long distance transports.)
our package photos
Jiangsu ZhongTai Packing Machinery Co., Ltd
contact : Fiona Ding
Address: No.222, Nan Huan Erlu, Jintan City, Jiangsu P.R. China
Tel: +86 136 8527 0809
Fax: +86-519-82113618
P, C: 213200
Website:
