soy sauce filling line

soy sauce filling line

suitable for liquid packing : soy sauce ,vinegar ,fish sauce and so on ...

why suitable :

1 :for different bottle shapes: round ,flat and so on for different kinds shapes of bottles ,they can share on one filling machine ,no need to change spare parts

2: no dropping , the filling machine we have the copy right to make sure there is no dropping after filling ( if any dropping ,soy sauce will make the bottles dirty )

3: Anti corrosive ,soy sauce is corrosive ,even stainless steel after long time use will be corrosive ,the material we use ,all the contact part SS 316L ,make sure machines are working good.

4: CIP round liquid tank , as for food ,the standard is higher than others ,can not with angle ,and we have the tank is meet the standard requirement of CIP

5: foaming , we have the device which not only diving to avoide the foaming but also have some other special ways to make sure to decrease the foaming.

Suitable for the bottles photos :

filling range : 50ml -1000ml

                        1L -5L

capacity : 100ml    5000BPH

                  500ml    4000BPH

                 1000ml   35000BPH

 for soy sauce and vinegar such kind of foaming liquid filling ,without dropping ,with accurate filling level

with diving function to decrease foaming during filling

with two kinds of filling speed ,fast filling and slow filling

1,Advanced design

   1.1 The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes.

   1.2 Short filling circle, high production capacity.

   1.3 Changing filling circle, high production capacity.

   1.4 User may choose the filling volume and decide the filling heads per own production capacity.

   1.5 The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.

   1.6 Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

2. Unique filling way

   2.1 Selecting straight bottle-feeding and bottle-discharging in group, make the filling function extend, the vessels of all kinds of shape are got effective filling.

   2.2 Using the world advanced gas filling valve, ensure the filling process non-drop and non-drool.

   2.3 Stronger PLC software support, may realize the ideal filling operation.

   2.4 Friendly person-machine interface, all operations are completed on the touching color screen.

3. Accurate measurement control

   3.1 Using fixed sprue parameter to control the filling time realizing the filling of the different measurements.

   3.2 The precision time of the pneumatic valve filling may set to 0.01 second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.

   3.3 Each filling-head’s measurement may be individually adjusted to realize the same filling measurement.

   3.4 The machine set such function: having counting program of bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.

   3.5 More or less of the filling volume, may initially adjust to the needed filling volume, then micro adjust, can get the ideal filling measurement precision.

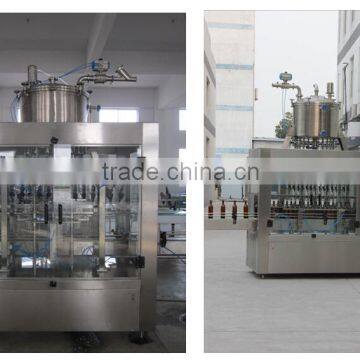

machine photos:

Technological parameters

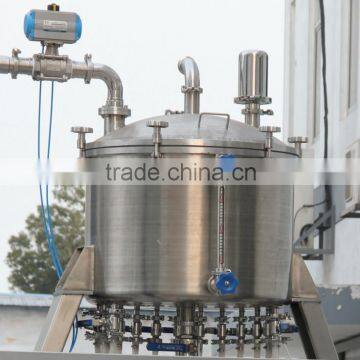

special parts of filling machine for soy sauce:

some electrical parts on machine use photos :

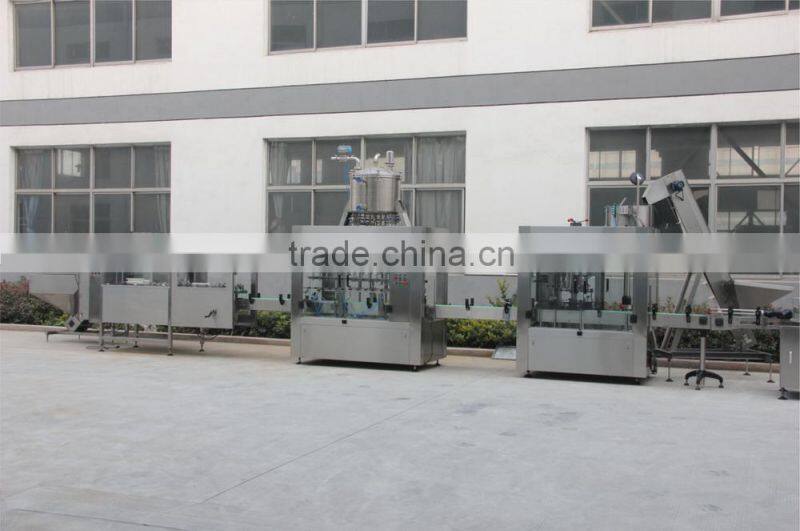

different way to take photos of machine:
