CORN OIL filling machine line

FOB Price

USD $1 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Shanghai seaport
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical	Packaging Type:	Barrel, Bottles, Cans
Packaging Material:	Glass, Metal, Plastic	Automatic Grade:	Automatic	Driven Type:	Pneumatic
Voltage:	AC380V 50/60HZ	Power:	2.5KW	Place of Origin:	Jiangsu, China
Brand Name:	ZHONG TAI	Model Number:	ZSP-16A	Dimension(LWH):	2400mm1300mm2150mm
Weight:	1200KG	Certification:	SGS CE ISO	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

CORN OIL filling machine line

suitable for oil liquid packing : vegetable oil ,lube oil ,edible oil ,sunflower oil and so on.....

why suitable :

1 :for different bottle shapes: round ,flat and so on for different kinds shapes of bottles ,they can share on one filling machine ,no need to change spare parts

2: no dropping ,inside the filling heads ,after filling make to be vaccum if not touch by hand on filling head will no drop ,second is there is device ,after filling ,device will do the collect under filling heads ,two ways to make sure no dropping .

3 :machine material ,the material we use ,all the contact part SS 316L ,make sure machines are working good

4: foaming , we have the device which not only diving to avoide the foaming but also have some other special ways to make sure to decrease the foaming.

5: accurate, every filling heads with one load cell to control the weight ,will not be influenced by the temputer ,keep the weight the same

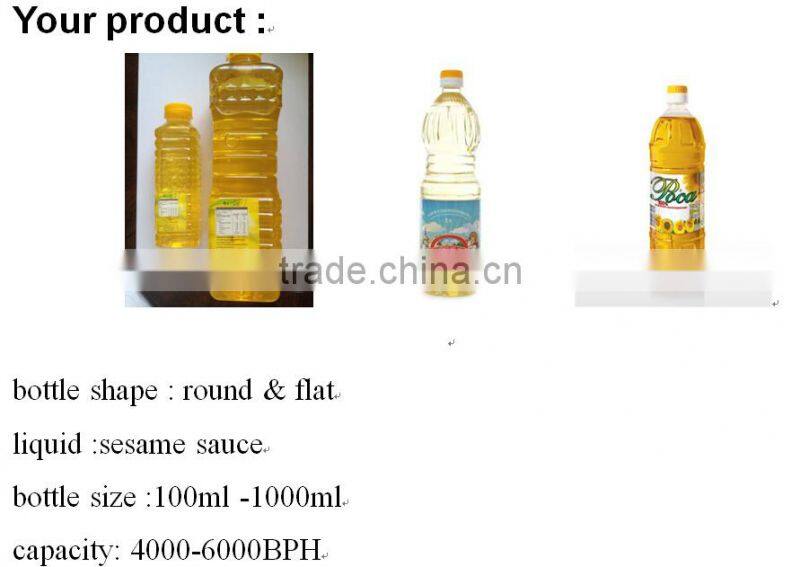

suitable for the bottles photos :

Product Description

Oil filling machine

Type: ZSP-16A ( With 16 filling heads )

This series fiiling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action. Use servo mtor control volume more accurate, and filling speed can variable, a slow speed can be applied when close the target filling volume to prevent liquid spill out.

bottle shape: round &flat bottles

filling range: 100ml-1000ml

liquid: viscous liquid such as shampoo, dishwasher, oil, chemicals, detergent and so on ...

capacity :4000-6000BPH

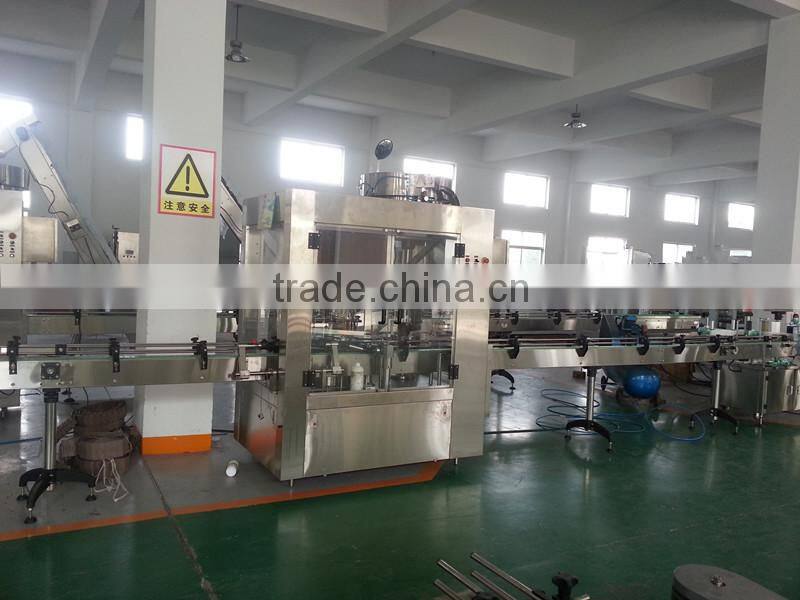

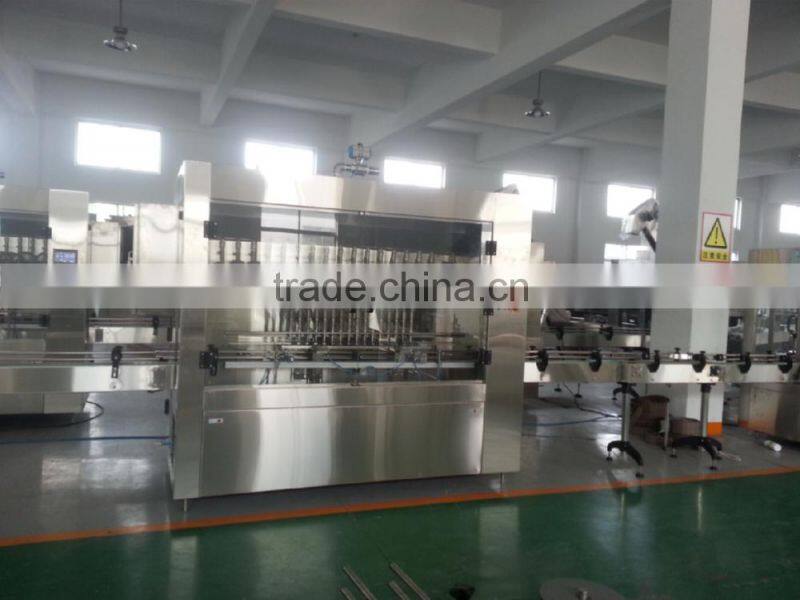

Machine Photos:

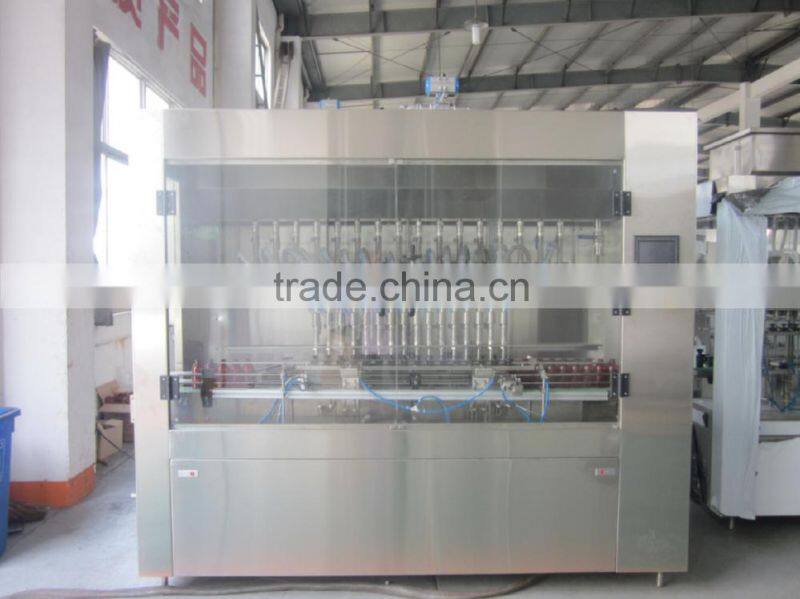

Filling machine:

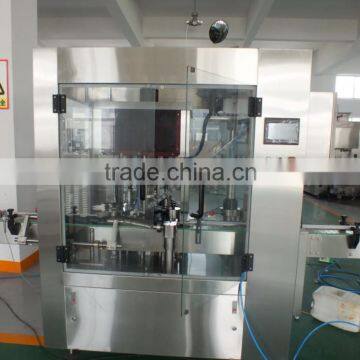

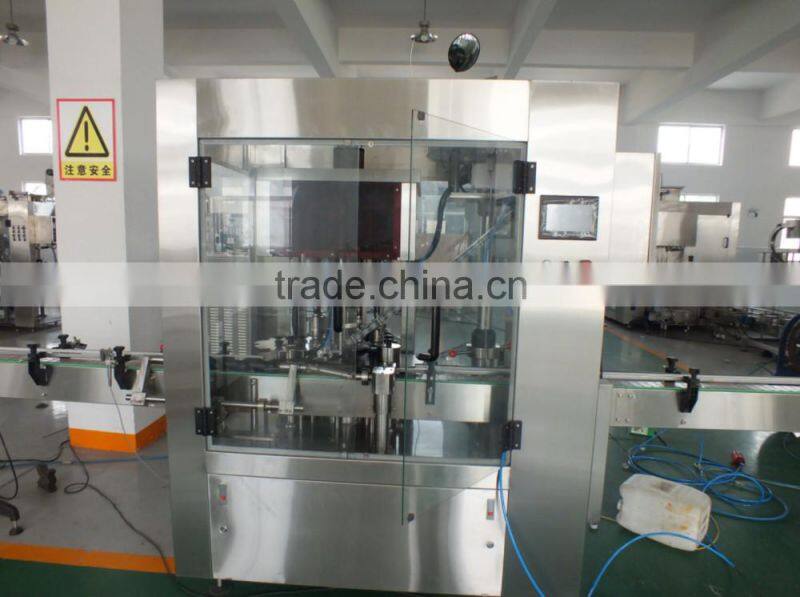

capping machine:

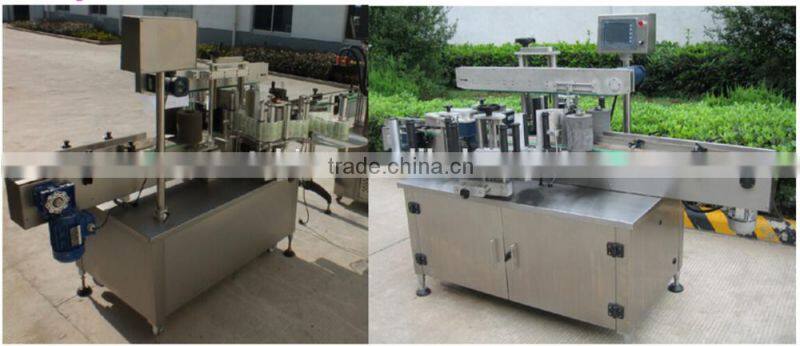

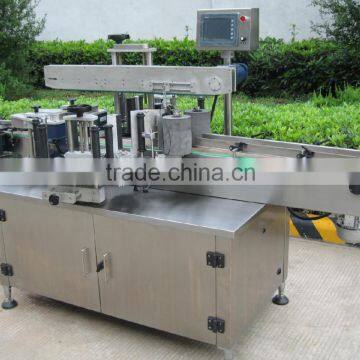

Labeling machine:

Technological parameters

1	Speed	800-2000bottles/h
2	Filling range	1000~5000ml
3	Measurement precision	±1%
4	Working power	220VAC
5	Air pressure	6~7kg/cm²
6	Air consumpation	1m³/min
7	Power rate	0.8kw
8	Other devices power rate	7.5kw(air compressor)
9	Net weight	2520Kg
10	Counter size	2400X1500X2500mm

configuration

NO.	ITEM	SUPPLIER	Brand
1	Touch screen	Taiwan	WEINVEIW
2	PLC	Japan	Mitsubishi
3	Photo sensor for bottles	Japan	OPTEX
4	solenoid valve	Taiwan	SHAKO
5	Level button	Mexico	JOHNSON CONTROLS
6	angle seat Valve	Jointed	BURKERT
7	Diving cylinder	Taiwan	AIRTAC
8	Power button	France	Schneider
9	Button	France	Schneider
10	frequency converter	France	Schneider
11	Magnetic switch	Taiwan	AIRTAC
12	oil-water separator	Taiwan	SHAKO
13	Speed reducer	China	Jiao xing
14	Relay	Japan	Omron
15	Servo motor	Japan	Panasonic

Packaging & Shipping

Packed wooden case ( no smoked, but suitable for long distance transports )

Our Services

1. Installation, training and start-up by Our Factory Service Engineer is available.

2. With ZHONGTAI’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us.

3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine, if our engineers stay 7days, it’s free to charge salary. But if more 7 days, customer pays our engineers one people one day usd50/person.

4. The customer pays the travelling expenses, food, and accommodation. We welcome clients send their workers to our company study. It's free to study machine on our factory, Our Company is charged with the fee of food and accommodation. Our machines are very easy to operate and manage. Worker can operate and manage these machines after they study three days. The number of persons training is as customer requirement.

Warranty

The manufacturer shall supply qualified products, if some problem of quality found within one-year delivery. The manufacturer is responsible for repairing or replace defeats ones. This assurance does not including the quick-wear part and damage due to the improper operation that regulated in instruction manual.
