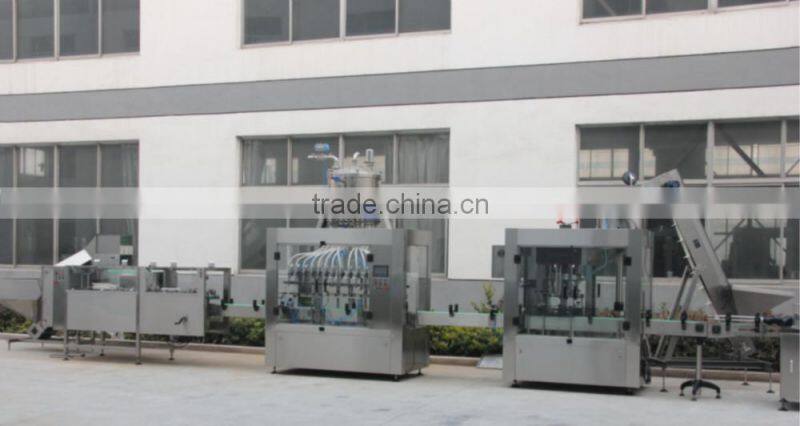

oyster sauce filling machine
suitable for liquid packing : soy sauce ,vinegar ,fish sauce and so on ...
why suitable :
1 :for different bottle shapes: round ,flat and so on for different kinds shapes of bottles ,they can share on one filling machine ,no need to change spare parts
2: no dropping , the filling machine we have the copy right to make sure there is no dropping after filling ( if any dropping ,soy sauce will make the bottles dirty )
3: Anti corrosive ,soy sauce is corrosive ,even stainless steel after long time use will be corrosive ,the material we use ,all the contact part SS 316L ,make sure machines are working good.
4: CIP round liquid tank , as for food ,the standard is higher than others ,can not with angle ,and we have the tank is meet the standard requirement of CIP
5: foaming , we have the device which not only diving to avoide the foaming but also have some other special ways to make sure to decrease the foaming.
Suitable for the bottles photos :
filling range : 50ml -1000ml
1L -5L
capacity : 100ml 5000BPH
500ml 4000BPH
1000ml 35000BPH
The TYPE ZGP-16B VERTICAL FILLER is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action. The machine is especially suitable for foodstuff. For example: white spirit, soy sauce, vinegar, seasoning, vegetable oil, syrup, mineral water, edible liquid as well as chemical liquid. It has accurate filling measurement; there is not bubble and drop. It suits for the filling of all kinds of bottle (including irregular bottle) ranging from 25 to 1000 ml.
for soy sauce and vinegar such kind of foaming liquid filling ,without dropping ,with accurate filling level
with diving function to decrease foaming during filling
with two kinds of filling speed ,fast filling and slow filling
1,Advanced design
1.1 The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes.
1.2 Short filling circle, high production capacity.
1.3 Changing filling circle, high production capacity.
1.4 User may choose the filling volume and decide the filling heads per own production capacity.
1.5 The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.
1.6 Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.
2. Unique filling way
2.1 Selecting straight bottle-feeding and bottle-discharging in group, make the filling function extend, the vessels of all kinds of shape are got effective filling.
2.2 Using the world advanced gas filling valve, ensure the filling process non-drop and non-drool.
2.3 Stronger PLC software support, may realize the ideal filling operation.
2.4 Friendly person-machine interface, all operations are completed on the touching color screen.
3. Accurate measurement control
3.1 Using fixed sprue parameter to control the filling time realizing the filling of the different measurements.
3.2 The precision time of the pneumatic valve filling may set to 0.01 second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.
3.3 Each filling-head’s measurement may be individually adjusted to realize the same filling measurement.
3.4 The machine set such function: having counting program of bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.
3.5 More or less of the filling volume, may initially adjust to the needed filling volume, then micro adjust, can get the ideal filling measurement precision.

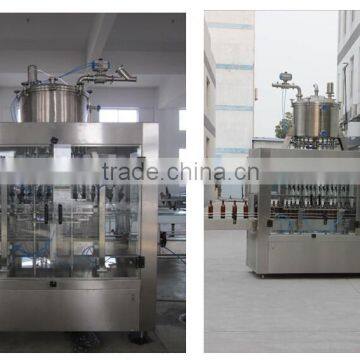

machine photos:
Technological parameters
1 |
Speed |
4500-3000 bottles/h |
2 |
Filling range |
100-1000ml |
3 |
Measurement precision |
±1% |
4 |
Working power |
220VAC |
5 |
Air pressure |
6-7kg/cm² |
6 |
Air consumpation |
0.5m³/minute |
7 |
Power rate |
0.8kw |
8 |
Other devices power rate |
5.5kw(aircompressor) |
9 |
Net weight |
650kg |
10 |
Counter size |
2200×870×1900mm |
special parts of filling machine for soy sauce:
some electrical parts on machine use photos :

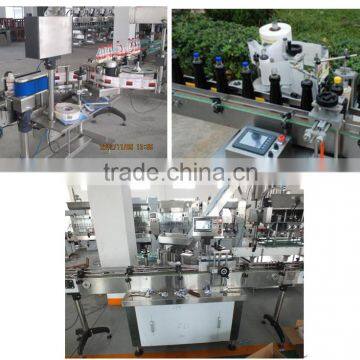

different way to take photos of machine:
1. Installation, training and start-up by Our Factory Service Engineer is available.
2. With ZHONGTAI’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us.
3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine, if our engineers stay 7days, it’s free to charge salary. But if more 7 days, customer pays our engineers one people one day usd50/person.
4. The customer pays the travelling expenses, food, and accommodation. We welcome clients send their workers to our company study. It's free to study machine on our factory, Our Company is charged with the fee of food and accommodation. Our machines are very easy to operate and manage. Worker can operate and manage these machines after they study three days. The number of persons training is as customer requirement.
The manufacturer shall supply qualified products, if some problem of quality found within one-year delivery. The manufacturer is responsible for repairing or replace defeats ones. This assurance does not including the quick-wear part and damage due to the improper operation that regulated in instruction manual.
packed wooden case (no smoked, but suitable for long distance transports.)
our package photos
Jiangsu ZhongTai Packing Machinery Co., Ltd
contact : Fiona Ding
Address: No.222, Nan Huan Erlu, Jintan City, Jiangsu P.R. China
Tel: +86 136 8527 0809
Fax: +86-519-82113618
P, C: 213200
Website:
