LP-200 Automatic Bottle Unscramble is making up of bottle elevator , round plate, bottle-reject, bottle-arranging parts and the electrical cabinet . Put disordered bottles to the bottle elevator, through round plate, conveying belts, bottle arranging parts , then bottles can stand on the belts. This machine is characterized by the compact structure, simple operation principle, mature technique and stable movement.
Apply to the bottle diameter Φ45-Φ90mm
• Height for bottle 80-240 mm
• Production capacity 200bottles/min (Note The diameter of bottle Φ45 mm，height 80 mm 200 bottles/min The diameter of bottleΦ90 mm，height240 mm 90 bottles/min )
• Air pressure 0.5-0.7Mpa
• Power source ～480V、50Hz
• Total power 1.5 kw
• Weight 450 kg (Bottle elevator 100kg)
• Unscrambler External dimensions 2600×1500×1500(L×W×H) mm
• Bottle elevator External dimensions 2200×1200×1900(L×W×H) mm
Main Features
2.1、Simple structure , easy operation and convenient adjustment . While the other company’s same machine are larger than us, length over 3 meters and weighted too much.
2.2、When changing different size bottle, there is no need to change model.Its applicable range is 50-1000ml bottles. You only need to adjust belt in the bottle hopper and the space of the unscrambling structure.

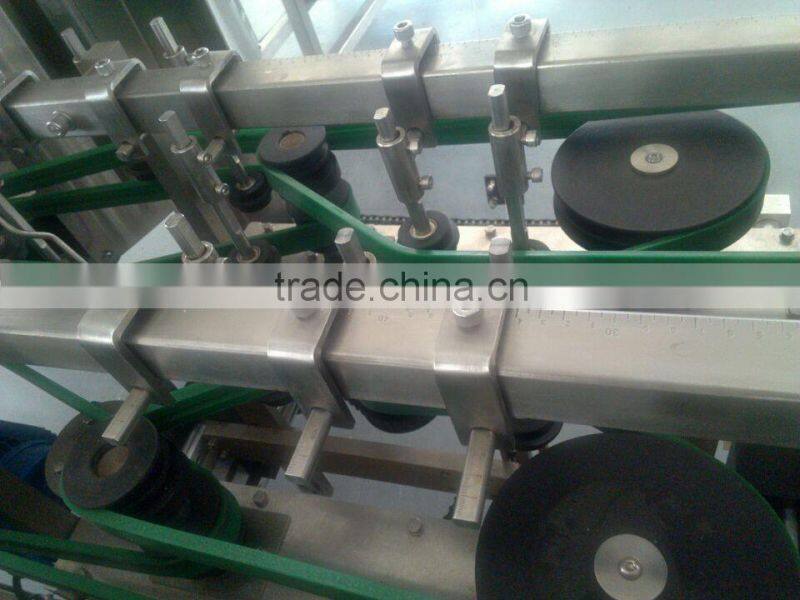

Adjust the space of the bottle unscrambling structure according to the bottle size
2.3、It adopted the US technology. Good stability and its qualified rate is 100%.
2.4、The electrical components are all imported which ensures its long service time, stability and reliability.
2.5、The whole machine is covered with organic glasses, you can open all the cover for easy adjustment.
2.6、All the organic glass cover is installed with the sensor. The machine only can start when all the organic glass cover are closed, or will stop when any of the door is open.
2.7、The connecting belt in the machine are shaped in one time, not easy to broken.
2.8、Automatic bottle elevating function, you only need to put the bottles in the bottle elevator, a sensor is installed in the rotary plate, it will automatically elevate the bottles when there is not enough bottle,and it will start when the bottles are enough consequently.
2.9、Coordination sensor, it will stop bottle unscrambling when there is jam of the other sections of the filling line, it will start again when the jam is cleared. It will have the perfect linkage with the other sections of the filling line.
1. Installation, training and start-up by Our Factory Service Engineer is available. 2. With ZHONGTAI’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us. 3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine, if our engineers stay 7days, It’s free to charge salary. But if more 7 days, customer pay our engineers one people one day usd50/person.
