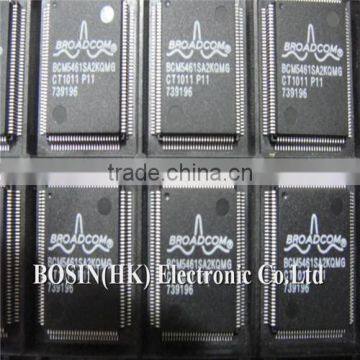

BROADCOM IC BCM5461 BCM5461SIQMG BCM5461SIQM

Name: BROADCOM IC BCM5461 BCM5461SIQMG BCM5461SIQM
Brand: BROADCOM
Availability: InStock

FOB Price

US$ 1 - 10 / Piece

10 Pieces(Min. Order)

Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	BCM5461SIQM		Type	Other, standard
Brand Name	BROADCOM		Place of Origin	Florida, United States

Product Description

Specifications

BCM5461SIQMG
BRAND:BROADCOM
D/C:14+
PACK:QFP
BRAND NEW ORIGINAL SEAL PACKAGE IN STOCK

Product Description

BCM5461SIQM

NEW ORIGINAL PARTS IN STOCK

10/100/1000BASE-T GIGABIT COPPER TRANSCEIVER

FE A T UR E S

Fully-integrated 10BASE-T/100BASE-TX/1000BASE-T Gigabit

Ethernet transceiver

•

GMII, RGMII, SGMII, SerDes, RTBI and MII MAC Interface options

•

Line-side copper and fiber interfaces

•

On-chip low-voltage regulators

•

Fully compliant with IEEE 802.3, 802.3u, and 802.3ab standards

•

0.13µ CMOS — low power and cost

•

Low power

- Less than 700 mW per port

- Wake on LAN support

- Advanced power management

•

Trace matched output impedance

•

Line-side loopback

•

Low EMI emissions

•

Cable plant diagnostic

- Cable plant analyzer function detects cable plant impairments

- Link quality indication LED

- Automatic detection and correction of wiring pair swaps, pair skew,

and pair polarity

- Automatic MDI/MDIX crossover at all speeds

•

Robust CESD tolerance

•

Support for jumbo packets up to 9 KB

•

IEEE 1149.1 (JTAG) boundary scan

• 128-pin MQFP, 117-pin BGA, and 100-pin FBGA packages

The BCM5461S is a fully integrated 10/100/1000BASE-T Gigabit

Ethernet transceiver optimized for low power and small footprint size to

enable backplane and uplink applications. By lowering system cost and

reducing power dissipation by nearly 30%, the BCM5461S enables a new

class of cost-effective Gigabit Ethernet equipment, driving the delivery of

Gigabit bandwidth to the desktop.

The BCM5461S’s Digital Signal Processor based architecture and

advanced power management techniques combine to achieve robust and

low-power operation over the existing CAT 5 twisted-pair wiring. The

BCM5461S architecture also meets the requirements of 802.3, 802.3u, and

802.3ab, but maintains the industry’s highest level of margin over IEEE

requirements for Echo, NEXT, and FEXT. Low power is a key factor in

implementing Gigabit small form factor NICs and uplinks and, at less than

700 mW per port, the BCM5461S has the industry's lowest power

requirement. For NIC applications, support for Wake on LAN enables

compliance with PCI 2.2 and PC99/PC2000. Also, the BCM5461S has

extremely low EMI emissions, which reduces the design constraints

required to meet EMI emission specifications.

The BCM5461S supports GMII, RGMII, SGMII, SerDes, TBI, RTBI, and

MII MAC interfaces. A unique feature of the BCM5461S is its ability to

support both copper and fiber networks, with an integrated SerDes PHY

interface that can connect directly to a fiber-optic module. Switching

between copper and fiber media can be accomplished either automatically

or through software control. The BCM5461S monitors copper link and

fiber signal detect status and, based on priorities set at initialization,

automatically swaps either copper traffic or fiber traffic to the MAC/

switch.

This device is another member of Broadcom's 0.13µ Gigabit copper PHY

family, joining the BCM5404, BCM5414, BCM5421, BCM5421S,

BCM5424, BCM5434, BCM5464, and BCM5464S. The 0.13µm process is

the optimal process that offers the best performance, lowest cost, and

lowest power for Gigabit copper solutions. Further, devices based on the

0.13µ process offer an excellent long-term cost curve, enabling better cost

reduction over time compared to older technologies, without having to

redesign or requalify a new part.

The BCM5461S incorporates a number of advanced features. A link

quality indicator LED provides instant notification of any problems with

the wiring plant operating at the desired speed. This includes physical

wiring defects that the BCM5461S cannot automatically correct and

channel conditions such as excessive cable length, and return loss,

crosstalk, echo, and noise. Broadcom’s cable analyzer software can be used

with the device to provide remote management of the cable and a first level

of diagnostics and fault isolation.

The BCM5461S also has ESD tolerance that exceeds typical industry

standards. This prevents ESD damage during manufacturing and during

CESD events in the field. Cable-sourced electrostatic discharge (CESD) is

an ESD event that occurs when an electrically charged network cable is

plugged into a network port, an issue becoming more prevalent with

contemporary cable installations
