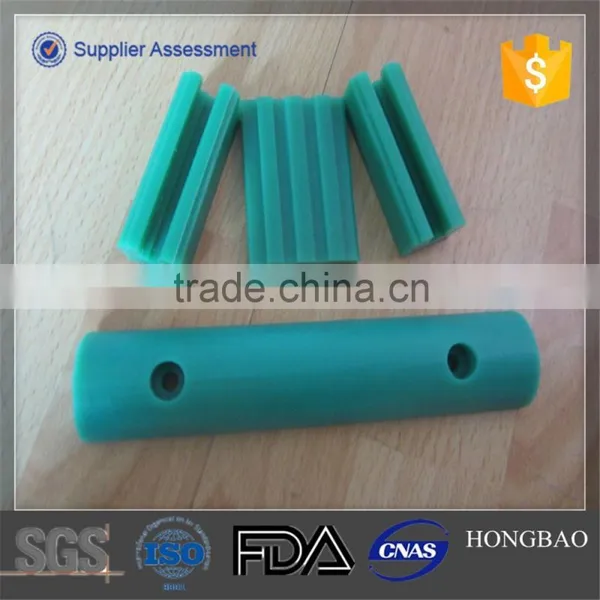

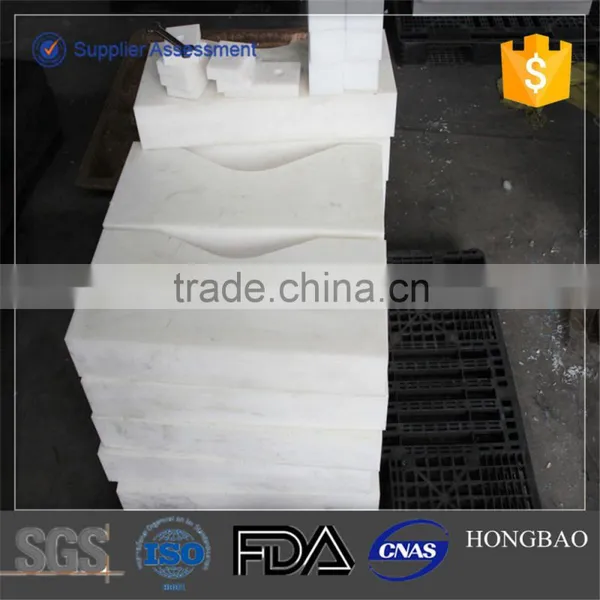

HDPE panel machined part engineering plastic
Ultrahigh molecular weight polyethylene (UHMWPE/HDPE Panel) is a kind of thermo-plastic engineering plastic.
The advantages of HDPE Panel:
1. Non-Toxic and smell
2. Low coefficient of friction
3. Corrosion resistant
4. Abrasion and impact resistant
5. Anti-Weather and Anti-Aging
6. Self-lubricating
7. Wear Resistant
8. UV Resistant/ultraviolet-resistance sheet
9. Can be used under HighTemperature
10. High Tensile Strength
11. High Viscosity
12. Flame Retardant
Packings of the engineering plastic HDPE panel machined part ; we'll try our best to meet your demand and careful about your request:
ALSO, THE HDPE PANELS CAN BE MACHINED, DRILLED AND ENGRAVED TO MANY KINDS OF SHAPES FOR MACHINE PARTS OR OTHER PURPOSE, FOR ANY INQUIRY, PLEASE TELL ME, MY PLEASURE WILL BE ALWAYS.
Mainly properties of engineering plastic HDPE panel machined part:
Items |
Testing Method |
Unit |
Result |
|
Physical Property |
Density |
D1505 |
G/cm³ |
0.94-0.98 |
Mechanical Property |
Breaking Strength |
D638 |
N/cm2 |
2900 |
Elongation @ Break |
D638 |
% |
350 |
|
Notch Impact Strength |
D256 |
CJ.cm/cm2 |
Not Destroyed |
|
Hardness (Rockwell) |
D747 |
|
40-80 |
|
Thermal Property |
Melting Point |
D2117 |
℃ |
136 |
Vicat Softening Point |
D1525 |
℃ |
134 |
|
HDT (0.46 Mpa) |
D648 |
℃ |
85 |
|
Electrical Property |
Volume Resistance |
D257 |
SL-CM |
1017 |
Breakdown Voltage |
D149 |
Kv/mm |
50 |
|
Dielectirc Constant |
D150 |
|
2.3 |
|
Others |
Water Absorption |
D570 |
% |
<0.01 |
Scaling |
|
|
Uneasy to scale |
|
What is the mainly/ standard size of UHMWPE/HDPE Panel?
Thickness:
5mm/0.2”inch,
10mm/0.4”inch,
20mm/0.8”inch,
50mm/2”inch,
100mm/4”inch
Length*Width:
1000*1000mm/40”inch*40”inch,
1000*2000mm/40”inch*80”inch,
1000*3000mm/40”inch*120”inch,
2000*2000mm/80”inch*80”inch,
2000*4000mm/80”inch*160”inch
For more size, please contact with me--Helen Zhang.
FOR UHMWPE/ HDPE Panel, WHY CHOOSE US, NINGJIN HONGBAO CHEM?
- Founded in 2005, we are professional in this field and focus on UHMWPE/HDPE/LDPE sheet, UHMWPE/HDPE/LDPE rod, UHMWPE/HDPE/LDPE shaped pieces and other UHMWPE/HDPE/LDPE products.
- Ningjin Hongbao Chemical Co., Ltd. is one of the manufacturers with the largest product scale of research and development of high-performance engineering plastic products(UHMWPE/HDPE/LDPE) in China, having won a number of national and ministerial honors, and passed ISO9001:2008 quality system certification. And our product is widely sold to many country and areas in the world.
- We have an professional working team to provide the best service to you. From pre-sales, to ocean shipping, customs clearance, after sales, every linke you can always feel our warm hearted service.
- We have big fund support us to do flexible payment. T/T, L/C, Paypel, etc are OK for us.
6. Our Other Plastic Products:
UHMW PE Sheet, UHMWPE Rod and UHMW PE Shaped Parts
HMPE Sheet, HMPE Rod and HMPE Shaped parts
HDPE sheet/BOARD and HDPE rod, HDPE Shaped parts
LDPE sheet and LDPE rod, LDPE Shaped parts
PVC sheet and pvc rod, PVC Shaped parts,
PP sheet and PP rod, PP Shaped parts,
PE300 sheet and PE300 rod, PE300 Shaped parts
PE500 sheet and PE500 rod, PE500 Shaped parts
PE800 sheet and PE800 rod, PE800 Shaped parts
PE1000 sheet and PE1000 rod, PE1000 Shaped parts
Nylon sheet and nylon rod, Nylon Shaped parts
PTFE sheet and PTFE rod, PTFE Shaped parts
uhmw-pe sheets hdpe shaped parts uhmw-pe pipe sleeves FDA Approved Cutting Boards
Synthetic Ice Rinks HDPE Marine Fender Pads UHMW-PE Outrigger pads
