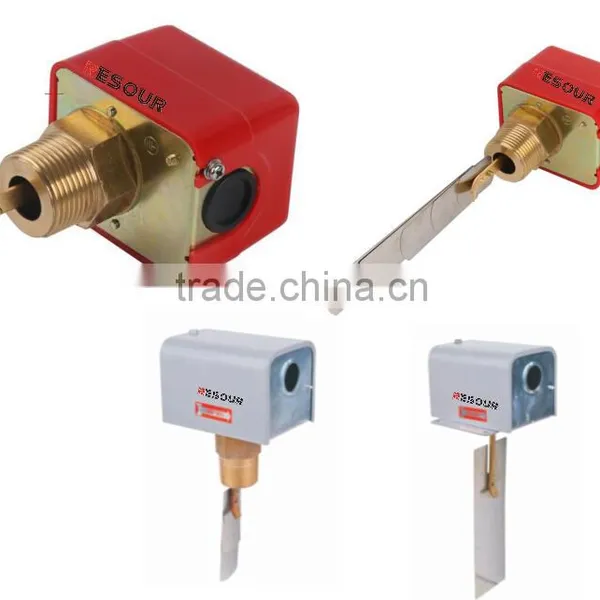

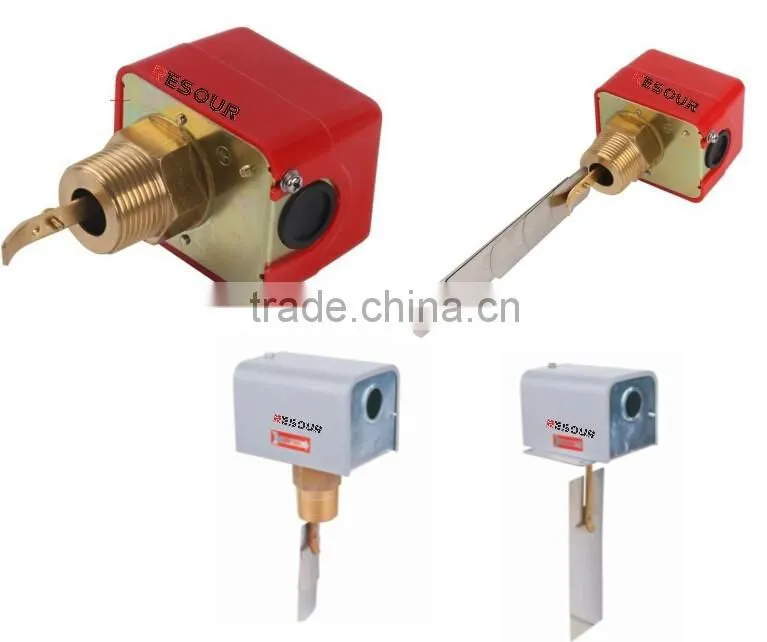

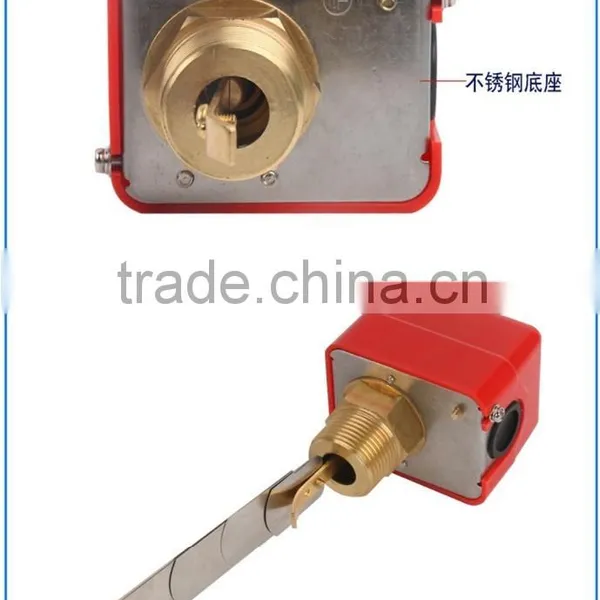

RESOUR Water Flow Switch hfs-25
1. Flow switch hfs-25 feature
1, With extremely small pressure loss
2, Good repeatability
3,With high anti-stain ability
4,Accurate switch setup through knob
5,The mechanical part isolate with electric part totally .
6,It will provide 5 kinds of baffle. When small flow rate in big diameter pipe or the pipe is not fulfill it , user can change it according to the field situation . Also , it make one type flow switch to suit for different size pipe .
2. Flow switch hfs-25 specification
Control Type |
Paddle |
Maximum Static Pressure |
10 / 20(kg/Cm*m) |
Ambient Temperature Limets |
0°C - 60°C |
Maximum Liquid Temperature |
100°C |
Electrical Switch |
SPDT RATING:220VAC |
Connection |
screw terminals |
Case |
Plastic cover witch 1/2 couduit opening |
3. Flow switch hfs-25 principle
4. Flow switch hfs-25 mounting
Mounting
Flow switch be mountedin a horizontal pipe line or vertical pipeline .
Mount the instrument in a section of pipe where there is a straight run of atleast 5pipe diameter on each side of the flow swhtch
Adjustment
Note :sealed adjustments are not field addjustable .
Adjust Setting
1,Remove switch cover
2,For higher flow rater-turn range adjusting screw clockwise
3,For lower flow rater-turn range adjusting screw counter clockwise.
4,Be sure flow swtich cover is replaced before leaving job.
5. Length Difference Of End Plate (Width All Same)
6. Other models for choice:
About our factory:
Why choose us?
Company's Profile
Our factory founded in 1992, has over than 20 years maufacturing and export experience in Zhejiang province.
Plant area over than 20,000 sqm. number of workshops over than 8, number of employees over than 200.
Our main products are refrigeration equipment and spare parts.
Guarantee Service
We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months with all equipment and parts.
The warranty period starts from the day of delivery to the original retail purchaser.
