Place of Origin
Zhejiang, China
Brand Name
RESOUR
Model Number
AW/AF
Type
Other, Oil separator
Application
Refrigeration Parts
Certification
CE
Screw Compressor Oil Separator
Feature:
| 1. Screw-type oil separators are especially designed for screw compressors; |
| 2. These oil separators are suitable for all HFC-coolers and cooling circuits with R22 application; |
| 3. Any required diameter,length, and properties can be customize according to relevant standards. |
Connection Parts:
| 1. We determined Input and Output connections according to volume of products; |
| 2. Rotalock valve connection is used in standard products(Flare/Flare); |
| 3. Different connection may be used upon request; |
| 4. 7/8” Rotalock Valve is installed at tank output in standard products; |
| 5. We determine models of Sight Glass according to diameter of products; |
| 6. Sight glasses may be decreased and increased up to desired number; |
| 7. 2 Sight Glasses are available in standard products. |
| 8. We strongly recommend using Safety Valve in products. |
| 9. There is a Safety Valve connection after certain volume. |
| 10. There is oil level sensor connection in standard products. |
| 11. Connection parts for oil heaters and oil thermostat are available in standard products. |

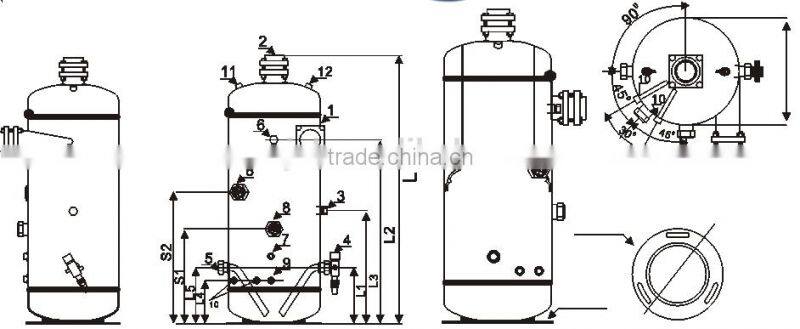

Drawings:
Technical Parameter:

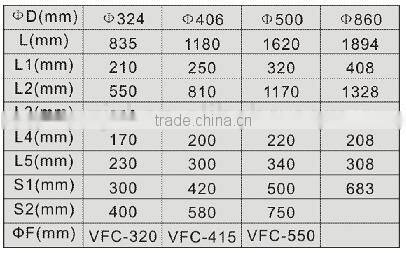

Dimension:

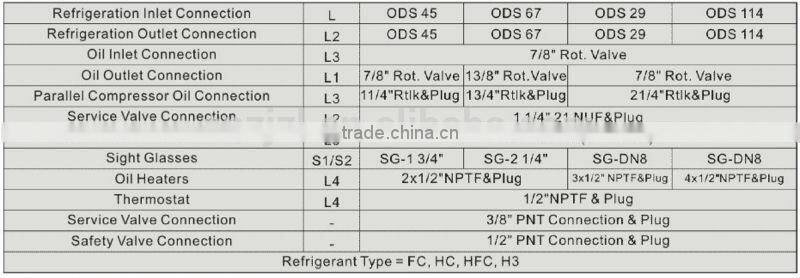

Connection:
About our factory:
Please contact us for more details or other models...
