steam mop cleaner filling machine
Major characteristics:
This gravity time filling machine specially designed for foamy product, such as: glass cleaner ,liquid soap and so on.
(1)PLC controlled, friendly touch screen control.
(2) Famous brand electrical and pneumatic components used to guarantee machines quality and long life service time.
(3) diving function for dripping can be special designed for foamy product.
(4) All wetted parts are made of SS316.
(5)Not only whole filling heads can be adjusted, but each filling head can be fine-adjusted respectively.
(6)Bottle inlet counting, quantitative filling, bottle outlet counting, and serious motions can be done automatically.
(7)Simple structure, easy operation, Low noise, reliable running, accurate filling.
Technical parameter:
NO. |
Items |
Performance |
01 |
Power Supply |
AC 220V ;50Hz or 380V; 50Hz |
02 |
Power |
1.5Kw |
02 |
Suitable containers |
Container mouth diameter: ≥Φ18mm |
Container height:100mm-300mm | ||
Container diameter:30mm-100mm | ||
03 |
Number of filling nozzles |
12 (may customized) |
04 |
Productivity |
≤6000bottles/hour (Take 100ml water as test) ≤2500bottles/hour (Take 1000ml water as test) |
05 |
Pneumatic (air -operated) source |
0.33-0.50 Mpa clean and Stable compressed air |
06 |
Material density: |
0.6-1.3 |
07 |
Machine weight |
480Kg |
08 |
Dimension |
2000mm×1100mm×2500mm |
glass cleaner bottle filling machine
type: ZGP series
This is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action. The machine is especially suitable for foodstuff. For example: white spirit, soy sauce, vinegar, seasoning, vegetable oil, syrup, mineral water, edible liquid as well as chemical liquid. It has accurate filling measurement; there is not bubble and drop. It suits for the filling of all kinds of bottle (including irregular bottle)
Filling range: 100ml -1000ml
1L-5L
bottle shape: round & flat
Capacity :
at basic of 1L ,there are different kinds of capacity of the machines
less than 2000BPH
less than 4000BPH
less than 6000BPH
Suitable bottles:

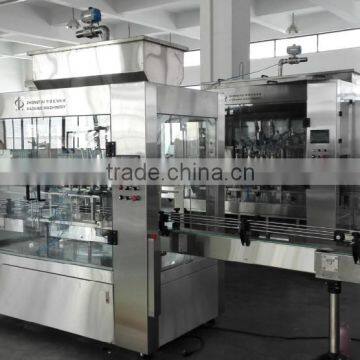

Machine photos:
Parts of machine:
Electrical parts:
The manufacturer shall supply qualified products, if some problem of quality found within one-year delivery. The manufacturer is responsible for repairing or replace defeats ones. This assurance does not including the quick-wear part and damage due to the improper operation that regulated in instruction manual.
Packed wooden case ( no smoked, but suitable for long distance transports )
1. Installation, training and start-up by Our Factory Service Engineer is available.
2. With ZHONGTAI’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us.
3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine, if our engineers stay 7days, it’s free to charge salary. But if more 7 days, customer pays our engineers one people one day usd50/person.
4. The customer pays the travelling expenses, food, and accommodation. We welcome clients send their workers to our company study. It's free to study machine on our factory, Our Company is charged with the fee of food and accommodation. Our machines are very easy to operate and manage. Worker can operate and manage these machines after they study three days. The number of persons training is as customer requirement.
Our Services
1.Delivery time: 7~45days according to order quantity and model.
2.Payment term: 30%TT in advance, the ballanced 70% before machine leave factory.
3.Machine warranty: One year;Spare parts free of charge are supplied within one warranty year ,easy damaged parts and man-made damaged are exclusive,over warranty year the seller only charge spare parts at cost price; Express charge is at customer account.
4.Our company provides the buyer long time technology supply.
5.All operation manual, operation interface offered in English. Offering free-charge machine operation trainning.
6.Customer duty: Provide wrappage or its information to our company before sign a contract, after contract please provide bulk wrappage to us for debugging. Customer provide round-trip tickets, board and lodging when invite our engineers to debug machines and train your employees. Also there is salary for our engineers.
FAQ
1. How does this machine control filling volume?
A: It controls filling volume by setting filling time for each valve. The volume= velocity of flow X time.
2. Is there other filling capacity can be choosen?
A: Yes, the filling capacity is upto 20Litre or more. We can customize it for you according to your bottle size.
3. Our liquid has foam when fill, can you solve this problem for us.
A: Don't worry, we can add dive filling function such nozzles can dive in to the bottle to fill. Also nozzles can rise while filling.
4. Can this machine fill viscosity liquid?
A: If the viscosity liquid is with good mobility, it is ok. Such as mike(not yogurt), thin oil such liquid with very little viscosity.
5. Our country's voltage is different from China, can you supply machine with the power supply same as our country?
A: Yes, we can. We can customize it for you.
