PU Sandwich Panel With High Strength for Different Cold Rooms, PU Wall Panel for Cold Storage

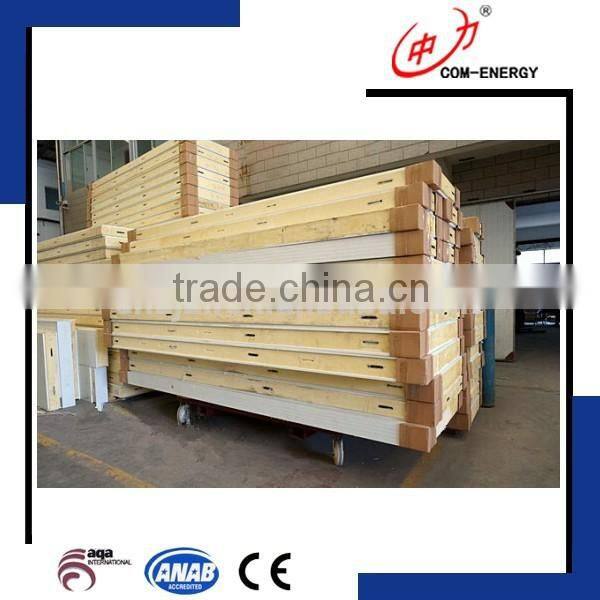

PU Sandwich panel with high strength for different cold room
Shengzhou City Refrigeration Equipment Factoryis a specialized manufacturer engaged in designing, manufacturing, trading various specification Air Coolers, Air-cooled condenser, Compressor Units and also providing various accessories for refrigeration facilities, which are very popular and specialized in area of refrigeration equipment.Our products are widely recognized and trusted by customers, which can meet continuously changing economic and social needs.

Description:
Panel material can be chose of:
Ordering details:
| Sandwich Panel General Technical Features: | ||||||||
| Thickness (mm) | 50 | 75 | 100 | 150 | 200 | 250 | ||
| Weight ( kg/m2) | 10 | 10.45 | 10.9 | 11.8 | 12.7 | 13.6 | ||
| Thermal Conductivity λ (kcal/m2h°C) | 0.057 | 0.038 | 0.029 | 0.019 | 0.014 | 0.011 | ||
| Permissible Span (m) | Load (kg/m) | 25 | 5.19 | 6.19 | 8.09 | 9.91 | 11.45 | 12.8 |
| 50 | 3.74 | 4.96 | 5.72 | 7.01 | 8.09 | 9.05 | ||
| 100 | 2.53 | 3.49 | 4.05 | 4.96 | 5.72 | 6.4 | ||
| 150 | 1.9 | 2.7 | 3.31 | 4.05 | 4.67 | 5.23 | ||
| 200 | 1.4 | 2.1 | 2.8 | 3.51 | 4.05 | 4.53 | ||
| 250 | 1.1 | 1.7 | 2.3 | 3.31 | 3.62 | 4.05 | ||
| 300 | 0.9 | 1.4 | 1.9 | 2.86 | 3.31 | 3.7 | ||
| Permissible Load (kg/m) | Height (m) | 2.5 | 1534 | 2538 | 3557 | 5627 | 7715 | 9810 |
| 3.5 | 1210 | 2110 | 3065 | 5.54 | 7094 | 9157 | ||
| 4 | 1066 | 1909 | 2821 | 4752 | 6754 | 8791 | ||
| 5 | 830 | 1553 | 2369 | 4155 | 6057 | 8021 | ||
| 5.5 | 735 | 1401 | 2166 | 3872 | 5713 | 7632 | ||
| 6 | 653 | 1266 | 1981 | 3603 | 5379 | 7246 | ||
| 7.5 | 469 | 944 | 1522 | 2894 | 4460 | 6152 | ||
| Temp.°C | -50°C~+80°C | |||||||
| Cover Materials: color painted steel strip, stainless steel, galvanised sheet. Core Materials: EPS, PU, ROCK WOOL, GLASS WOOL. | ||||||||
All products made by Shengzhou City Refrigeration Equipment is packed very well to keep sure the strength of the packing in the delivery. We also have customized package to fit different needs of our customers. Our service team can arrange shipment for you, to keep sure you can get our products on time.


Our PU Sandwich panel for freezer cold room had successfully passed the certificate of CCC, CE. A quality control team with more than 10 years' experience has been set up in Shengzhou City Refrigeration Equipment Factory. All the members in this team have more than 10 years' experience in the quality control of refrigeration equipment. Each step in the manufacturing process has been strictly monitored to guarantee the products' high quality. No matter what are your interested items, they will be in the same outstanding quality.
Our factory was established in 2007 with about 20000 square meters, which is located in beautiful Shengzhou city with convenient traffic.
Our technicians are deeply experiences in retreading refrigeration equipment. Focus on the vision "The quality and sincerity is the life of company", based on the most excellent repairing technique, the most excellent retreading quality, the most excellent sales services, we ensure the quality of our products are reliable and steady, and constantly obtain the customers' support and believe from domestic and foreign markets . We have a good reputation in refrigeration equipment line with high quality.
