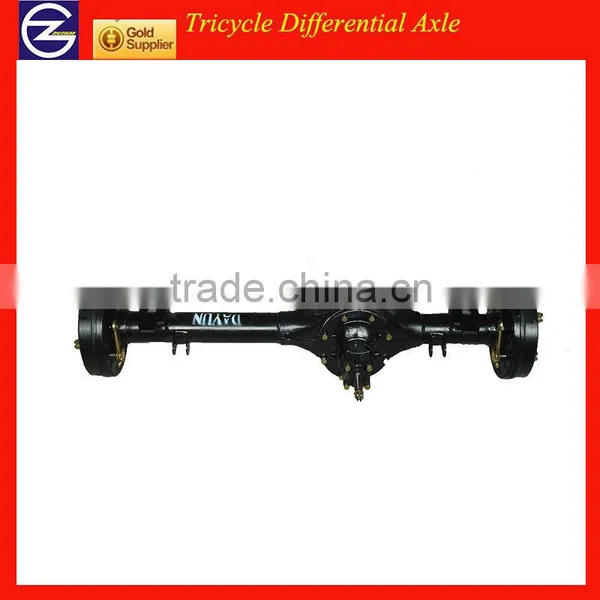

Help CenterTricycle Differential Axle
Related Products
Specifications
Tricycle Rear axleTransmission ratio: 11:38
Max torque: 300N.m
Max rotating speed: 3000r/min
Max Carry capacity: 7000N
Trike Rear Axle Specification as below:
1. Axle Tube Material:60x4 seamless steel pipe.
2. Total Length: 1160mm
3. 220mm wheel hub, 4 holes
4. steel plate seat: 840mm
5 Use For : Tricycle
6 MOQ: 100pcs ( Sample is available)
7 Payment: By T/T, L/C
8Delivery time: within 20days after receiving deposit or according to quantity.
Details:
1.the driving ratio: 11:38 (Atomization 11:37).
2.the max input torque: 300N.m, the max rotating speed: 3000r/min
3.each parts should be agility,Reliable and don't be clampingstagnation when running.
4.the max load bearing: 7000N.
5. Surface treatment: The painting, spurts models or the baking varnish, the request surface not leaks the paint, escapes the paint, flaws and so on flow marking .
6.Welds reliably reliable, the welded joint is smooth, does not allow to leak welds, the faulty soldered joint, does not fuse, scar lump, and so on burning through flaw.
7.all quality shoule be suitable for SLJG08-01.
8.Hydraulic oil capacity is 350ml-400ml.
9.rocker arm shaft should be locate in front horizontal direction.
10.83 rocker arm shaft ( SL2400125C),match haplopore straight-arm (
SL2400126a).
11.steel plate Support : SL2400128H, adjusting yoke lifting lug:SL2400127H.
12.drive shaft: common drive shaft 920mm-38-50X20-20.
