Top Quality 1.5T Electric Pallet Jack With Hydraulic System

FOB Price

US$ 1,900 - 10,000 / Unit

1 Unit(Min. Order)

Port SHANGHAI/NANJING
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	Noelift	Model Number	TE15
Type	Powered Pallet Truck	Power Souce	DC Motor
Rated Loading Capacity	1500kgs	Max. Lifting Height	200mm
Min. Lifting Height	85mm	Fork Length	1150mm
Fork Width	175mm	Overall Dimensions	1817mm*730mm
Certification	CE, GOST, ISO9001	After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

1.5ton electric pallet truck
1.Auto Curve Speed-reduced function;
2.Anti-roll back prevents uncontrolled traveled speed

Top quality 1.5T electric pallet jack with hydraulic system

Product Description

1.5ton smart electric pallet truck, TE15 series, t's polpular in many industries

1. Safety: Auto Curve Speed-reduced function;
2. Anti-roll back prevents uncontrolled traveled speed or roll-bak on ramps when loading and unloading;
3. The small ground clearance, to protect the operator;
4. High-strength frame design, suitable for tough workplaces, ensures longer service life

Product Parameter

TE- Electric pallet truck

1	Description	Electric pallet truck
2	Model	TE15	TE25	TE30	TE60
3	Load capacity Kg	1500	2500	3000	6000
4	Load center mm	600	600	600	600
5	Max. lifting height mm	200	200	200	220
6	Wheel type	Polyurethane solid tire
7	Fork size(LxW) mm	1150*175	1150*175	1150*175	1200*235
8	Width of forks mm	550	685/550	685/550	715
9	Overall length mm	1817(without pedal)	1907(pedal closed)	198(pedal closed)	2210
10	Overall width mm	730	730	850	1012
11	Lowered fork height mm	85	85	85	100
12	Brake	Electromagnetic
13	Outside turning radius mm	1556	1646	1788	2100
14	Load wheel to fork tip mm	165	165	165	175
15	Max. walking speeds km/h	5~6	5~6	5~6	7~8
16	Grade abitity(load/unload) %	6/10	6/10	8	8
17	Total weight( with battery) Kg	~500	~600	~720	~1580
19	Driving wheel mm	Φ215*75	Φ215*75	Φ215*75	¢343*114mm
20	Front wheel mm	Φ80*70	Φ80*70	Φ80*70	¢85*165mm
21	Balance wheel mm	Φ100*40	Φ100*40	Φ150*50	Φ125*50
22	Battery V/Ah	24/140	24/210	24/210	48/300
23	Charger V/A	24/20	24/30	24/30	48/40
24	Driving motor Kw	0.8	1.2	1.2	4.0
25	Lifting motor Kw	1.2	1.2	1.2	6.3

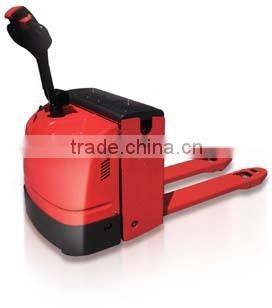

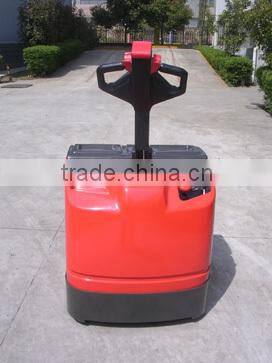

product picture

Factory details

Our Services

1. One-stop solution service.

2. Customized-service all accepted

3. customer service is in time.

4. free maintence for 1 year.

Any questions or suggestiosn please feel freely to contact us!
