This is a vacuum forming machine

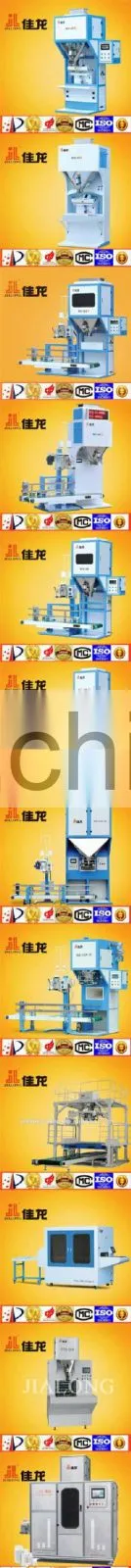

More machine links:
| Picture | Links | Model Range speed |
Feature |
|
http://www.china.cn//product-detail/DCS-5S3A-Sugar-Rice-Grain-Packing_459035036.html | DCS-5S-3A 0.5-5KG 16 bags/minute |
Twin scale; High speed; Vibrator assist; Precise; |
| http://www.china.cn//product-detail/DCS-5S6-5kgs-package-small-scale_576729111.html | DCS-5S-6A 0.5-5KG 16 b/m |
All imported components; Top quality; |
|
| http://www.china.cn//product-detail/DCS-50K3-Rice-Sugar-Bean-Grain_60067083220.html | DCS-25K-3C 5-25KG 12 b/m |
Twin scale; High speed; Vibrator assist; Precise; |
|
| http://www.china.cn/product-detail/2014-New-Style-DCS-50K6-Quantitative-Rice-Sugar-Bean-Packaging-Machine_60033212197.html | DCS-25K-6A 5-25KG 12 b/m |
1. Components all imported top famous. 2.Streamline Fully enclosed. 3.Real time show LED screen connect control center. |
|
| http://www.china.cn//product-detail/DCS-50A3-5-50KG-Sugar-Bean_60028159540.html | DCS-50-A3 5-50KG 5-6 b/m |
Single scale; Good price cost; |
|
| http://www.china.cn//product-detail/DCS-100A3-Rice-Sugar-Bean-Grain_60064316916.html | DCS-100-A3 25-100KG 5-6 b/m |
Single scale; Good price cost; |
|
| http://www.china.cn//product-detail/DCS-50CS-Q-Jialong-Feeds-bag_460989716.html | DCS-50-CS/Q5 20-50KG 12 b/m |
Packing granule mix powder materials; Twin scale,high speed. |
|
| http://www.china.cn//product-detail/DCS-50CW-P-Peanuts-Packing-Scale_479580052.html | DCS-50-C/P5 20-50kg 4 b/m |
Belt feeding; Packing Irregular shape materials. |
|
| http://www.china.cn//product-detail/1000-kg-Ton-Bag-Packing-Machine_60084581550.html | DCS-1000-C 500-1000KG 30 bags/hour |
For jumbo bag package; | |
| http://www.china.cn//product-detail/DZX-6-high-volume-chamber-grain_60062052990.html | DZX-500-X6 2-10KG 7-8 b/m |
High speed vacuum packing; Plane form shape; |
|
| http://www.china.cn//product-detail/PZB-5FD-1-5kgs-rice-vacuum_60027685305.html | PZB-200-F1 1-5 KG 3-4 b/m |
Weight and vacuum; Plane form shape; |
|
| http://www.china.cn//product-detail/LZB-M6-cube-shape-vacuum-packing-machine_60164689666.html | LZB-M6 250G-5KG 6-8 b/m |
Weight and vacuum; Cube form shape; |
Applications

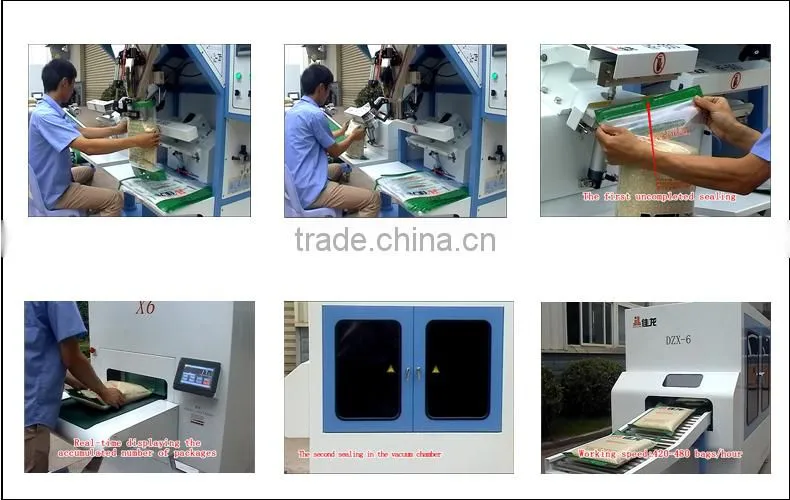

Performance show.

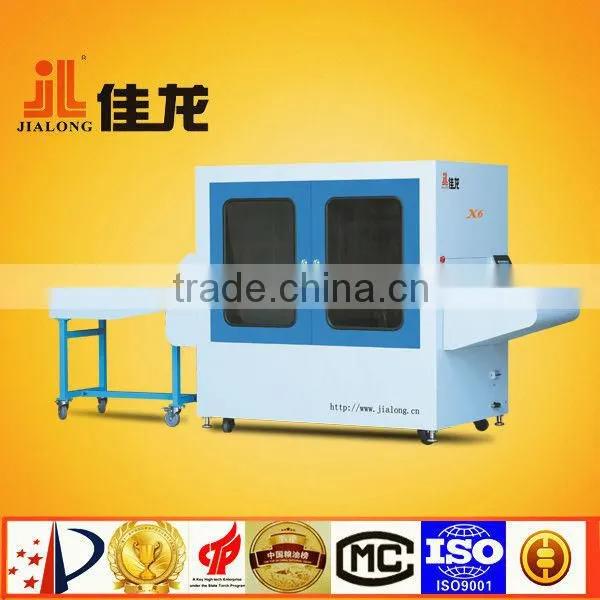

DZX-6 high volume chamber rice vacuum machine
Technical Parameters
Model |
DZX-6 |
Working extent (kg) |
1~5 |
Working speed (bags/h) |
420~480 |
Power,Power consumption |
4N-AC380V 50Hz 2.6KW |
Air, air expenditure |
0.4~0.6MPa 2m3/h |
Size (mm) |
3400(L)×1000(W)×1600(H) |

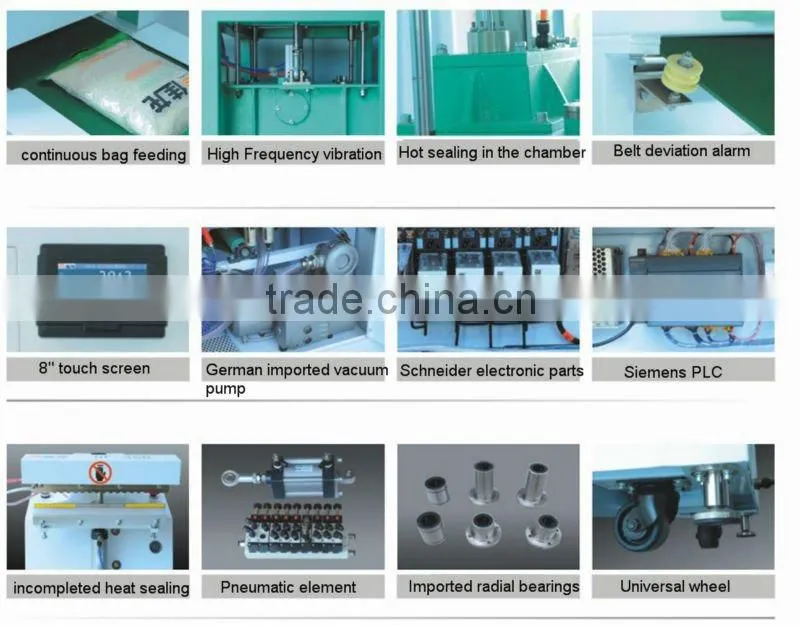

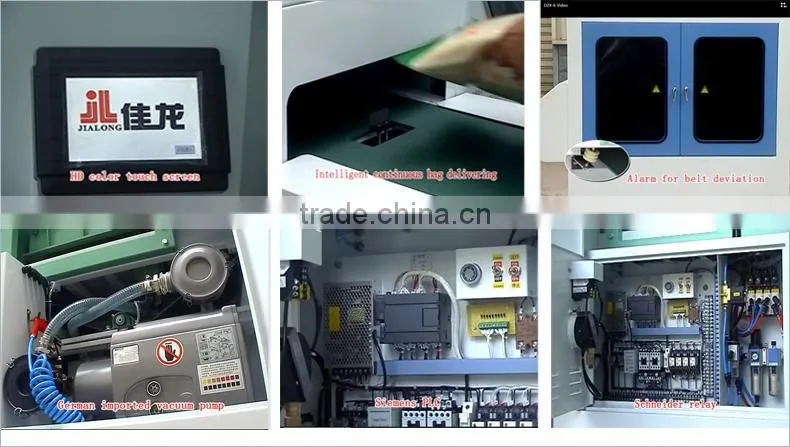

Functions and Features
1. Used for flattening and vacuuming the particle materials like rice, coarse cereals. To keep the material fresh, extend the keeping time and easy to transport.
2. Adopt Siemens PLC, imported pneumatic, photoelectric detective elements, reliable working, low fault rate
3. Auto alarm for belt deviation, protective to the belt and improving the using time
4.Multi staged vacuum pack and shaping, greatly improves the efficient
5. Advanced vibrating shaping body and cabinet vacuuming institution make sure the uniform shape and the attractive looking of finished products.
6.Finishing the heat sealing in the vacuum cabinet, ensure the accurate and uniform sealing and high success ratio.
7.Vibrating shaping in the closed shaping hood significantly reduced the noise and improves the working environment.
8. Intelligent cycle running, the only manual work is putting the bags in position
9. Control with the touch panel, easy to understand and operate either for test or operation, display the accumulated number
10. with the function of production statistics for every shift
Package and load

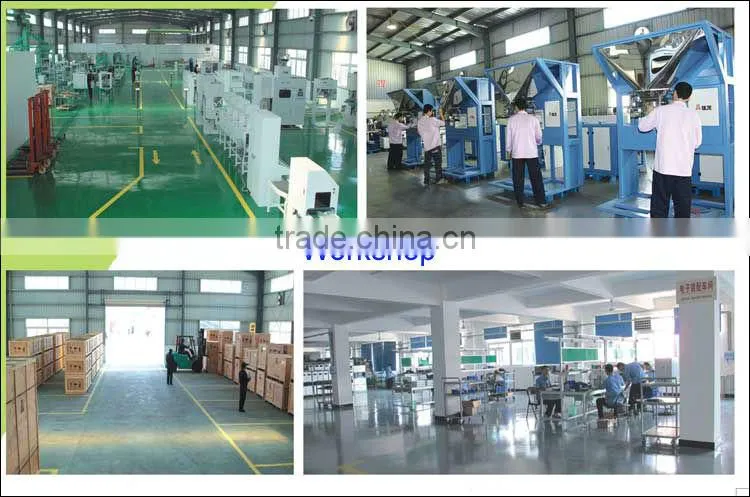

Workshop

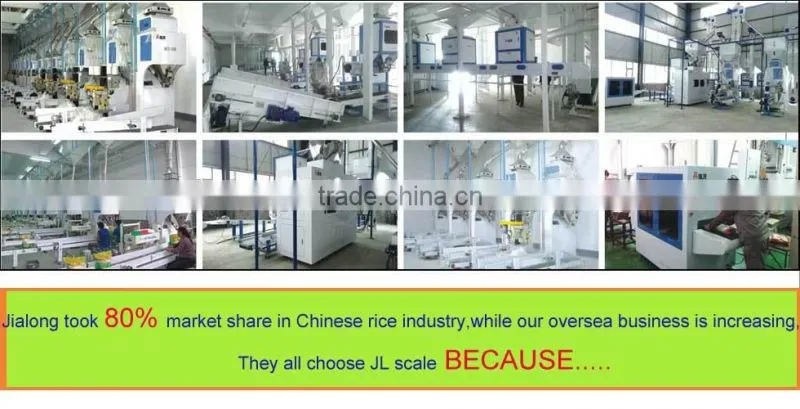

Customer cases
Our products are used to win golden prize
Honor Wall
When buying a packaging machinery,
What should be the primary consideration ?
Cheapest price?
You might buy yourself a lot of troubles when the quality cost lower.
We insist on prefering two RP :
Reliable performance with Reasonable price.
For over 15 years,
We have never stopped developing our products to be most cost effective.
Heartfelt thanks to our customers for the support and love over the years.
