Specifications
1. ISO9001:2008 certificate2. High efficiency & precision
3. Automatic batching and reliable control
4. Long working life
Profile

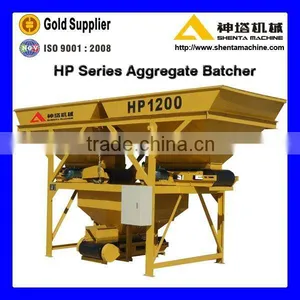

HP series aggregate batchers are our products with years manufacturing experience, it is special design for high precision aggregated batching, suits for civicism project, road, bridge, water conservancy, hydropower, airport, dock and other construction site, it can meet various requirement of batching capacity and productivity.
Our aggregated batcher adopt the advantage penmatical or electrical control technology, it can realize the automtacial and high precision concrete batching
Main Specification
|
Model
|
HP800-2 |
HP1200-2 |
HP1200-3 |
HP1600-3 |
HP2400-3 |
HP2400-4 |
|
Batcher Capacity
|
800 (L) |
1200 (L) |
1200 (L) |
1600 (L) |
2400 (L) |
2400 (L) |
|
Storage Capacity
|
2X2m3 |
2X3.5m3 |
3X3.5m3 |
3X4.5m3 |
3X10m3 |
4X10m3 |
|
Productivity
|
45m3/h |
60m3/h |
60m3/h |
80 m3/h |
120 m3/h |
120 m3/h |
|
Max. Scale Capacity
|
2000Kg |
3000Kg |
3000Kg |
5000Kg |
5000Kg |
5000Kg |
|
Number Of Batching
|
2 Kinds |
3 Kinds |
4 Kinds |
|||
|
Charging Method
|
Wheel Loader/Belt |
|||||
|
Batching Cycle
|
45s |
45s |
45s |
60s |
60s |
60s |
|
Batching Accuracy
|
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Discharging Method
|
Penumatic |
Penumatic/Belt |
||||
|
Net Weight
|
3000Kg |
3100Kg |
3600Kg |
5200Kg |
5900Kg |
6400Kg |
|
Overall Dimension
|
5800*1800*3200 (mm) |
6000*1800*3200 (mm) |
9000*1800*3220 (mm) |
10000*2100*3360 (mm) |
12500*2500*3600 (mm) |
15000*2500*3600 (mm) |
