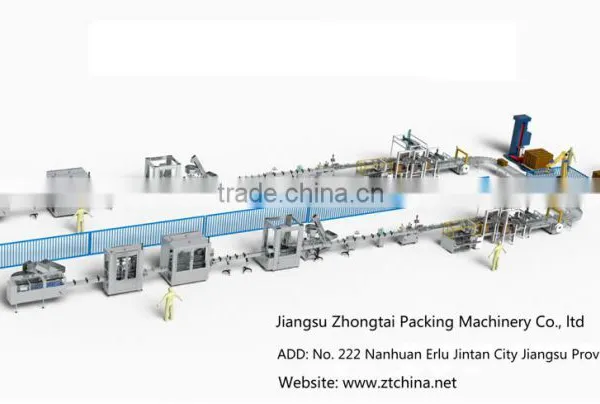

1L-5L liquid packaging line
suitable for liquid packing: oil, shampoo, washing-up liquid and other viscous liquid
This production line is suitable for the ration filling and capping of cooking oil lube oil ,engineer oil ,car oil and all the kind of oil kinds etc high viscosity materials ration filling and capping.
It is suitable for kinds of bottles less than 5L, consisting of filling and capping combined machine, double-side self-adhesive labeling machine, falling style cartoning machine, automatic cartons opening, sealing machine and conveying device, to complete filling and packed in cartons.
1 It only requires 3 people (one operator, two assistants) to run this line.
2 Filling and capping combined machine, double conveying bottles input, output servo volumetric filling.The machine takes caps first, capping second, has good coordination and high qualified rate, at sometimes the capacity will be increased by 30%.
3 Double-side self-adhesive multiple function labeling machine, it is suitable for round or flat bottles.
4 Falling style cartoning machine is suitable for small quantity of heavier bottles that are not easily taken.
5 Automatic cartons opening, sealing machine, it is easy for operation, making workers more comfortable, improving the production capacity.
Main performance patameter:
Suitable range :1-5L
Production capacity :2000-800 bottle/hour
1: suitable material: cooking oil lube oil ,engineer oil ,car oil and all the kind of oil kinds etc
2: capacity :1000ml ≤ 2000b/h ;
5000ml ≤800b/h ;
3. Applicable Bottle Type:Round Bottle Diameter:Φ60-140mm
Height:100-340mm(L×W×H)
flat
4. Bottle’s mouth diameter:≥φ25mm
5. filling range:1000-5000ml
6. Precision: (200ml) ±1% ;(200ml-1000ml)±0.5%
7. Air pressure : 0.6~0.8 MPA
8.Air consumption:120L/minute
9. Power Source:~380V,50HZ
10. Power:4.5KW
11.Productiin line height:900mm±50mm
12.Bottle feed direction:From left to right

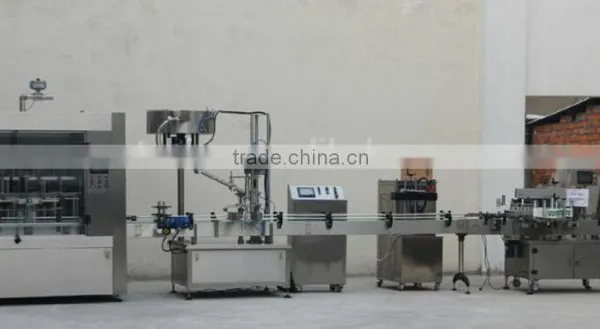

Main pictures:
Suitable bottles:

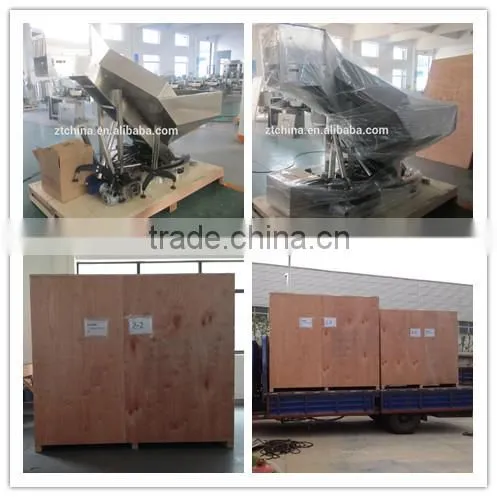

packed wooden case (no smoked, but suitable for long distance transports.)
our package photos
1. Installation, training and start-up by Our Factory Service Engineer is available.
2. With ZHONGTAI’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us.
3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine, if our engineers stay 7days, it’s free to charge salary. But if more 7 days, customer pays our engineers one people one day usd50/person.
4. The customer pays the travelling expenses, food, and accommodation. We welcome clients send their workers to our company study. It's free to study machine on our factory, Our Company is charged with the fee of food and accommodation. Our machines are very easy to operate and manage. Worker can operate and manage these machines after they study three days. The number of persons training is as customer requirement.
Jiangsu ZhongTai Packing Machinery Co., Ltd
contact : Fiona Ding
Address: No.222, Nan Huan Erlu, Jintan City, Jiangsu P.R. China
Tel: +86 136 8527 0809
Fax: +86-519-82113618
P, C: 213200
Website:
The manufacturer shall supply qualified products, if some problem of quality found within one-year delivery. The manufacturer is responsible for repairing or replace defeats ones. This assurance does not including the quick-wear part and damage due to the improper operation that regulated in instruction manual.
