hot sales low viscous food type packaging line (50-1000ml)
This production line is suitable for low viscosity products, the watery liquid .such as say sauce, vinegar ,wine, and low viscous liquid ,the watery liquid ,etc . This line with fast speed to bottle unscrambling , filling and capping.
It is suitable for the bottle line less than 1000ml, consisting of automatic bottles unscrambler, gravity time volumetric filling machine, rotary capping machine, wet-glue/self-adhesive combined labeling machine, automatic opening, cartoning, cartons sealing machine and conveying buffer. It completes first filling and second packing in cartons.
1 It is intelligent, only requires 3 people (one operator, two assistants) to run this line.
2 The unscrambler works fast and suitable for flat and round bottles, and easy adjustment with no module fixed, any fallen bottles will be returned to the elevator, it alarms for bottles not loaded.
3 gravity time volumetric filling to ensure high precision; downwards filling with position feedback, the filling nozzles are self-adjusted for different bottles, reducing foams for the specific material.
4 Rotary capping machine, suitable for kinds of caps, especially for inner strengthened caps, reaches almost 100% qualified; Slant caps, non-caps, non-aluminum foil caps automatic rejecting system to ensure the qualified rate.
5 Wet-glue/self-adhesive combined labeling machine to use different labels, it reduces cost.
6 Automatic cartons opening, packing, cartons sealing machine is easy for operation, making worker more comfortable and production capacity higher.
Production line for high viscosity products (bulk bottle unscrambler machine ,high viscosity ,inside and outside anti-theftcap filling machine ,capping machine)

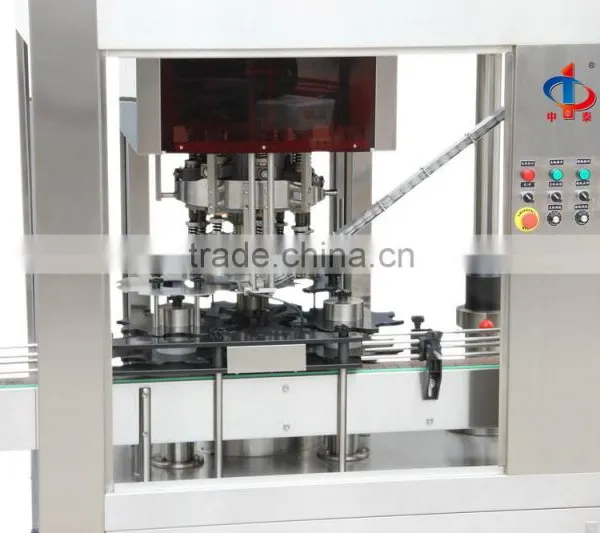

Machine photo:
Main performance patameter:
1. Capacity: 50ml -100ml ≤ 6000b/h ;
500ml ≤5000b/h ;
1000ml≤4500b/h
2. Applicable Bottle Type:Round bottle Φ40-100 mm,Height 80-280 mm
Flat bottle (40-100mm)*(40-100mm)*(80-280mm)(L×W×H)
3. Bottle’s mouth diameter:≥φ25mm
4. filling range:50-1000ml
5. Precision: (200ml) ±1% ;(200ml-1000ml)±0.5%
6. Air pressure : 0.6~0.8 MPA
7. Power Source:~380V,50HZ
8.Productiin line height:900mm±50mm
9.Filling materials:say sauce, vinegar ,wine, and low viscous liquid
10.Bottle feed direction:From left to right
Suitable bottles:

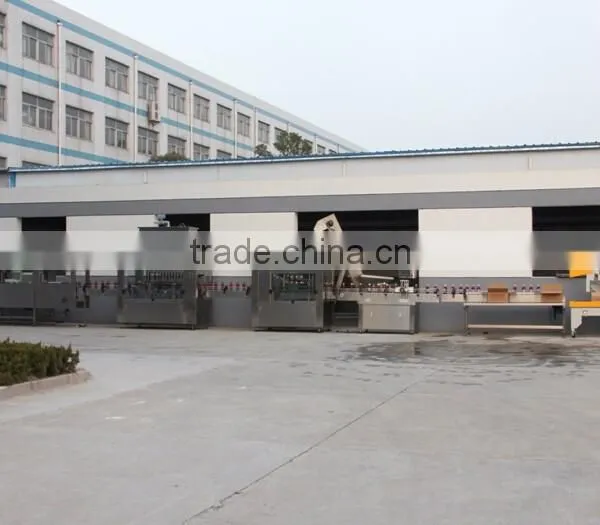

company photo:
packed wooden case (no smoked, but suitable for long distance transports.)
our package photos
1. Installation, training and start-up by Our Factory Service Engineer is available.
2. With ZHONGTAI’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us.
3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine, if our engineers stay 7days, it’s free to charge salary. But if more 7 days, customer pays our engineers one people one day usd50/person.
4. The customer pays the travelling expenses, food, and accommodation. We welcome clients send their workers to our company study. It's free to study machine on our factory, Our Company is charged with the fee of food and accommodation. Our machines are very easy to operate and manage. Worker can operate and manage these machines after they study three days. The number of persons training is as customer requirement.
Jiangsu ZhongTai Packing Machinery Co., Ltd
contact : Fiona Ding
Address: No.222, Nan Huan Erlu, Jintan City, Jiangsu P.R. China
Tel: +86 136 8527 0809
Fax: +86-519-82113618
P, C: 213200
Website:
The manufacturer shall supply qualified products, if some problem of quality found within one-year delivery. The manufacturer is responsible for repairing or replace defeats ones. This assurance does not including the quick-wear part and damage due to the improper operation that regulated in instruction manual.
