high carbon cut wire shot

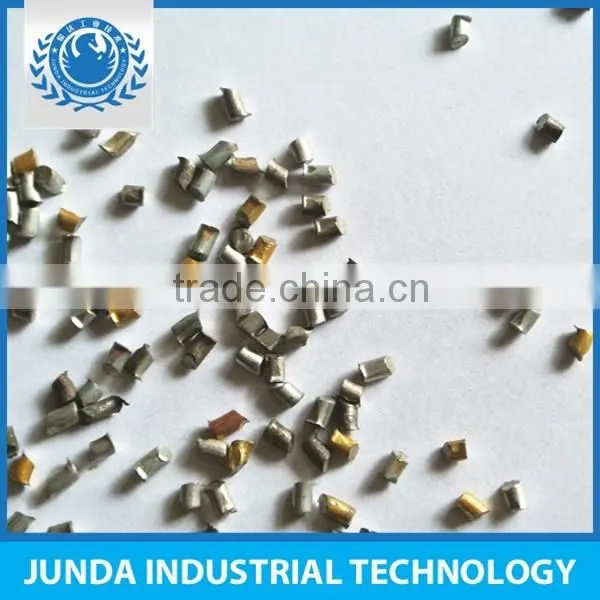

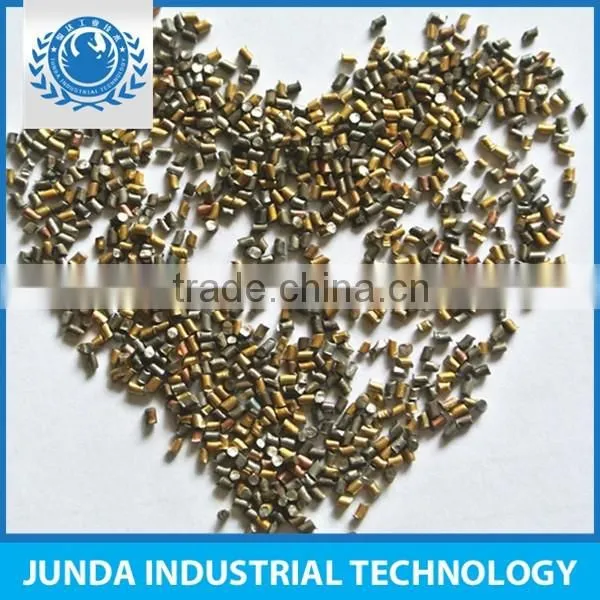

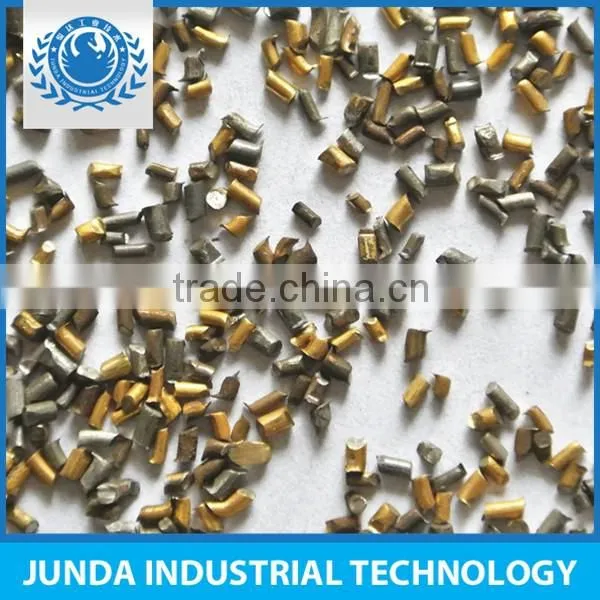

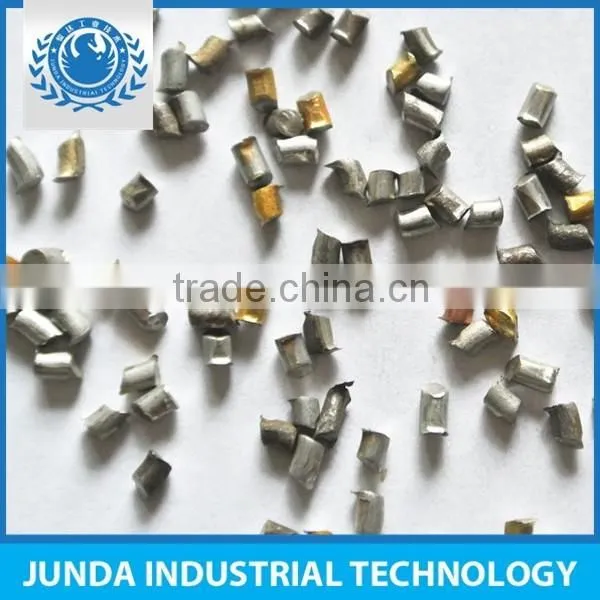

Steel Cut Wire Shot Photo
Steel Cut Wire Shot Specification
| Products | Cut Wire Shot |
| C | 0.45~0.75% |
| Mn | 0.40~1.20% |
| Si | 0.10~0.30% |
| S | <0.04% |
| P | <0.04% |
| Average hardness |
1.0mm:51~53 HRC(525~561HV) 1.5mm:41~45 HRC(388~436HV) |
| Hardness Deviation | Max Deviation ±1.0HRC or ±40HV |
| Tensile Intensity | 1.0mm:1750~2150 Mpa 1.5mm:1250~1450 Mpa |
| Metallographic structure |
Lengthways (homogeneous deformation pearlite) Crosswise (homogeneous deformation pearlite) |
| Density | 7.8g/cm3 |
| Lifetime | About 3000 times |
| Quality Standard |
SAE J441 standards JB / T 8354-1996 steel cut wire shot standard |
| Size (Diameter) | CW1.0mm CW1.2mm CW1.5mm CW2.0mm CW2.5mm |
| Applications |
1. Shot blasting & peening precision components. 2. Surface treatment 3. Metal surface cleaning and rust removal 4. Stone cutting |

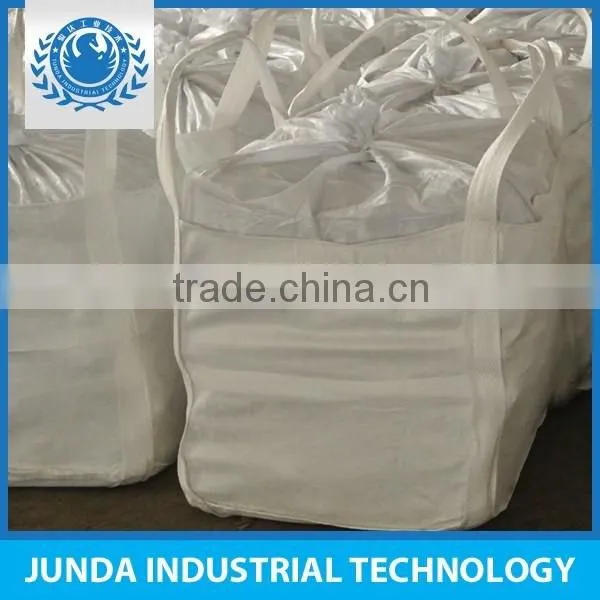

Steel Cut Wire Shot Packaging
1). 25kg/bag,then 40 bags in one ton bag.
2). 25kg/bag,then 40 bags on one ton pallet.
Company Profile
Jinan Junda Industrial Technology Co.,Ltd. is located in Jinan,Shandong Province,China,which is the daughter company
of Honest Horse (CHINA) Holding Limited. We are the manufacturer of abrasive media for more than 10 years experience
in north China.

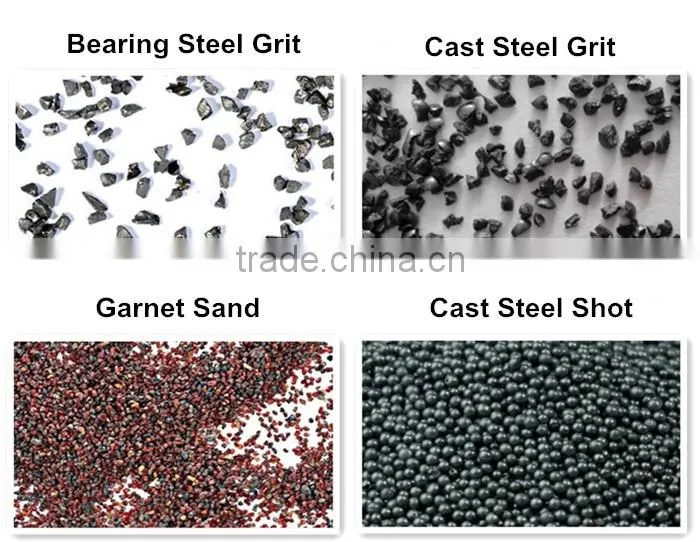

Abrasives media we manufacture:
Bearing steel grit
Cast steel grit
Steel shot
Steel cut wire shot
Garnet
Our old and new customers distribute in Asia, Middle East area,Europe,Africa,North America,South America,and Australia,etc.
The products reach the ISO9001 standard,SAE and always enjoy a good reputation among our customers.
We welcome customers all over the world do cooperation with us !
We welcome email us for detailed information ^_^
Some reference are here
1). Product name:
2). Size:
3). Quantity:
4). Destination port : (if need CIF price)
