High efficiency plastic bottle capping machine
- 30 Set / Sets per Month
- Shanghai seaport
- T/T
- Beer bottle filling equipment line beer bottle washer filler and capper bottling machine
- Manual Plastic Bottle Cap Sealing Machine Bottle Hand Sealing Machine
- Food Tin Can Foil Induction Sealing Machine From Foshan Supplier
- BF2000A Automatic Bottle Washing, Filling And Capping Line
- BF2000 Production Line Of Washing Filling And Capping Machine
- BIOBASE China Automatic Capping Machine BK-AC10 for Automatic Tightening and Loosening of Various Tube Automatic Capping Machine
Product Details
Condition: | New | Application: | Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical | Driven Type: | Electric |
Automatic Grade: | Automatic | Voltage: | AC220V 50/60HZ | Power: | 1.5KW |
Packaging Type: | Bottles | Packaging Material: | Glass, Metal, Plastic | Place of Origin: | Jiangsu, China |
Brand Name: | ZHONG TAI | Model Number: | FXZ-160 | Dimension(L*W*H): | 2000MM*1030MM*2100MM |
Weight: | 600KG | Certification: | SGS CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High efficiency plastic bottle capping machine
type: FXZ-160
This automatic capping machine has four speed-adjustable motors which separately used in lid-arranging, bottle-clamping, lid-capping and conveying and the machine use bottle-clamping belt to ensure the bottles not fall down when lid sleeving and capping, this capping machine has simple structure, good steadiness, adjust convenient, no need to change spare parts, only need adjustment.

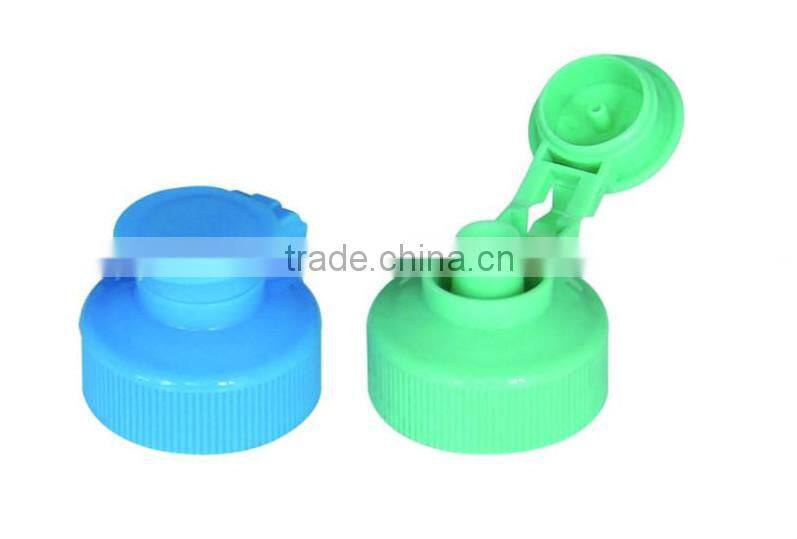

Only suits for regular cap without lock-ring

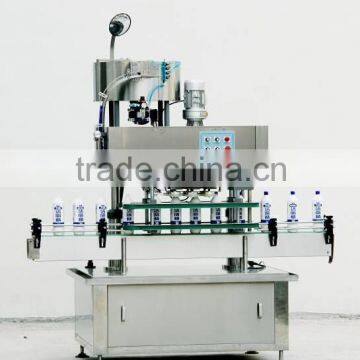

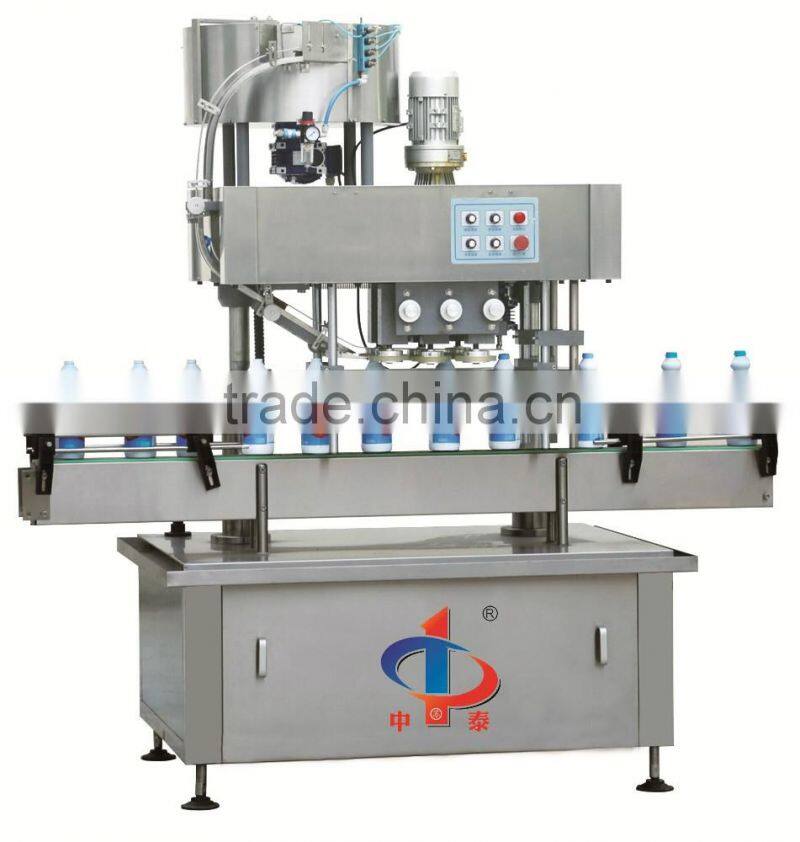

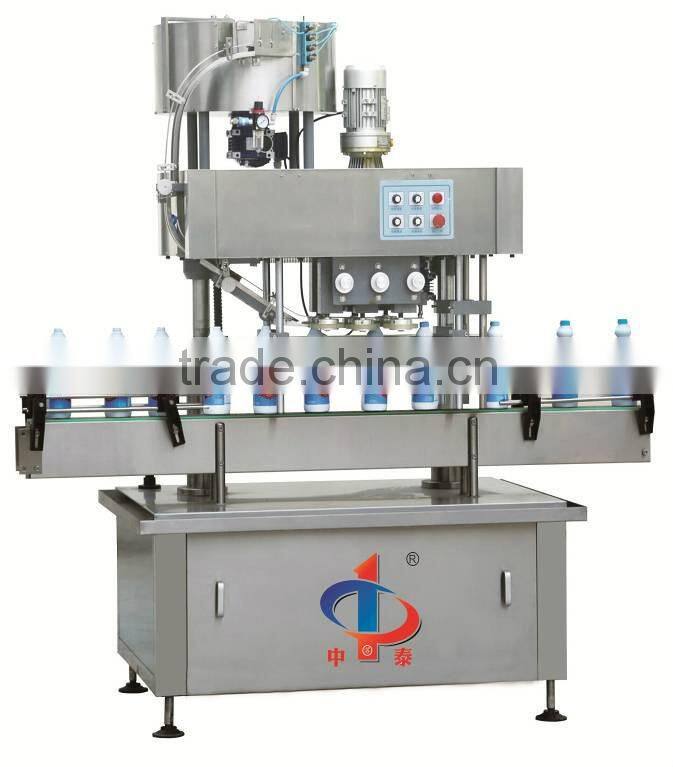

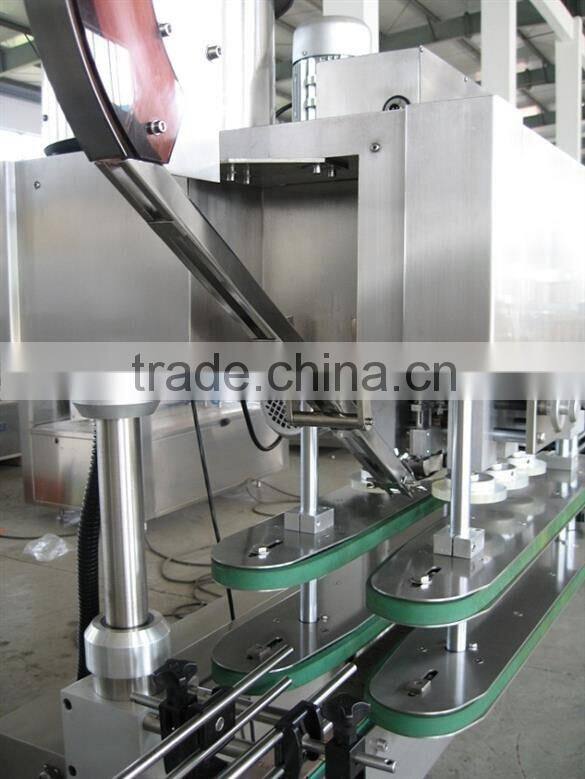

Machine photos:
1 | Speed | 4000-5000 bottles/h |
2 | Cap’s diameter | Ø15~Ø60mm |
3 | Bottle’s diameter | Ø35~Ø140 |
4 | Bottle’s height | 38mm~300mm |
5 | Air pressure | 3~5KG/CM² |
6 | Air consumpation | 0.5m³/min |
7 | Power rate | 2.7kw |
8 | Other devices power rate | 4kw( air compressor ) |
9 | Net weight | 550Kg |
10 | Counter size | 2000mm×870mm×1500mm |
The manufacturer shall supply qualified products, if some problem of quality found within one-year delivery. The manufacturer is responsible for repairing or replace defeats ones. This assurance does not including the quick-wear part and damage due to the improper operation that regulated in instruction manual.
Packed wooden case ( no smoked, but suitable for long distance transports )
1. Installation, training and start-up by Our Factory Service Engineer is available.
2. With ZHONGTAI’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us.
3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine, if our engineers stay 7days, it’s free to charge salary. But if more 7 days, customer pays our engineers one people one day usd50/person.
4. The customer pays the travelling expenses, food, and accommodation. We welcome clients send their workers to our company study. It's free to study machine on our factory, Our Company is charged with the fee of food and accommodation. Our machines are very easy to operate and manage. Worker can operate and manage these machines after they study three days. The number of persons training is as customer requirement.
Jiangsu ZhongTai Packing Machinery Co., Ltd
Address: No.222, Nan Huan Erlu, Jintan City, Jiangsu P.R. China
Tel: +86 138 6110 1912
Fax: +86-519-82113618
P, C: 213200
Website:
Our company photos
