Help CenterFactory Sale! Good Quality! High Hydraulic Rubber Hose
Related Products
-
QTD Tianjin,China Rubber Hose ProductsUS$ 0.001 - 0.099MOQ: 100 Meters -
Good Quality ! Hydraulic Hose Cimping MachineUS$ 1,799 - 2,299MOQ: 1 Set
-
QTD HIGH QUALITY China Hydraulic Hose Crimping Machine QTD-76US$ 99 - 5,999MOQ: 1 Set
-
Quick Change Dies Portable Hydraulic Hose Crimping Machine QTD-51DUS$ 999 - 3,699MOQ: 1 Set
-
Rubber Bonded Metal WasherUS$ 0.1 - 500MOQ: 500 Pieces
Specifications
high pressure hydraulic hose1.low price
2. good quality
3.free samples
4.quick delivery
high pressure hydraulic hose
SAE100R2A/2AT high pressure hydraulic hose
|
Inner Diameter mm |
Outer Diameter mm |
Working pressure M pa |
Burst. Pressure M pa |
Min. bend radius mm |
4.8 |
14.1 |
34.5 |
137.8 |
89 |
6.4 |
15.7 |
34.5 |
137.8 |
102 |
7.9 |
17.3 |
29.3 |
117.1 |
114 |
9.5 |
19.3 |
27.6 |
110.2 |
127 |
12.7 |
23.1 |
24.1 |
96.5 |
178 |
15.9 |
26.3 |
18.9 |
75.8 |
203 |
19 |
30.2 |
15.5 |
62.0 |
241 |
22.2 |
33.4 |
13.8 |
55.1 |
279 |
25.4 |
38.9 |
13.8 |
55.1 |
305 |
31.8 |
49.6 |
11.2 |
44.8 |
419 |
38.1 |
56 |
8.6 |
34.5 |
508 |
50.8 |
68.6 |
7.8 |
31.0 |
635 |
DIN20022/EN853 2ST DIN 20022/EN853 2SN high pressure hydraulic hose
|
Inner Diameter mm |
Outer Diameter mm |
Working pressure M pa |
Burst. Pressure M pa |
Min. bend radius mm |
4.8 |
15.1 |
41.5 |
166.0 |
90 |
6.4 |
16.7 |
40.0 |
160.0 |
100 |
7.9 |
18.3 |
35.0 |
140.0 |
115 |
9.5 |
20.6 |
33.0 |
132.0 |
130 |
12.7 |
23.8 |
27.5 |
110.0 |
180 |
15.9 |
27 |
25.0 |
100.0 |
200 |
19 |
31 |
21.5 |
86.0 |
240 |
25.4 |
38.5 |
16.5 |
66.0 |
300 |
31.8 |
49.2 |
12.5 |
50.0 |
420 |
38.1 |
55.6 |
9.0 |
36.0 |
500 |
50.8 |
68.2 |
8.0 |
32.0 |
630 |

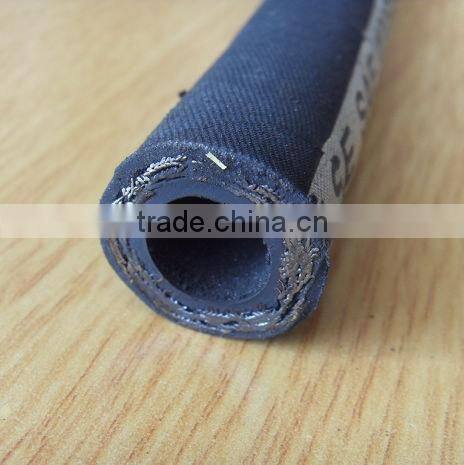

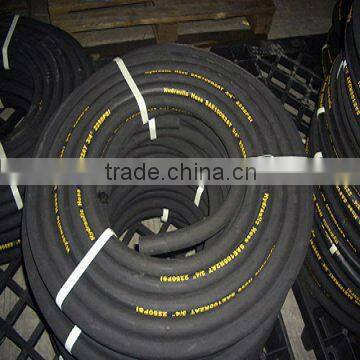

The picture of our high pressure hydraulic hose

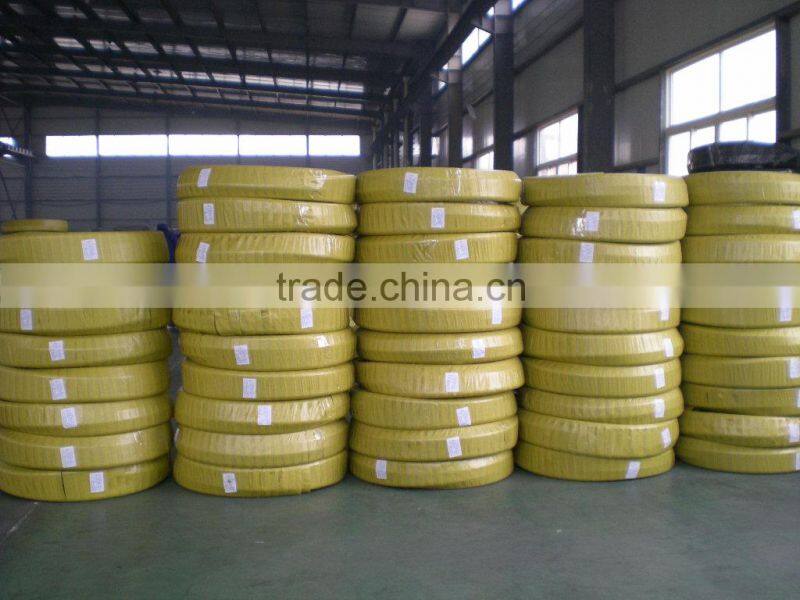

the packaging of hdraulic hose
our certificates
if you want to get more information,please contact me freely.
