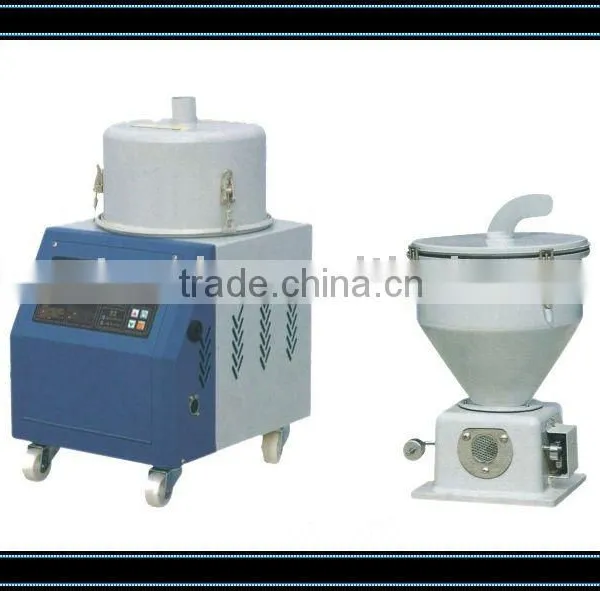

ZKJ series vacuum feederWith good filtering quality
filter is not easy to be jammed
effectual in cleaning dust
Brief Introduction
It's developed by Xingda, referring to the German product. Air and powder are conveyed in low vacuum and separated by advanced filter. We have solved the problem that filter is easy jammed which happens with congeners in China for quite a long time.
Feature
The filter material is strong. It cleans dust well. Pressure loss is low. Extend strength is higher than 12n/mm2. Pressure loss is less than 350 Pa when filter volume reaches 2000-2500m3/m2.h. It leaches much better than other normal loaders. It's low noisy. It works stably.
Application
It is widely applied for automatic conveying powder or powder/granule mixture in field of plastic, rubber, chemical, color, food and medicine, etc. The filter works well when CaCO3 is less than 50% in CaCO3 & PVC compounding.
Main technical parameter
Model |
ZKJ-200 |
ZKJ-400 |
ZKJ-600 |
ZKJ-1000 |
Feeding capacity(kg/h) |
200 |
400 |
600 |
1000 |
Motor power(kw) |
1.1 |
1.5 |
2.2 |
5.5 |
Max static pressure(Pa) |
10000 |
12000 |
15000 |
16000 |
Max air flow |
2.2 |
2.8 |
3.6 |
4.5 |
Volume of sucking compound door(L) |
6 |
10 |
15 |
25 |
Internal diameter of transfer soft pipe(mm) |
30 |
40 |
50 |
50 |
Internal diameter of aspirating soft pipe(mm) |
30 |
40 |
50 |
60 |
