PTFE Hose Braided With Stainless Steel, Ss304 Flexible Hose
- any port of china
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Pipe Fittings Importers Braided With Stainless Steel Teflon Ptfe Hose
-
QTD High Quality 8mm Rubber Oxygen Hose
-
China Supplier of High Pressure Steel Wire Braided Ptfe Teflon Hose With Flange
-
China SS201, SS304, SS316 Steel Wire Braided Ptfe Teflon Hose Manufacturer!
-
China Hot Sales Ss304 Braided Ptfe/teflon Hose
-
SS304 Steel Wire Braided Ptfe Teflon Hose Hot Sales Made in China!
Product Details
| Place of Origin | Tianjin, China | Brand Name | QTD | |
| Model Number | QTD |
Product Description
PTFE hose braided with stainless steel, ss304 flexible hose
PTFE hose braided with stainless steel specifications:
1.Excellent flexibility
2.Chemical resistance
3.High or low temperature resistance
4.UL ROSH
PTFE hose braided with stainless steel applicatons:
- 1. Electrical insulation
- 2. Cryogenics
- 3. Aerospace
- 4. Cable marking
- 5. Thermocouple
PTFE hose braided with stainless steel price:
Operating Temperature: -70C~+260C
Thermal Class:C
Dielectric Strength:50~80Kv/mm
Tensile Strength:33Mpa
Elongation at break:350%
Characteristics:
Very low coefficient of friction
Anti-stick
Flexible
High chemical resistance
Extreme low temperature capabilities
Non flammable
Hydrophobic
Unaffected by oxygen,ozone and UV
specification:
NO | spec. | ID | OD | ID for end | OD for end | wall |
1 | DN6 | 4.5 | 8 | 6 | 8 | 1 |
2 | DN8 | 5.3 | 9.8 | 8 | 10 | 1 |
3 | DN9 | 6.2 | 11.2 | 9.5 | 11.5 | 1 |
4 | DN10 | 7.3 | 11.5 | 10 | 12 | 1 |
5 | DN13 | 10.5 | 14.5 | 13 | 15 | 1 |
6 | DN14 | 9.8 | 15.3 | 14 | 16 | 1 |
7 | DN15 | 12.5 | 17.5 | 15 | 18 | 1.5 |
8 | DN16 | 13 | 17.5 | 16 | 18 | 1 |
9 | DN16 | 12 | 18.5 | 16 | 19 | 1.5 |
10 | DN20 | 14 | 22.5 | 20 | 23 | 1.5 |
11 | DN22 | 16 | 24.5 | 22 | 25 | 1.5 |
12 | DN25 | 19.5 | 27.5 | 25 | 28 | 1.5 |
13 | DN32 | 26 | 35 | 32 | 36 | 2 |

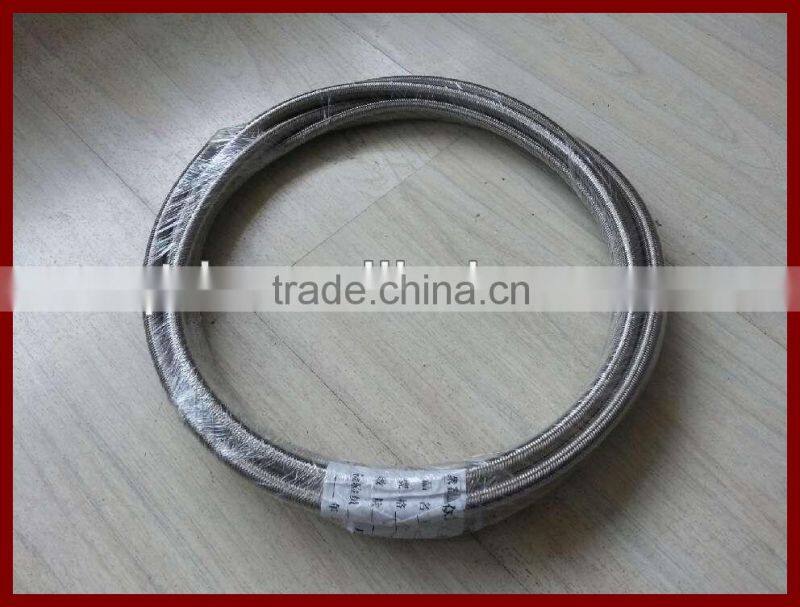

The detailed pictures of the PTFE hose braided with stainless steel:

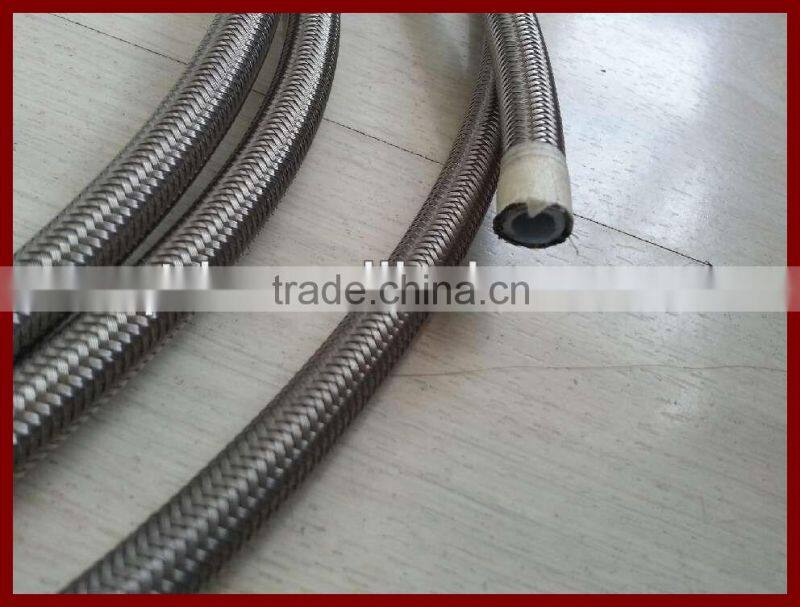

teflon inside hose

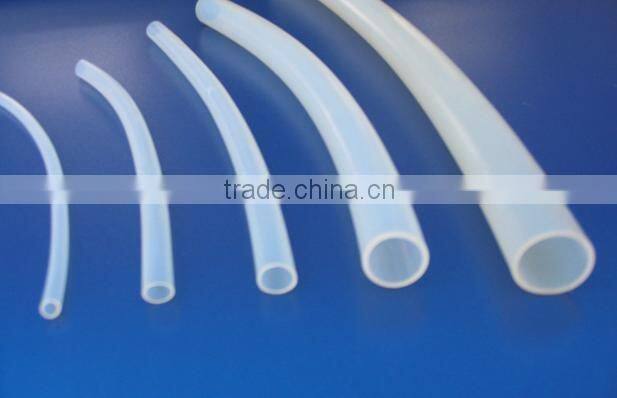

smooth ptfe hose:

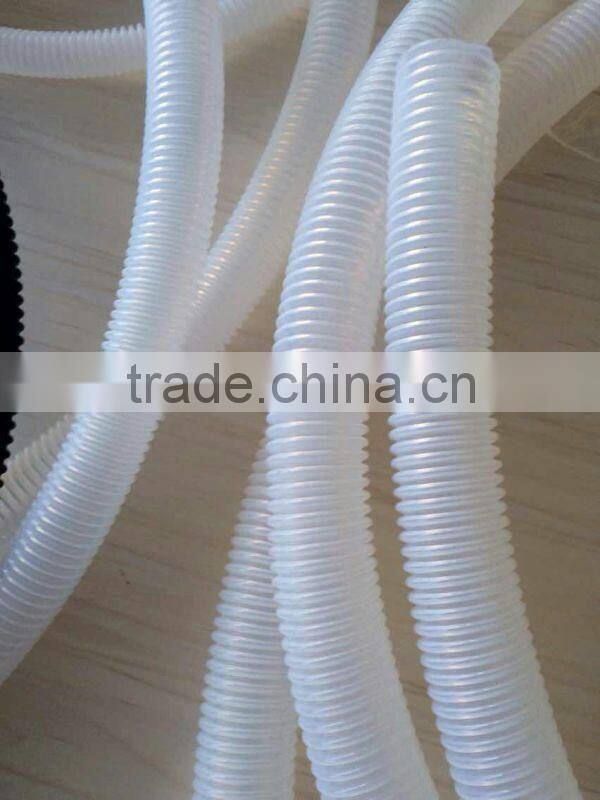

corruated ptfe hose:

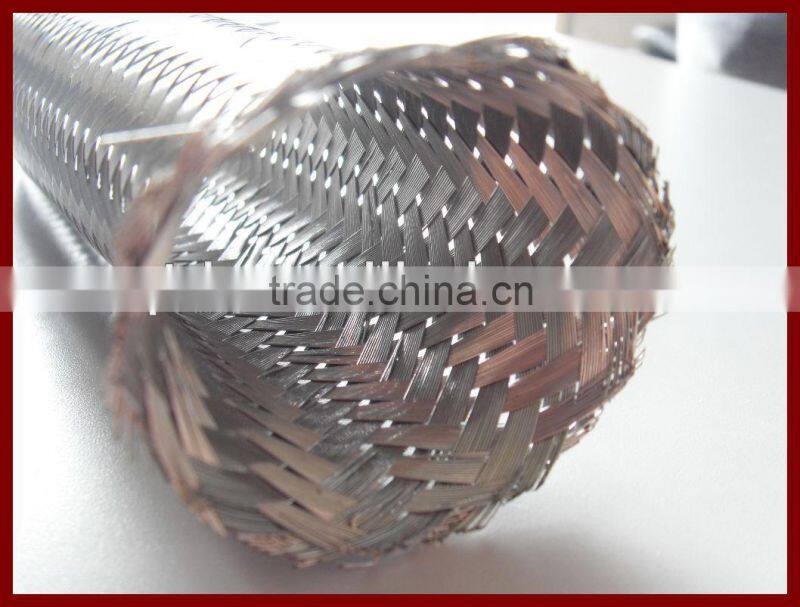

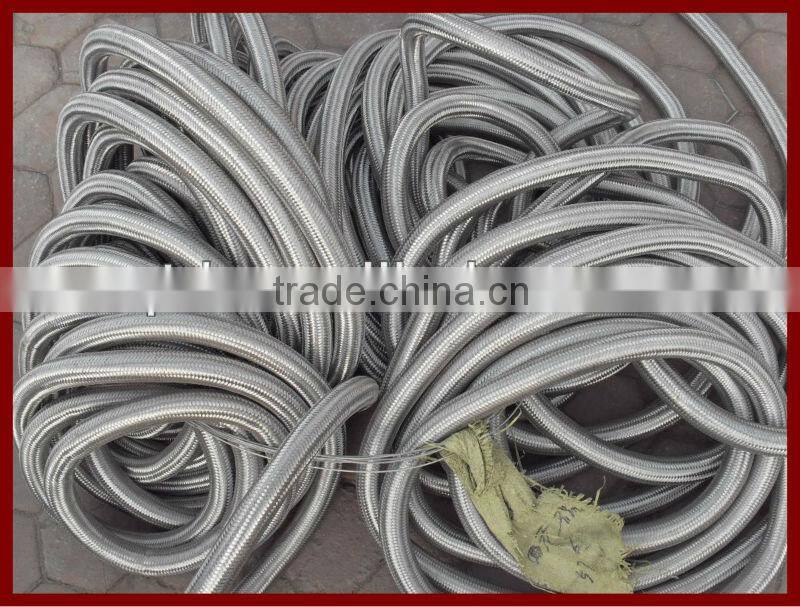

teflon hose outside:

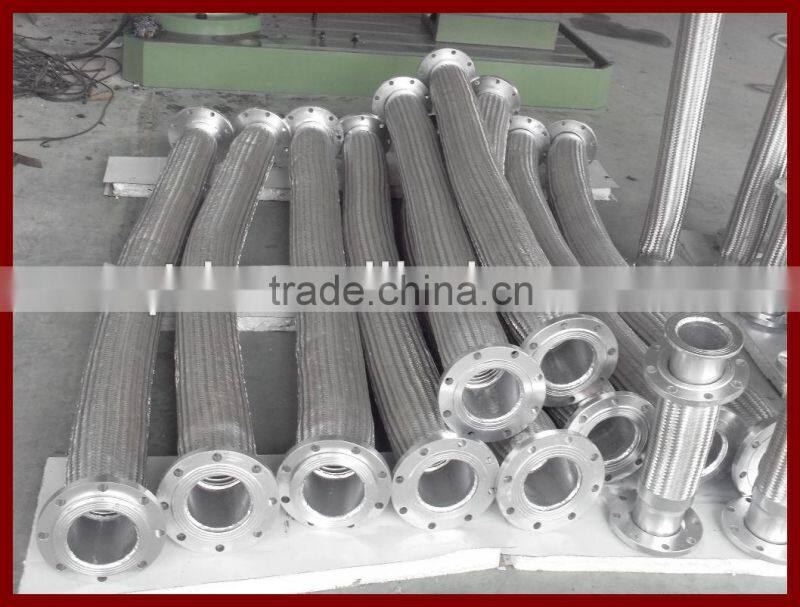

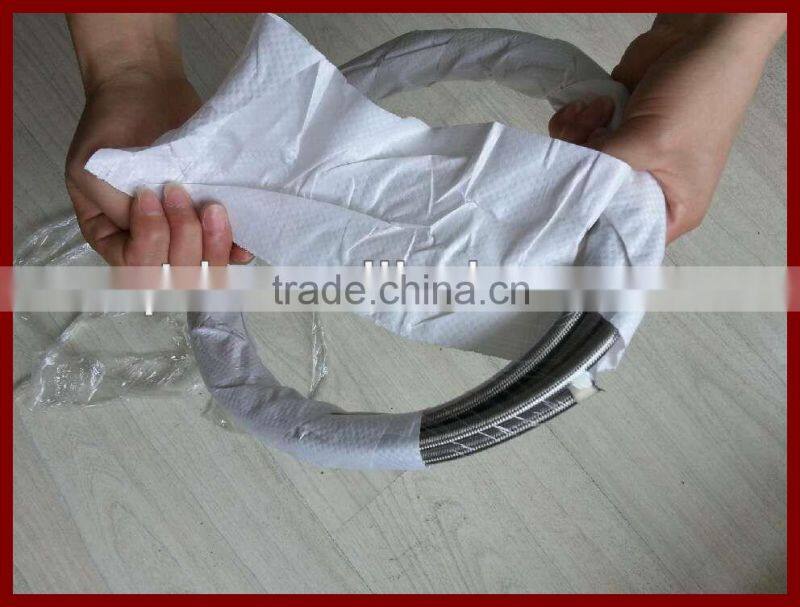

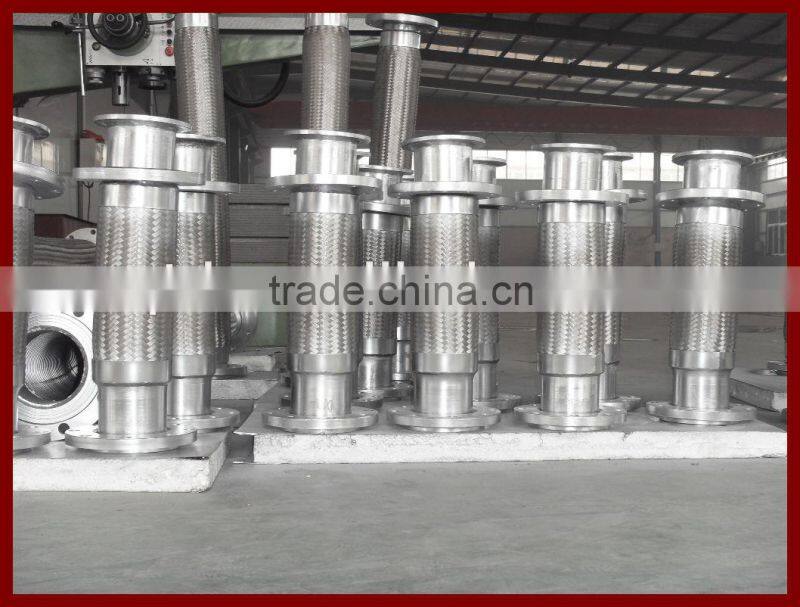

other Sample picture:
Corporation Certificates:
Winning Projects:
If any help, please contact me at any time:
