Home > Electrical & Electronics > Battery, Storage Battery & Charger > Lithium Battery > Rechargeable LiFePO4 26650 Li-ion Batteries 3.2v 2300mah

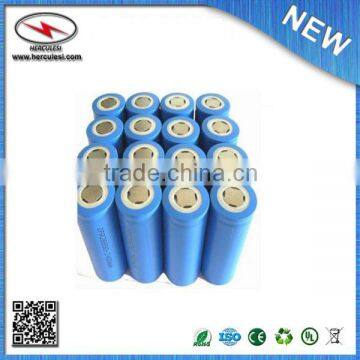

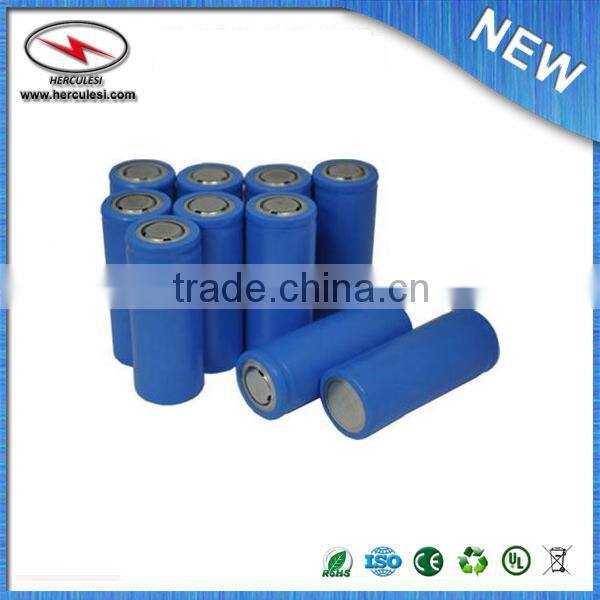

Rechargeable LiFePO4 26650 Li-ion Batteries 3.2v 2300mah

Rechargeable LiFePO4 26650 Li-ion Batteries 3.2v 2300mah thumbnail-1
Rechargeable LiFePO4 26650 Li-ion Batteries 3.2v 2300mah photo-1
US$ 1 - 1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Lithium Battery
Voltage:
Other, 3.2v, 3.2v
Capacity:
10 - 20Ah, 2300mah
Contact Supplier Request Quote Chat Now
Shenzhen Herculesi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Lithium Battery
Voltage Other, 3.2v, 3.2v
Detailed Product Description




70A Discharge High Power LiFePO4 Battery Pack 3.2V 2300mAh 26650 For Remote Control Series









Quick details:



Nominal voltage: 3.2V

Typical capacity:  2300mAh

Dimension: 26*65mm.

Continuous discharge current: 15C

Pulse discharge current: 30C (maximum)

Working voltage: 3.2 to 2.0V

Charging temperatures: -10 to 70°C

Discharging temperatures: -20 to 70°C

About 2,000 cycles to 80% with 100% DOD under 20 to 25°C




Specification:



NO. Items Specifications
1 Charge cut-off voltage 3.65V
2 Nominal voltage 3.2V
3 Minimal capacity 2300mAh @ 1C Discharge
4 Nominal capacity 2300mAh @ 1C Discharge
5 Charge current 1C
6 Standard charging method 1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to <0.05C
7 Charging time Standard charge: 2.0 hours Ref
8 Max. charge current 5C
9 Max. continue discharge current 30C (Cell skin temperature cannot exceed 80°C)
10 Discharge cut-off voltage 2.0V
11 Operating temperature Charging: 0°C ~ 45°C
Discharging: -20°C ~ 60°C
(Cell skin temperature cannot exceed 80°C)
12 Storage temperature/humidity Temperature 0°C ~ +35°C
Humidity 65%±20%RH
(Recommended to store 23 ± 5°C for long term storage)
13 Cell Weight 80.0g±1.0g
14 Cell Dimension Length: 65.0±0.3 mm
Width: 26.2±0.2 mm

Applications:
  • Lumination devices, flashlight,
  • lawn lamp, emergency light, caution lamp, mining lamp,
  • two-way radio, Smoke alarm, gas detector
  • Mobile phone, Digital camera
  • Bluetooth headsets, Wireless mouse and other device
  • Electric vehicle, Solar car
  • UPS, Electric bicycle
  • Electric scooter, Golf trolley
  • Electric wheel chair, Electric boat
  • Cleaner, Grass cutter, vacuum cleaners
  • Submarine, Unmanned air vehicle
  • Medical and military use
  • Robotics
  • Wireless facilties
  • Etc





Features:

a. Low self-discharge and good discharge performance at low-temperature.

b. Strong charging acceptance and quick-charging capability.

c. Strong over-discharge resistance and charge retention.

d. Maintenance-free and no acid or water for maintenance in usage.

e. Large current discharge performance and have obvious advantages in start up and climbing.

f. High-temperature performance.

g. Eco-friendly.

h. Lightweight and small in size.

i. Safety: no explosion and fire




 Rechargeable LiFePO4 26650 li-ion batteries 3.2v 2300mah

 Rechargeable LiFePO4 26650 li-ion batteries 3.2v 2300mah





What Applications of our Lithium ion battery packs?

1. Emergency power supply, LED light & flashlight: headlamp, emergency light, solar flashlight, searchlight, lantern, bicycle light, bright flashlight, high-end lamp, military flashlight and so on.
2. Home appliance products: electric vacuum cleaner, eletric sweeper, water meter, gas meter, electrinc children toys, electric warm shoes, electric blancket, TV remote control (RC) and so forth.
3. Consumer applications, communicate & telephone equipment: MPS, tablet PC, laptop, Bluetooth earphone, power bank, portable DVD player, speaker, microphone, sound equipment, audio, digital camera and others
4. Outdoor sports products: camping light, mountain bike light, solar emergency light, self-defense flashlight and that .
5. Electronical tools & electric transportation vehicles: electric bike, electric car. e-scooter, electric motor and all that.
6. Solar lawm, remote control
7. Medical device
8. Backup power supply
9. Electrical and hobby
10. UPS, GPS









About Us

We specialized in LiFePO4 New energy vehicle power Battery, Lithium ion Battery Engine Start Battery, Backup Storage Battery for Communication base stations, solar & wind hybrid energy storage and household energy storage battery system solutions.

Rechargeable LiFePO4 26650 li-ion batteries 3.2v 2300mah

How to Maintain Lithium Battery

Rechargeable LiFePO4 26650 li-ion batteries 3.2v 2300mah

Lithium batteries are presently the most commonly used energy storage devices on electric bike, electric scooter, golf car, mobile phones, laptops, digital cameras and other electric devices. Learning how to maintain lithium batteries can not only prolong battery lifetime but also protect your device from potential damage.

1. Charge new batteries. It's not necessary to charge over 12 hours when first used. When a device powered by batteries is purchased, sellers will usually tell us the batteries must first be charged 12 hours before using. Actually, this is unnecessary. Unlike common Ni-CD or Ni-MH batteries, most lithium ion batteries are activated before leaving the factory. Due to their low self-discharge, it’s unnecessary to charge lithium ion batteries for such a long time when new. Lithium ion batteries are ready for use when the charger indicates so, and they will reach their best capacity after 3 or 5 cycles.

2. Use appropriate chargers. Many people take great care with their electronic gadgets, but often neglect the consequences of bad chargers on their lithium ion batteries. When choosing a charger, the original charger is the best choice. If that's unavailable, a high quality charger that has an overcharge protection function, or a brand name charger will do. A low quality battery charger can lead to shorter run times, premature battery failure, or even fire or explosion.

3. Avoid frequently over charging. Over charging with a low quality charger may let the battery's interior rise to a high temperature, which is bad for the lithium ion battery and charger. Thus, simply fully charging is good enough - overcharging will make your lithium battery into a little bomb if overcharge protection function is missing.

4. Avoid touching metal contacts. All batteries' contacts need to be kept clean for best performance. When carrying batteries around, do not let the contacts touch metal objects such as keys; this could cause a short circuit, damaging the battery or potentially resulting in a fire or an explosion.

5. Avoid using often in high or low temperature environments. Lithium ion batteries have optimal working and storage temperatures. If they're continually used in extreme temperature environments, this will negatively affect battery use time and useful cycles.

6. Avoid long periods without using or recharging. If batteries will be left unused for 3 months or more, partially recharge them (to around 30-70% of capacity, depending on planned storage time), then store the device to prevent battery damage. You may need to take the device out of storage and charge again after a few months.

What 10 Tips should be note when using Lithium ion battery?

Rechargeable LiFePO4 26650 li-ion batteries 3.2v 2300mah

Warnings:

Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.

Does not use or leave the battery near a heat source as fire or heater

Use the battery charger specifically for that purpose when recharging.

Do not reverse the position and negative terminals.

Do not connect the battery electrodes to an electrical outlet.

Do not discard the battery in fire or a heater.

Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

Do not strike, trample or throw the battery.

Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

Why choose us?

Rechargeable LiFePO4 26650 li-ion batteries 3.2v 2300mah

1. Quick response to clients' enquiries within 24hours.

2. Best solution provided by our experienced team and professional engineers.

3. More than 10 years experience in producing battery products for various application.

4. Value quality and long-term cooperation to reach win-win relationship.

5. Our Partneers thoughout 103 countries.

6. 365 companies used our products which are very satisfied.

What is the Payment method and Shipping?

1. Payment: T/T, Western Union, Paypal, Trade Assurance, L/C Webmoney and so on.

2. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
3. By Air or by Sea for batch goods, for FCL; Airport/ Sea Port receiving;
4. Customers specifying freight forwarders or negotiable shipping methods!
5. Delivery Time: 1-4 days upon payment receipt
6. OEM & ODM are welcome.

Rechargeable LiFePO4 26650 li-ion batteries 3.2v 2300mah

How to contact us?

1. Skyepe: lamye.david

2. MSN: david_lif*

3, Trademanager: herculesi

4, E-mail: david*

5, Tel: 0086-755-86327286

6, Fax: 0086-755-86327276

7, Please use @ instead of *

Rechargeable LiFePO4 26650 li-ion batteries 3.2v 2300mah
