2016 hot sale High pressure hydraulic rubber hose

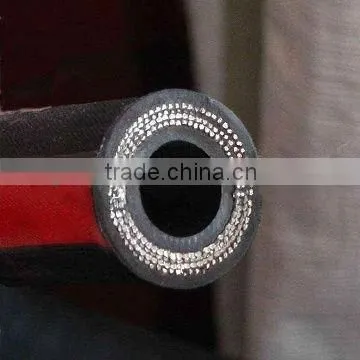

Product Structure rubber hose
1.Tube:Oil resistant synthetic rubber
2.Reinforcement:Four high tensile steel spirals
3.Cover:Synthetic rubber with high ozone,weather and heat resistance
Working temperature rubber hose
1.Oils -40°C to 100°C
2.Air -30°C to 50°C
3.Water emulsion Under +80°C
Application rubber hose
1.Used in mine hydraulic support,oil exploration,crane transport,mining equipment
2.Carry hydraulic fluids such as mineral oil,soluble oil,feuls,lubrication,water,emulsion,oil-water emulsion and air.
Below is our mainly products catalog:
We are Hydraulic Hose,High pressure Hose,rubber hose and hydraulic hose assembly manufacturer and exporter in China. Our main Hydraulic Hose ,Rubber hose Products:
1) Steel Wire braided Hydraulic hose ( One or Two steel wire braided layer) :
SAE 100 R1AT / DIN EN 853 1SN ,

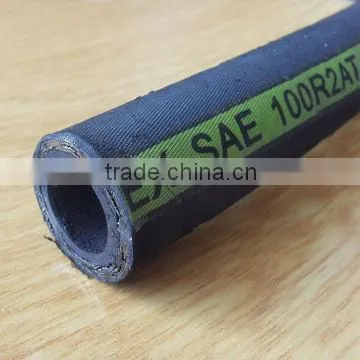

SAE 100 R2AT / DIN EN 853 2SN;
DIN-EN 857 1SC DIN-EN 857 2SC ;
SAE 100 R1 A / DIN EN 853 1ST.
SAE 100 R2 A / DIN EN 853 2ST;
SAE J517 TYPE 100 R16
2) Multi Spiral Hydraulic hose ( Four or Six high tensile steel wire spiral layer):
DIN EN856 4SP ,
DIN EN856 4SH ,
SAE J517 TYPE 100 R9
SAE J517 TYPE 100 R12
SAE J517 TYPE 100 R13,
3) Other Hydraulic hoses:
SAE J517 TYPE 100 R3 ,
SAE J517 TYPE 100 R5 ,
SAE J517 TYPE 100 R6 ,
4) Low Pressure Hose:
Air Hose, Steam Hose, Water Hose, Garden Hose, Nylon Hose
5) Teflon (PTFE)Hose, Flexible Metal Hose, SS Braided (EPDM) Hose, Brake Hose,Nylon Brake Hose and other Industry Hoses.
6) Hose couplings,Hose Adapters,Hose fittings,Hydraulic hose and assembly.
Hydarulic rubber hose for hydraulic system
A hydraulic rubber hose is different than a rubber hose in many ways. This type of hose contains a braided stainless steel sleeve inside of its rubber outer covering. This sleeve allows the hydraulic hose to withstand great amounts of pressure. The coupling of a hydraulic hose are crimped on with a special machine to create a fitting that will withstand the high pressures under which the system operates.
Many hydraulic rubber hose are rubber coated with a woven or braided nylon or stainless steel sleeve on the exterior as well as on the interior of the hose. The outer protective covering prevents the hose from becoming cut or chaffed when coming in contact with another part of the machine. Often a hydraulic hose will also contain a flexible Teflon inner tube at the center.
A typical hydraulic system will consist of at least two hoses. One is for high pressure while the other is a low-pressure return hose. The hoses connect to a hydraulic pump and carry the hydraulic fluid to an apparatus that is hydraulically operated, such as a hydraulic cylinder. The pump is either electrically driver or driven by a vehicle’s engine.
Many hydraulic rubber hose fittings are of the quick-disconnect type. This allows a hydraulic rubber hose to be removed and replaced without having to bleed the entire system of air. Many farming and construction implements utilize this type of quick-disconnecting fitting to aid in the changing of tools and power providers. For example, a hydraulic jack hammer can be used on a crane and then switched to be used on a skid steer type of tractor, such as a Bobcat.
Due to the reinforcing layers of a hydraulic rubber hose, this type of hose is much stiffer and heavier than a non-hydraulic version. The hoses must be constructed to fit an application with slow, generous bends. Typical right angle bends are completed using a hard line fitting bent to the proper angle required. Many hydraulic hoses consist of multiple sections of flexible hose and hard lines connected in series.
Hydraulic rubber hose must also be able to withstand heat. Hydraulic system often build up heat as the process of pumping the hydraulic fluid and operating the implements generate a great deal of heat. Hydraulic cooling system are often incorporated into a hydraulic system. Resembling a small radiator or a finned cylinder, the cooling unit prevents the fluid from reaching a dangerous operating temperature.

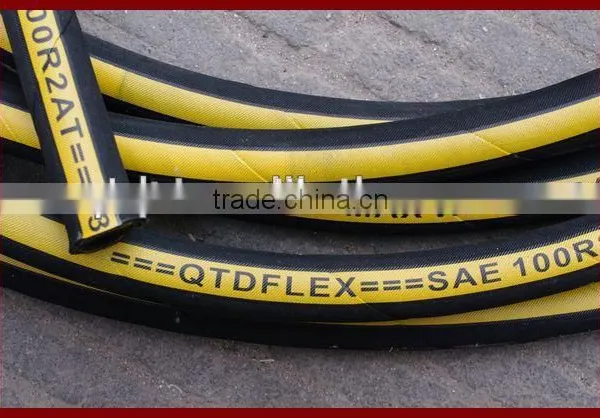

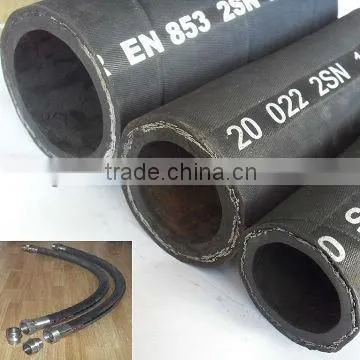

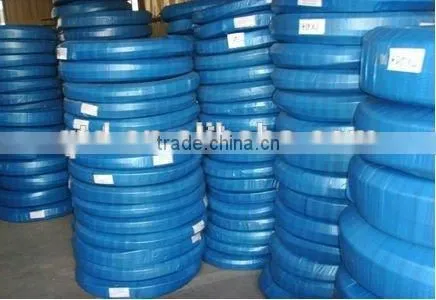

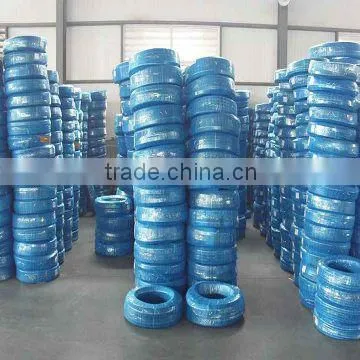

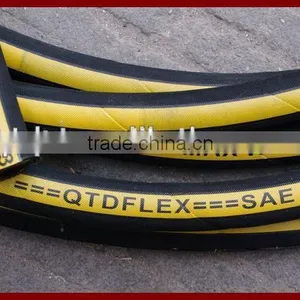

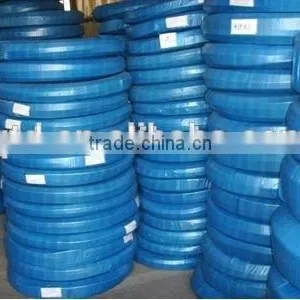

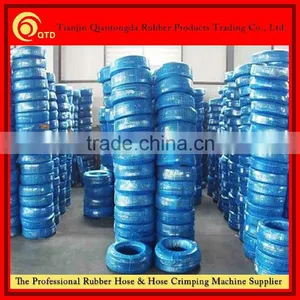

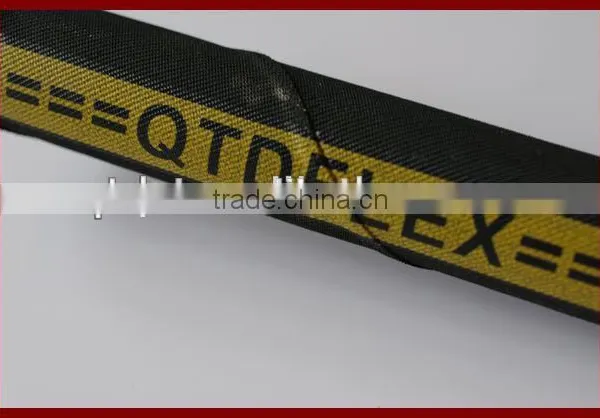

The pictures for rubber hose:
Rubber Hose Product Detail:
Normal size |
Pressure |
Standard Length |
Net weight |
Measure -ment |
||||
size |
I.D. |
O.D. |
Layer |
W.P. |
B.P. |
|||
inch |
mm |
ply |
MPa |
M/roll |
Kg/roll |
M3/roll |
||
1/4 |
6.3 |
15.0 |
2 |
34.5 |
138.0 |
50 |
19.5 |
0.040 |
5/16 |
8 |
16.7 |
2 |
29.3 |
117.2 |
21.5 |
0.045 |
|
3/8 |
9.5 |
19.1 |
2 |
27.6 |
110.4 |
26.5 |
0.050 |
|
1/2 |
12.5 |
22.3 |
2 |
24.1 |
96.4 |
31.5 |
0.065 |
|
5/8 |
16 |
25.5 |
2 |
19.0 |
76.0 |
37.5 |
0.085 |
|
3/4 |
19 |
29.5 |
2 |
15.5 |
62.0 |
46.0 |
0.095 |
|
7/8 |
22 |
32.5 |
2 |
14.0 |
56.0 |
63.0 |
0.125 |
|
1 |
25 |
38.2 |
2 |
13.8 |
55.2 |
71.0 |
0.180 |
|
1-1/4 |
31.5 |
47.9 |
2 |
11.2 |
44.8 |
25 |
55.0 |
0.110 |
1-1/2 |
38 |
55.0 |
2 |
8.6 |
34.4 |
25 |
62.5 |
0.160 |
2 |
50 |
67.2 |
2 |
5.2 |
20.8 |
25 |
85.0 |
0.220 |
For the rubber hose, welcome to contact with me for more products details.
