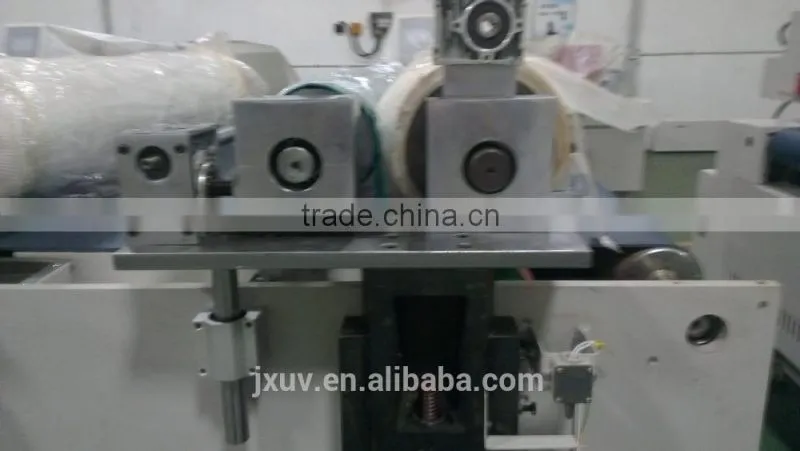

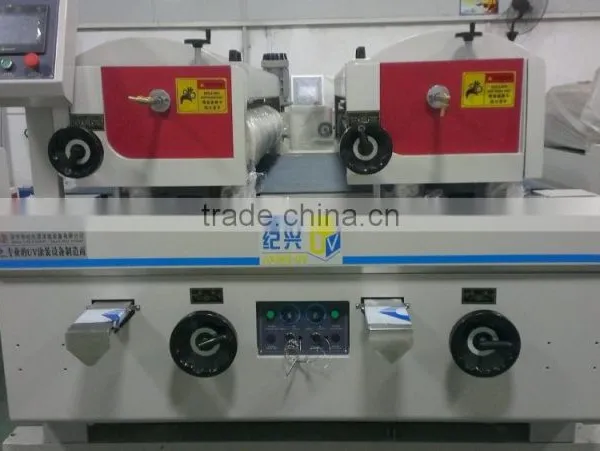

Full Precision Double Roller Coater with 600/1300/2000mm
Features:
1.Multi-function coater with two rollers can be applied to the surface coating of a variety of flat plate, such as wood,plastic,metal,solar glass,etc.
2.Flat painting film which coated by this machine is smooth,delicate, no color variation.
3.The separated structure design of this machine makes it easy to disassemble and clean.
4.This machine is suitable for the coating of a variety of paints such as UV,PU,NC and waterborne coatings.The remained paint can be recycled and make no-waste.
5.We have the full coating production line,such as sander machine,stain brush machine,curtain painting machine,putty filly machine,uv curing machine,covey machine and dust clean machine,etc.
6.Optional: the machine with PLC board for fully automatically operation.
| Model | JXRAII-600 | JXRAII-1300 | JXRAII-2000 |
| Working Width(mm) | 600 | 1300 | 2000 |
| Working Thickiness(mm) | 2~80 | 2~80 | 2~80 |
| Feeding Speed(m/min) | 0~15 | 0~15 | 0~15 |
| Application Roll Size(mm) | 750*Φ240 | 1450*Φ240 | 2150* Φ260 |
| Dortor Roll Size(mm) | 750*Φ150 | 1450*Φ150 | 2150* Φ180 |
| Shortest Working Length(mm) | 250 | 250 | 300 |
| Machine Weigh(kg) | 900 | 1200 | 1700 |
| Convey Power(kw) | 0.75 | 1.5 | 2.2 |
| Application Roller Power(kw) | 0.75*2 | 1.5*2 | 2.2*2 |
| Total Power(kw) | 3.75 | 6.75 | 10.7 |
| Machine Size(mm) | 1840*1620*1550 | 1840*2350*1550 | 1840*3050*1550 |
1. Wooden standard carton is suitable for the export and long transportation,free fumigation.
2. Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.), We arrange the local shipment,which’s easy for you to control the transportation cost.
Service:
1,Professional in woodworking machinery Especially in Paint Finishing System and Sanding Machines Series.
2,Supply single set machine as well as whole production lines.
3, Solve all kinds of technical problems and provide professional service.
4,12 Hours online service
Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd
Established in 2003, Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd. is engaged in the production, sale and service of UV surface&edge coating equipments, such as Roller coaters, UV curing equipments, Curtain coaters, Spraying equipments, Robot series and so on.
Jixingyuan is currently the fastest growing painting equipmet company in China market. it has a good reputation and ambitious development goals. Also own an excellent team, keep learning experience of domestic and oversea. Struggle for becoming the leading enterprise in the field of painting equipment.
Our Team:
1. What is the UV coating machine MDF warranty?
Warranty: Warranty is valid for 12 months in the hypothesis of machinery use for an 8-hour
working shift. Warranty does not cover parts subject to normal wear or damaged by improper
use, incident or negligence of the Buyer or by reasons external to normal use (i.e. change in the
power net, caused by thunderstorm, etc.) Transport costs and labour are excluded.
2. Why choose JXY?
1,Professional:We are professional in woodworking machinery field for more than 10 years.
2,Excellent:Our machines get great reputation and produce nice quality product for customers all over the world.
3,Economial:We offer the good price with great quality because we do high-volume production manufacturer.
