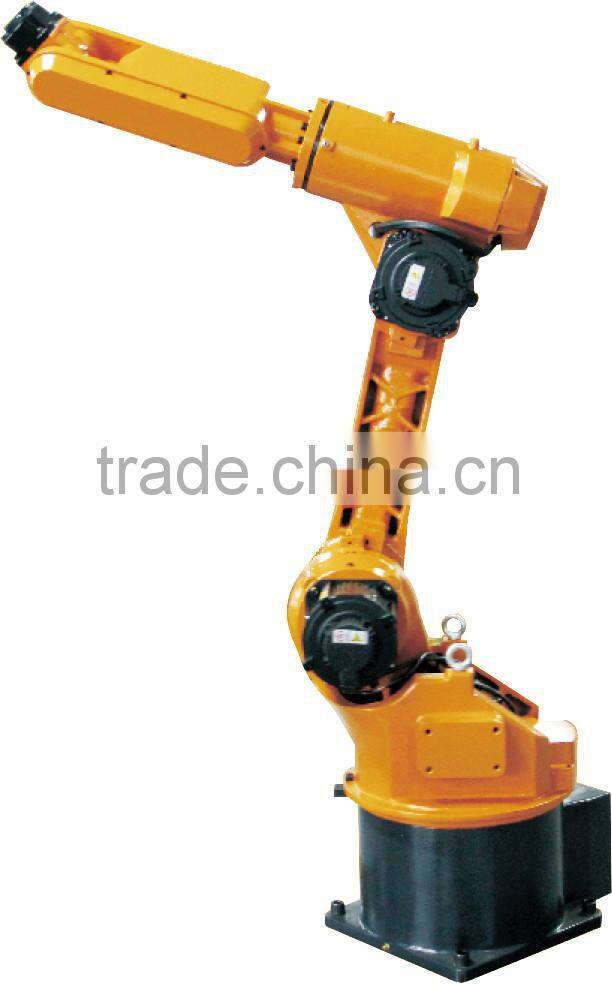

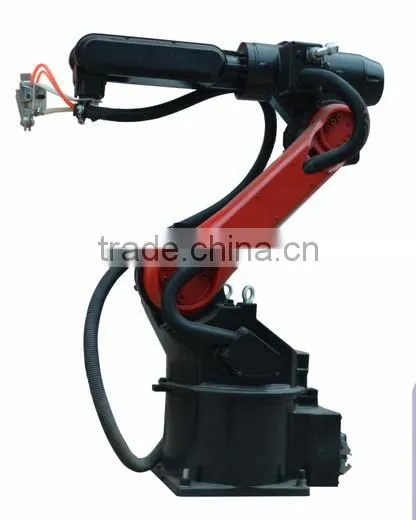

UV,PU,NC or water-based paint robot machine instead of human
Description:
1. The entire series including the Robot Arm, Rotating Supply Platform,
Spaying and Control System and Oil Supply System.
2.Adopted Japan ASAHI-AGB40 automatic spraying guns.
3.Display Panel can be translated in English or as per your request
language.
4.Different kinds of installation, such as vertical, inclined and
hanging saves the spraying space and cut the cost.
5.Can be widely equipped with exterior equipment.
6.Action Radius=2050mm, Max Speed=2500m/s.
7.Integrated equipment guarantee: 1year (except spraying guns and
diaphragm pump!)
Technical parameters
Items |
Specifications |
||||
Model |
JX2050-A |
||||
Freedom of motion |
6Shaft |
||||
Drive style |
Holoaxial AC Servormotor +Absolute value coder |
||||
Placement style |
Standing or hoisting |
||||
Max Action Range |
Arm |
J1 |
Involution |
360° |
|
J2 |
Nether Action Angle |
180° |
|||
J3 |
Upper Action Angle |
+5°-163° |
|||
Wrist |
J4 |
Rotation 1 |
±260° |
||
J5 |
Action Angle |
±140° |
|||
J6 |
Rotation 2 |
±260° |
|||
Accepted Inertia Moment |
Arm |
J1 |
Involution |
34.1/N.M |
|
J2 |
Nether Action Moment |
34.1/N.M |
|||
J3 |
Upper Action Moment |
9.8/N.M |
|||
Wrist |
J4 |
Rotation 1 |
0.97/kg. m² |
||
J5 |
Action Moment |
0.4/kg. m² |
|||
J6 |
Rotation 2 |
0.1/kg. m² |
|||
Max Speed |
2.0M/S |
||||
Place overlap precision |
±0.5mm |
||||
Max Vertical Distance |
2767mm |
||||
Max Vertical Distance |
2035mm |
||||
Rated Load |
10KG(spraying guns included) |
||||
Temperature Application |
0°-45° |
||||
Humidity |
20-85%RH without Frost |
||||
Display Panel |
40Words,12Rows,4.7″No Backlight LCD |
||||
Power |
3Phase:AC200V(+10%-15%)5060HZ(-2%- +2%) |
||||
Weight |
370KG |
||||
Package
wooden standard carton is suitable for the export and long transportation,free fumigation.
Payment
We usually accept T/T, payment terms : 30% TT deposit, the balance before shipping.
Shipment
Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can
help you to handle the export ,we can accept the factory price(EXW.),
We arrange the local shipment,which’s easy for you to control the transportation cost.
Warranty
- 1 years warranty for the machines.
- Any warranty shipping cost to us is responsible by buyer
FAQ
What is the curtain coating machine for wood floor ,Furniture warranty?
Warranty: Warranty is valid for 12 months in the hypothesis of machinery use for an 8-hour
working shift. Warranty does not cover parts subject to normal wear or damaged by improper
use, incident or negligence of the Buyer or by reasons external to normal use (i.e. change in the
power net, caused by thunderstorm, etc.) Transport costs and labour are excluded.
What is the minimum quantity for order?
One set for order.
Do you have stock product to sell?
Maybe , It’s depend on which machine ,you like?
Do you inspect the finished products?
Yes, Each step of production products will be camed out inspection by QC department
before shipping.
How do you ship the finished products?
As the machines is too big , so usually it is shipping by Sea
What’s the Payment term?
Payment term: 30% TT deposit , the balance before shipment.
What’s the delivery time?
Within 25 days after get the payment
Why choose LINZE?
1,Professional:We are professional in woodworking machinery field for more than 10 years.
2,Excellent:Our machines get great reputation and produce nice quality product for customers all over the world.
3,Economial:We offer the good price with great quality because we do high-volume production manufacturer.
How to contact me?
More details please contact : Alice Xia
Skype ID: alicexia568
email : alice (at )
Company name : Jixingyuan Technology Joint-stock Co., Ltd.
Add.: No.18, Yongxing North Road, Luohe Economic and Technological
Development Zone , Huai Nan city, AnHui Province,China
TEL.: 0086 554 2915218 | F: 0086 554 2915218
Mobile:0086 13309641539(whatsapp and wechat are available)
