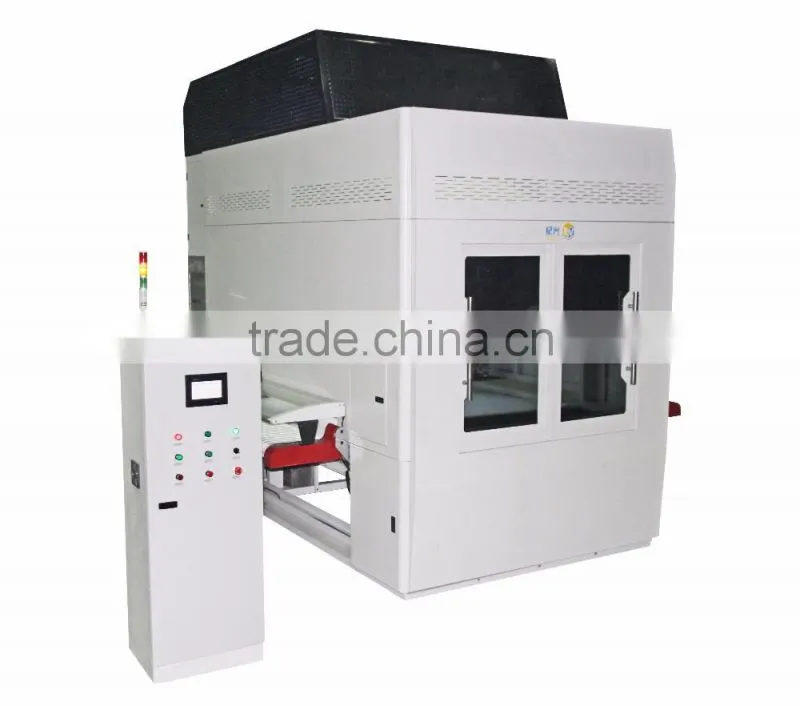

Help Center1300mm Wood /Furniture /MDF Automatic Spray Painting Machine
Related Products
-
Vacuum Spraying MachineUS$ 30,000 - 70,000MOQ: 1 Set -
1000mm Double Roller CoaterUS$ 11,500 - 12,000MOQ: 1 Set
-
Wooden Lines Automatic Spray Painting LineUS$ 10,000 - 12,000MOQ: 1 Set
-
Stone Paint/Multi Paint Automatic Spraying MachineUS$ 35,000 - 40,000MOQ: 1 Set
-
Slab Automatic Spraying MachineUS$ 30,000 - 40,000MOQ: 1 Set
Wood /Furniture /MDF Automatic Spray Painting Machine configuration & parameter
Specification:
|
Transport system: 1, Equipment fixed on the solid steel frame, conveying system configuration a imported PE conveying belt, antistatic, wear resistance, easy to change and convenient cleaning. 2, The cleaning system of conveyor belt is divided into two independent stages, the first stage is to scratch the surface of mechanical conveyor belt (paint recovery system), the second stage is to soak conveyor belt, and at the same time cleaning the surface, then to dry and air dry. 3, The paint from the conveyer belt surface scrape down can automatic recovery to the collection, if its chemical properties can be recovery, can all recycling. 4, Precision cleaning system design and operating criteria the solvent daily consumption to a minimum. 5, The conveyor speed use inverter control for different speed painting requirements.
| |
Technical parameters | |
Model:JXSV-SAS-1300 |
JXLV-SAS-1300 |
Overall dimensions(mm): |
4370 × 5250 ×3160 |
Total power(kw): |
4.64 |
Effective working width(mm): |
150-1300 |
Effective processing length(mm):300-3000 |
300-3000 |
Effective processing thickness(mm): |
3-50 |
Oil drive: |
Kremlin plunger pump |
Air pressure(Mpa): |
0.4-0.6 |
Servo system(kw): |
1.5 Yaskawa |
PLC: |
C6OR FP – X Panasonic |
Gun brand: |
Kremlin KREMLIN high pressure spray gun |
Gun caliber(mm): |
0.37 |
Number of blast gun: |
4 |
Import and export fan powerkw): |
5.5 Import: Y132M2-6 7.5 Export: Y132S 2-2 |
Import and export fan brand: |
HP(Hewlett Packard) |
Delivery(finish)speed(m/min): |
0 ~ 5 |
Delivery ways: |
Belt type |
Paint types: |
PU, UV, NC, AC, water-based paint,etc |
Control system: |
Optical sensors |
Tounch screen: |
MT - 610i (exterior: 280 x 210 x 50) |
Light curtain: |
1.5 m measuring light wheelbase 10mm |
Guide rail: |
Taiwan HGW45HC - 2300 2strip |
Machine weight(kg): |
5500 |
