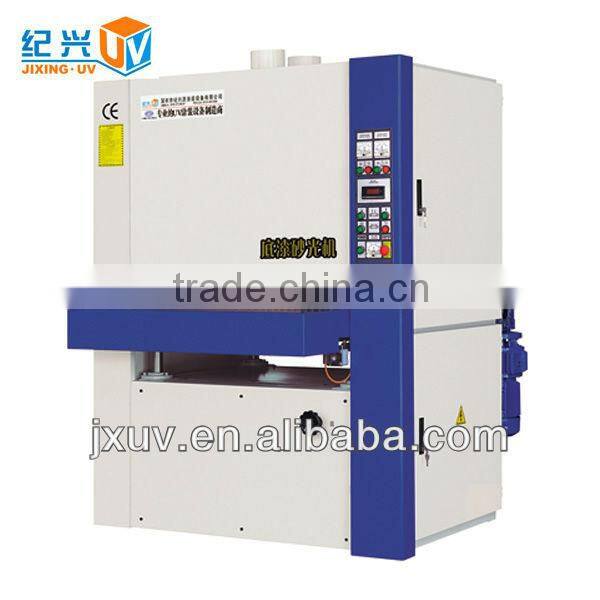

UV paint Lacquer Sander Machine
Belt Sander Polishing Machine
Lacquer Polishing Machine

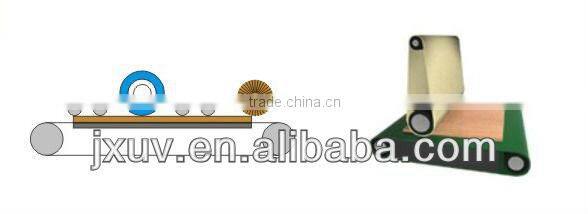

Running Mode:

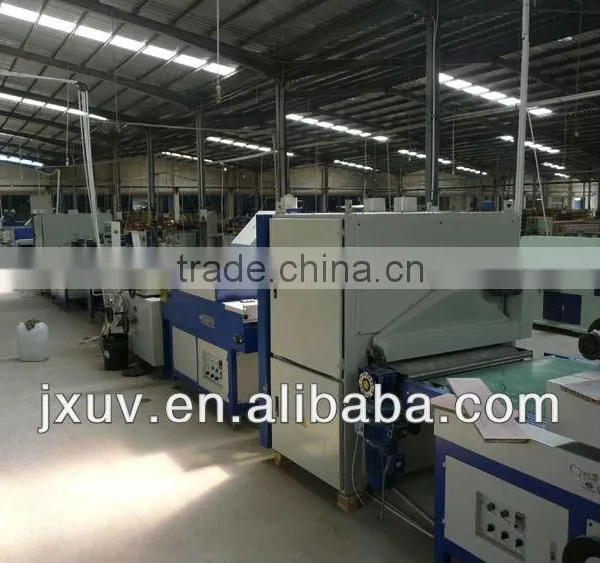

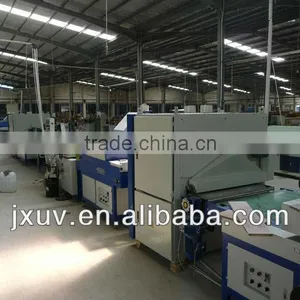

Production Line:
Machine Specification:
The machine is specially designed for lacquer grinding after coating,which is suitable for all kinds of flat products,especially for wood panel.After sanding the painting surface is smoother.
The body of machine is made of steel plate which have scissor,break and welding.
The machine is adopted soft bottom sanding wheel which can grind the rough coating surface and reduce the panel pressure at the same time.
The abrasive belt,conveying and polishing are controlled by independent inverter will coordinate better and suitable for many products.
The S pattern for up and down is adopted by four-post mechanism may not jolt and have small error.
For tiny displacement to turn the hand wheel.
Controlling pressure:if the pressure is insufficient,the equipment will not work.
Equipped malfunction light to ensure appear urgent situation ,you can timely dispose it.
A special device for dusting let the effect of dusting better.
Technical Parameter:
Model |
JXR-R-P600 |
JXR-R-P1000 |
JXR-R-P1300 |
Working Width(mm) |
30~600 |
30~1000 |
30~1300 |
Working Thickness(mm) |
2~110 |
2~110 |
2 ~110 |
Feeding Speed (m/min) |
6~38 |
6~38 |
6~38 |
Belt Size |
650*1700 |
1020*2200 |
1320*2200 |
Sanding Roll Size |
190 |
190 |
240 |
Polishing roll size |
190 |
190 |
190 |
Work Voltage(mpa) |
0.55 |
0.55 |
0.55 |
Wind Velocity(m/s) |
25~30 |
25~30 |
25~30 |
Convey Power(kw) |
1.5 |
1.5 |
1.5 |
Polishing roll power (kw) |
4 |
4 |
7.5 |
Belt Power(kw) |
5.5 |
7.5 |
11 |
Total Power(kw) |
11 |
13 |
18.5 |
Machine Size(mm) |
1800*1000*2040 |
1800*1300*2040 |
1800*1600*2040 |
Machine Weight(kg) |
1600 |
1800 |
2000 |
