Wood Sanding Machine/Automatic Sanding Machinery
USD $10,000 - $20,000
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Shenzhen
- T/T
You May Like
- GuangZhou HT Advanced Hot Sell Industrial Grade Palm Sander, Sanding Equipemnt, Angle Grinder, Orbital Sander
- Beltgrinder is manufactured Multi-purpose Belt Sharpener distributors
- Belt Grinding Machine, Distributor of Abrasive Belt Grinding Machines
- SNUOK Triangle Belt Sander Tube Polisher
- Multifunctional industrial belt sander Aluminum copper belt sander edge grinding and polishing machine
- Hand abrasive belt grinder Deburring grinder Belt metal polishing machine
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JXY | Model Number: | JXR-R-P1300 |
Power Source: | Electricity | Variable Speed: | Yes | Rated Voltage: | 380V |
Rated Input Power: | 20kw | Frequency: | 6-38m/min | Sand Pad Size: | 1320*2200 |
Application: | plane wood | Weight: | 2T |
Product Description

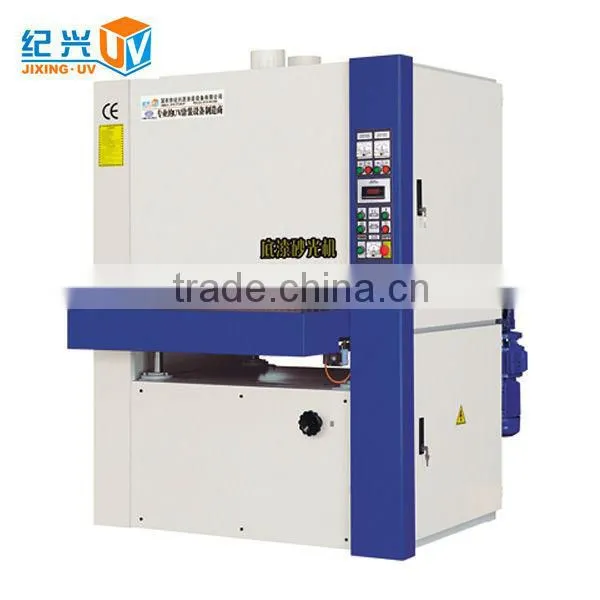

Sanding machine / belt sander machine /
Plywood sanding machine
(JXR-R-P1300)
Description:
- sanding machine is specially designed for lacquer grinding after coating,suitable for all kinds of flat products especially wood and panel
- The surface will be uniform and smoothly after grinding.
- sanding machine adopt soft bottom sanding wheel which can grind the rough coating surface.
- flat and reduce the pressure of panel at the same time .
- sanding machine conveying and grinding of the sanding belt all adopt frequency conversation adjustment system cooperating better and suitable for many products.(uv board, wood, metal,
- glass, tile, ceramic).
- sanding machine Integration of the whole body and the fire treatment of key area make it more stable.
Parameters:
Model | JXR-R-P1300 |
Effective working width(mm) | 30~1300 |
Thickness of sanded panel(mm) | 2~110 |
Minimum fabrication length(mm) | 300 |
Feeding speed(m/min) | 6~38 |
Abrasive belt power(kw) | 11 |
Convey power(kw) | 1.5 |
Exhaust speed(m/s) | 25~30 |
Working air pressure(mpa) | ≥0.55 |
Total power(kw) | 20 |
Machine weight(kg) | 2000 |
Machine size(mm) | 1800*1600*2040 |
Packaging&shiping:
1. Wooden standard carton is suitable for the export and long transportation,free fumigation.
2. Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.),
We arrange the local shipment,which’s easy for you to control the transportation cost.
Warranty:
- 1 years warranty for the machines.
- Any warranty shipping cost to us is responsible by buyer
- Any warranty shipping cost to us is responsible by buyer
Certification of quality :
About us:
Jixingyuan is currently the fastest growing painting equipmet company in China market. it has a good reputation and ambitious development goals. Also own an excellent team, keep learning experience of domestic and overseas. Struggle for becoming the leading enterprise in the field of painting equipment.
