Home > Products > Sander Machine/Sanding Machine > 600mm Floating Primer Sanding Machine

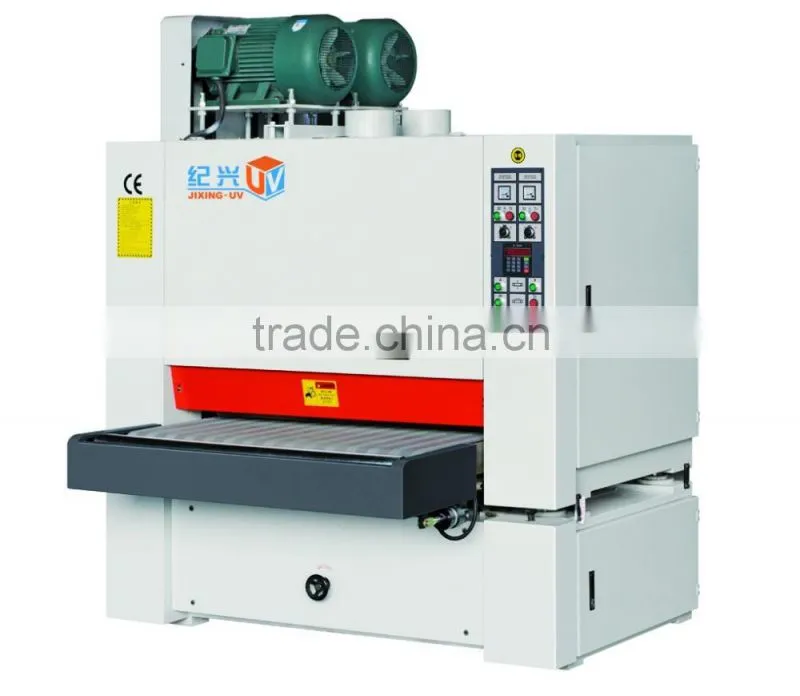

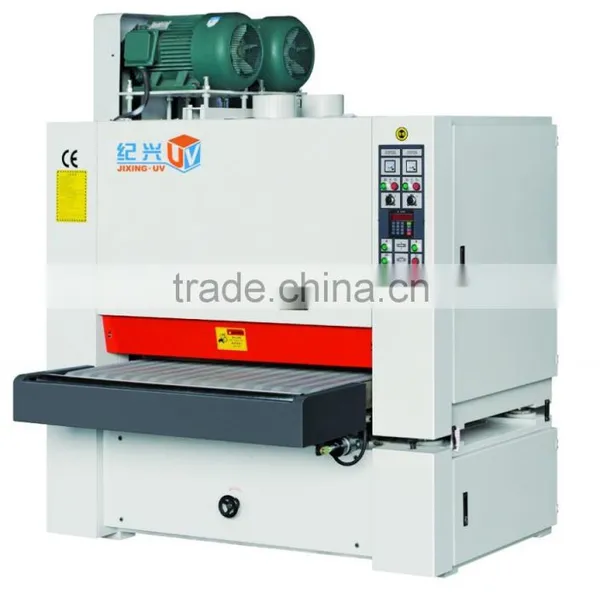

600mm Floating Primer Sanding Machine
- 10 Set / Sets per Month
- SHANGHAI PORT
- T/T Credit Card
Product Details
Type: | Other, Sander, Coating Machine | Place of Origin: | Anhui, China | ||
Brand Name: | JXY | Model Number: | JXR-R-P600 | Voltage: | 380V |
Power(W): | 11 | Dimension(L*W*H): | 1780x1140x2000 | Certification: | ISO9001 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
600mm Floating Primer Sanding Machine Configuration & Parameter
Machine Configuration
1, the machine is designed for sanding primer paint after coating designed for a variety of flat products, especially flat wood as the main, by this machine sanding smooth finish, no white edges.
2, the body frame using channel plate bending welding, heavy, stable, and annealed, long-term will not be deformed.
3, belt operation with frequency control imported converter, for a variety of characteristics of paint.
4 feed rate with variable speed control, variable speed.
5, running Cots using 25SH Shore soft roller, elastic, clear white edge stripes phenomenon, high precision, and long service life.
6, means the United States 3M polishing wheel (optional), frequency control, height adjustable, but will likely eliminate the phenomenon of stripes.
7, the conveyor belt in a 3mm thickness imported steel cord conveyor belt, wear-resistant and durable.
8, belt motor with frequency control system, adjust the speed control knob on the control panel to change the belt line speed.
9, lifting sand frame by "↓ ↑" to achieve, by the thickness of the display table shows the figures for minor displacement, lifting the motor shaft can be rotated to adjust the hand wheel.
10, The machine adopts photoelectric automatic control belt limit, five circuit failure display device, shut down power protection, automatic fall protection device.
11, the delivery device by a feeding operation of the rubber conveyor belt work table and a continuously variable transmission, up tight cylinder and manual adjustment mechanism, sensing automatic machine control valve in the system. Feed rate can be adjusted by adjusting the shift lever on the CVT.
12, the safety device: On the control panel has an emergency stop button (lock), you can control the device rapidly automatic braking in the sand right and left side frame is equipped with two photoelectric switch; relay operation in low pressure pneumatic system pressure in the motor pulley on equipped with disc brakes, the parking brake to ensure rapid emergency occurs.
13, on the control panel is equipped with a fault indicator, such as insufficient air pressure, belt drive and others have about loss of control over the display.
14, the unique suction device, so that a better cleaning effect.
Customers need to take care of themselves with others:
1,50Hz, 380V three-phase power supply.
2,0.6MPA gas source.
Technical Parameter | |||
model | JXR-R-P600 | model | JXR-R-P600 |
Effective processing width(mm) | 30~600 | Belt power(kw) | 5.5 |
Sanding sheet thickness(mm) | 2~100 | Polishing roller power(kw) | 4 |
Minimum processing length(mm) | 350 | Motor power(kw) | 1.5 |
Transmission speed(m/min) | 5~15 | Vacuum wind speed(m/s) | 25~30 |
Belt size(φ) | 650×1900 | Working pressure(mpa) | no less than 0.55 |
Sanding roll size(φ ) | 190 | Total power(kw) | 11 |
Polishing roll size(φ ) | 190 | Machine size(mm) | 1780×1140×2000 |
Independent frequency control and discharge cleaning brush roller | Large diameter soft roll, made of high quality rubber | ||
Dual frequency conversion control speed buff and soft rolls | Use blowing device for cleaning of the belt | ||
Microcomputer control conveyor bed height (automatic thickness measurement) | Infinitely variable feed system adjustable 5 ~ 20M | ||
With a high density of the brush roller |
|
