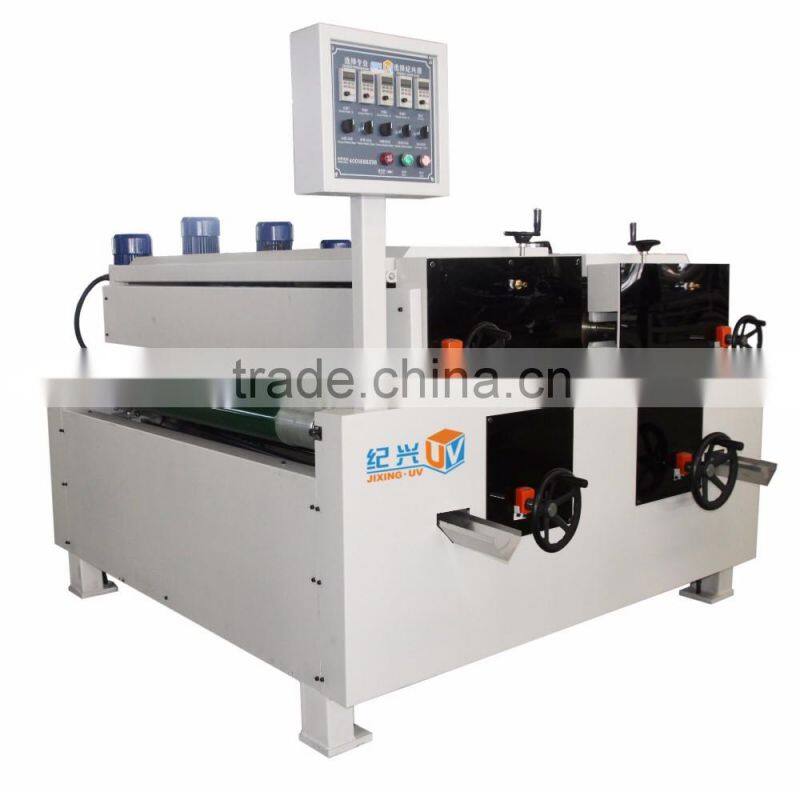

1000mm Full Precision Converse and Positive Roller Coater Configuration & Parameter
Machine Configuration
1, using imported materials rubber roller rubber roller diameter of 240mm, the roll surface by CNC precision machining.
2, rolls with a diameter of 150mm light big roll, chrome roll surface, cylindrical grinder by CNC precision machining.
3, equipped with imported materials scraper strong toughness, by the reducer adjustment, high accuracy.
4, the conveyor belt is 3mm slip, solvent resistance, to prevent the phenomenon from the floor, plus anti-deviation device.
5, running light roller and rubber roller by an independent drive and control gear, wherein the spacing between the adjustment screw through a worm machine, driven dovetail mechanism to complete.
6, the bearing sealing structure to prevent the penetration of paint.
7, the entire machine configuration Taiwan Delta converter and three-phase asynchronous motor worm gear.
8, the whole package, a diaphragm pump, a heating oil tank 20L.
Customers need to take care of themselves with others:
1,50Hz, 380V three-phase power supply.
2,0.5MPA gas source.
Technical Parameter. | |||
Model | JXRA V-1000 | model | JXRA V-1000 |
Effective processing width(mm) | 1000 | Effective thickness(mm) | 2~80 |
Feeding speed(m/min) | 5~15 | minimum transport length(mm) | 300 |
Coating roll size(mm) | 1150×φ 240 | Quantitative roll size(mm) | 1150×φ 150 |
Coating roll power(kw) | 0.75 | Quantitative roll power(kw) | 1.5 |
transmission power(kw) | 1.5 | Pearl NMRW075-30 series | Delta converter VFD015M43B(1) |
rubber roll power(kw) | 1.5 | Pearl NMRW075-60 series | Delta converter VFD015M43B(2) |
Electro-optical roller power(kw) | 0.75 | Pearl NMRW050-40 series | Delta converter VFD007M43B(2) |
Total power(kw) | 12 | Machine size (mm) | 1800×2060×1580 |
Note: Total double barrel heating power (kw): 18 | |||
Lift the feed through the worm double dovetail slot synchronization adjustment
| |||
Infeed end equipped with infrared sensor (optional) to prevent accidental injury or too thick plate plate | |||
High-strength tool steel blade, with a separate NMRW030-50 series reducer, to ensure the accuracy of the blade angle adjustment | |||
