wireless vehicle sensor for adaptive traffic control system m
The adaptive traffic control system is composed by wireless vehicle sensor and wireless access point

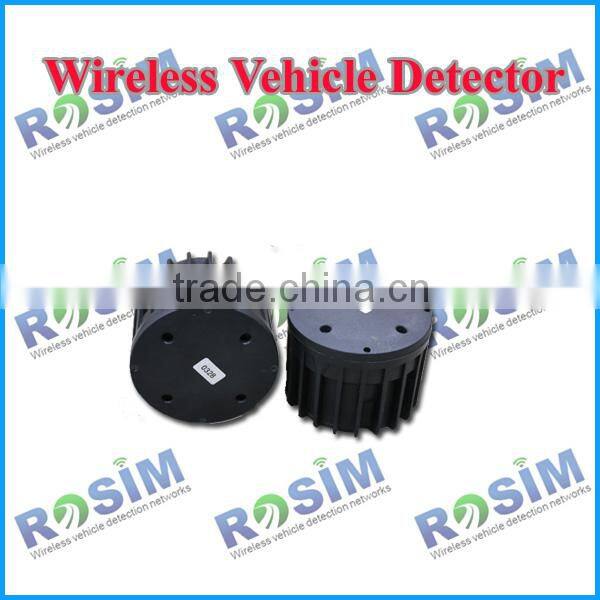

1.Wireless Vehicle sensor
KEY FEATURES
433MHz 120m transmit range
40Ah battery 10 years lifespan
Φ116/H90mm small size
-40~85℃ work temperature
Wireless OTA upgrade
97%+ accuracy
Embedded installation

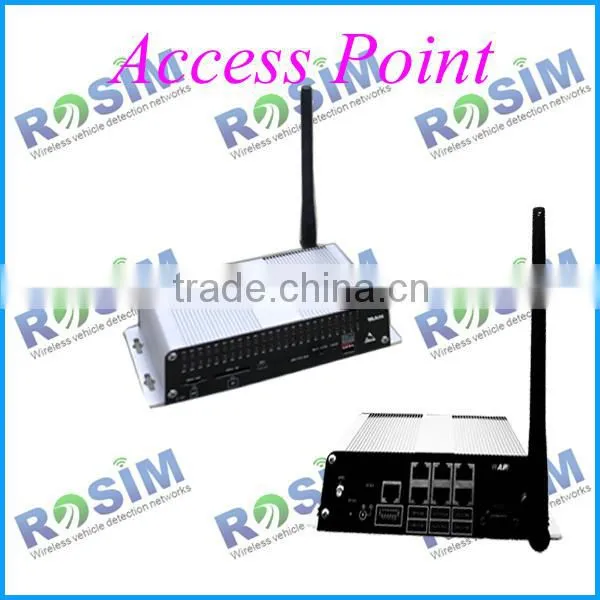

2.Wireless Access Point
KEY FEATURES
433MHz 120m transmit range
-40~85℃ work temperature
USB/RS-232/Ethernet data port
GPRS communication (Optional)
DC9-36V/PoE power supply
48 detection channels
48 OCs output terminals
48 detection result LEDs
L23/W10/H4.9cm

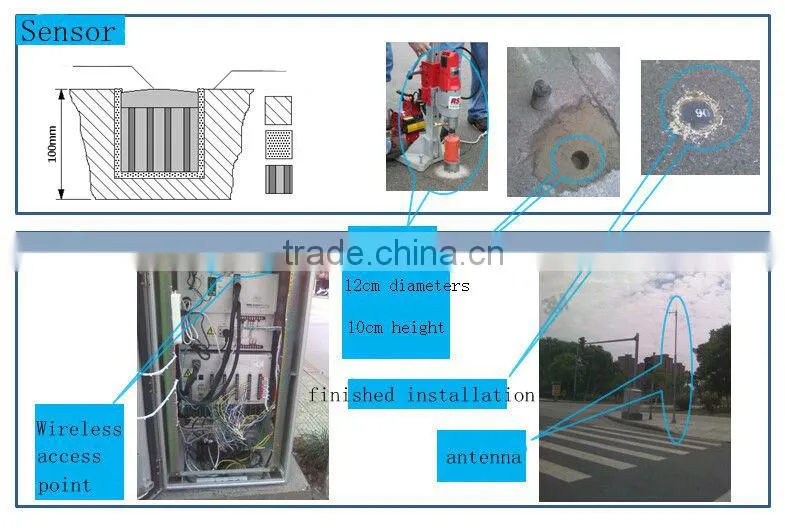

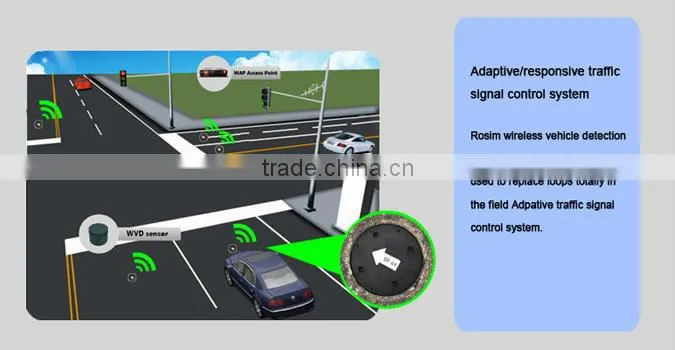

The Complete adaptive traffic control system installation diagram

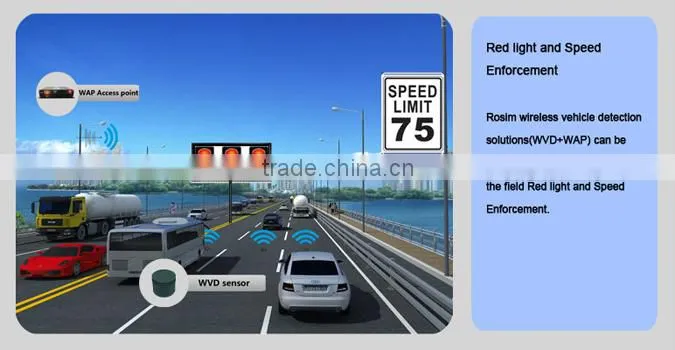

Adaptive traffic control system consists of wireless vehicle sensor(WD) and wireless access point(WAP).Wireless vehicle sensor senses the existance,length and speed of the car through magnetic technology and send data to access point,which acts as a gateway between detectors and user system through RS-232/485,Internet,GPRS etc.

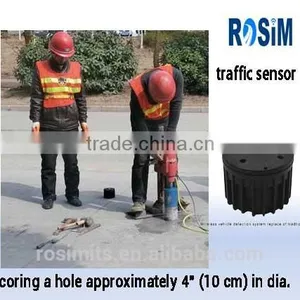

Wireless vehicle sensor (WVD-13X)installed in minutes, installation time for each one is less than 5 minutes,which minimized the lane closure time largely and also save manpower.Meanwhile, its detecting accuracy goes above 98%,which kept the high reliability of the traffic data.what's more,the detection of vehicle flow,speed,existance and lane occupancy make it adaptive to all kinds of traffic control system appications.
1)Adaptive traffic control system
2)Traffic flow monitoring

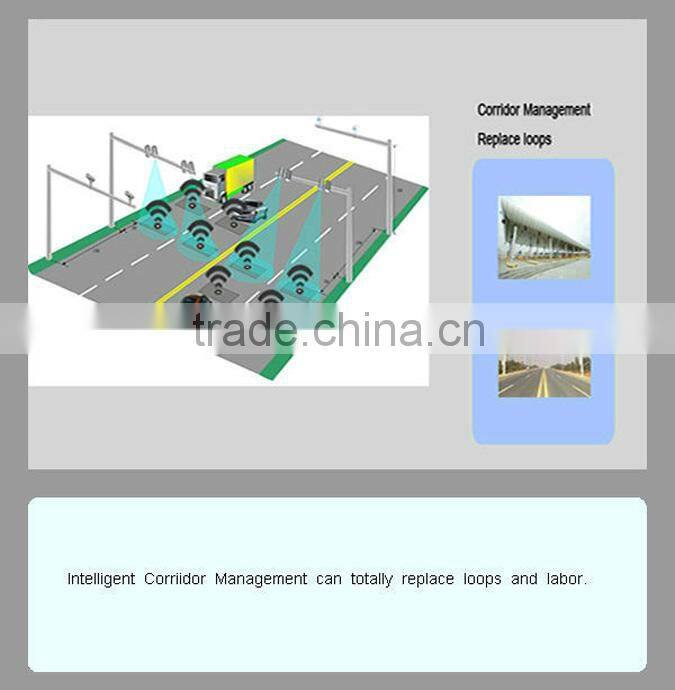

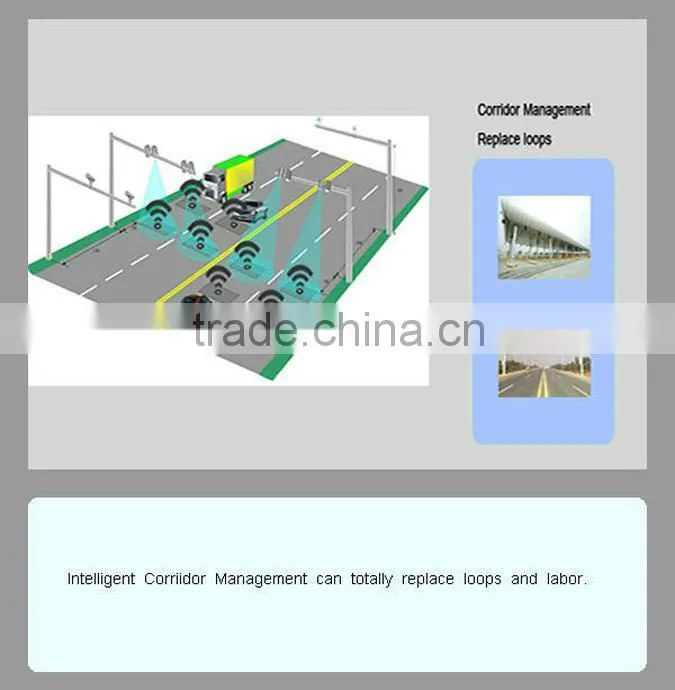

3)Corridor management
Rosim ITS campany focuses on the innovation and manufacture of wireless vehicle sensor and adaptive traffic signal system solution and real-time traffic information collection system. In the past 5 more years, Rosim wireless vehicle sensor detecting products had successfully replaced loops to monitor vehicles and the relative velocity, occupy rate and traffic flow in many projects of artery, freeway and intersection applications.
RosimITS provides high-quality detecting products for customers with favorable price.all the products support wireless updating.
Any question,Please feel free to contact us.
website:
1.What kind of company you are?
We focus on designing and manufacture of wireless vehicle sensors and adaptive traffic control system. We provide system integrator high quality,
easy using and low cost wireless vehicle sensor and adaptive traffic control system solution, which is based on the magnetic and wireless technology.
For more details, please visit our website.
2.What kind of system can be supported by?
ROSIM wireless vheicle sensors support most of the popular ITS system like SCATS, SCOOTS. Also ROSIM will provide the interface
protocol to system integrator as well as technical support.
3.What can the sensor be used for?
--Vehicle counting
--Adaptive traffic control system
--Corridor management
--Traffic flow monitoring in road,expressway, highway, etc...
4.What is the products structure?
The detection system includes vehicle sensor and Access point.
5.How to transmit the data from Access Point?
Access Point transmit the communication by RS232, ethernet, IO port, GPRS and 3G.
6.How about the maintenance?
We provide one year of quality guarantee and all the lifetime technical support services.
7.What's the price?
The price depends on the application and order quantity. Would you please let us know this and more your requirements, so
that we can provide you the most suitable model.
