Vehicle Speed Detection Sensor for Speed Enforcement

                                          Wireless Vehicle Speed Detection Sensor

 Working principle:

 By capture the tiny change of magnetism caused by the passing vehicle,Wireless Vehicle Detector (WVD)will send all of information on it to the access point, and then the access point aggregates the data from individual sensors and can report key traffic parameters including the vehicle velocity, length, type and occupy rate to the user systems through RS-232/485, Internet, GPRS, etc.

 Advantages:

a)  Install fast. It is only almost 6 minutes that is needed to install one wireless vehicle detector in the road, after installation, the traffic control could be released immediately;

b)  Work all-weather. Bad weather for example heavy fog, snow and rain makes no difference;

c)   No damage to the road. There’s no need to cut slots on the road surface and place cables or wires as the installation of loops, but only a tiny hole with the size Φ 120/H 100 mm, which makes WVDs become the most suitable vehicle detecting solution on the city high-way and bridges;

d)   About 10 years long life span. With high standard water proof and anti-press characteristics,  WVD wireless vehicle detector can even be used in the damaged or distorted roads where loops cannot be installed.

e)  Cost saving.

f)   Easy to maintain. Unlike the loops that are easily to be damaged but difficultly to be repaired, WVD wireless vehicle detector supports firmware updating over the air. No need to re-cut the slots, no more materials needed, and all of what you need is to take almost 10 minutes for the devices wireless updating;

g)  Low operation consuming. Due to the ultra-low power design and battery supply solution, WVD wireless vehicle detector’s consumed power is very lower than any other detectors like loops, video, micro-wave etc. in the market. This appears more and more significantly to our environments;

h)  Replace loops seamlessly. The same installation position and compatible output signals makes it easily and simply to replace loops in your system directly.

 Features:

• Vehicle existence measurement
• Vehicle move direction measurement
• Speed measurement
• Temperature measurement
• Bttery measurement
• Wireless OTA upgrade

 Benefits:

• 433 MHz wireless communication
• Up to 10 years battery life
• 97% high detection accuracy
• 0.5m-1.5m detection range(adjustable)
• Self-calibrating, self-tuning
• Work in all-weather
• 150m long and stable communication range between sensors and receiver
• Just only 5 ms installatin, no loop cutting or trenching required, reduced project time and cost
• More cost-effective than tradditional loops
• Increased reliability compared to inductive loops
• Easy configuration using Rosim Sensor Manager
• Installation under certain evaluated sections of motorway possible (MIDAS)

 Applications:

            1. Traffic lights optimization

            2. Red signal and speed enforcement

            3. Traffic flow monitoring system

            4. Traffic guide and traveler information systems

            5. Arterial performance measurement, etc.

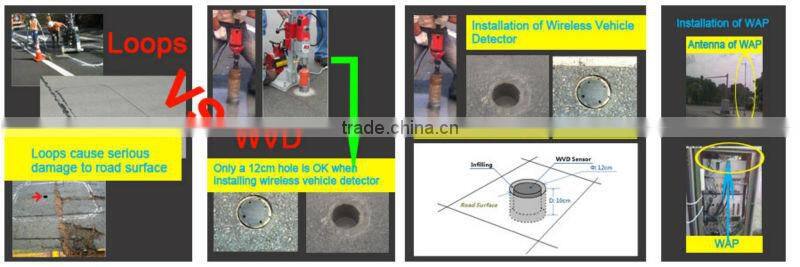

 Installation:

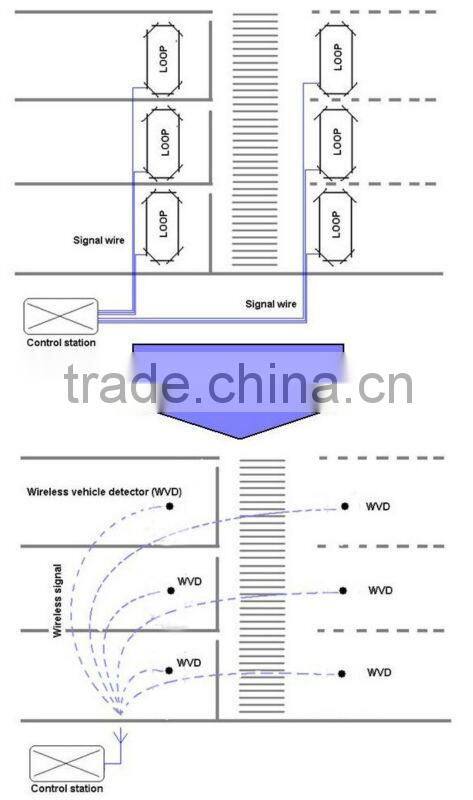

In the application of traffic signal controlling, traffic flow monitoring, traffic guiding, speed enforcement and red light enforcement, the installing place of the wireless vehicle detector (WVD) is the same as loops. The installation and signal connection of wireless access point (WAP) is compatible to loop controller, see following figure of wireless vehicle detection system.

  Services:

• OEM and ODM are acceptable.
• All of inquiry will be replied you within 24 hours.
• We provide professional staff to follow you by mail, phone or chating online with English.
• To ensure the quality of products, all of them must be test again before delivery.
• Unique problems can be solved by our professional  engineers.
• One year products quality guarantee.
• After sales service and technical support.
• Offering relative certificate according to your requests.

 Certification:

 Thanks for your attention, any questions pls contact Bella freely.
