Specifications
No cables, no cutting, no traffic closeLess cost, less time, lest maintenance
More efficiency, high accuracy, IP68
INTRODUCTION

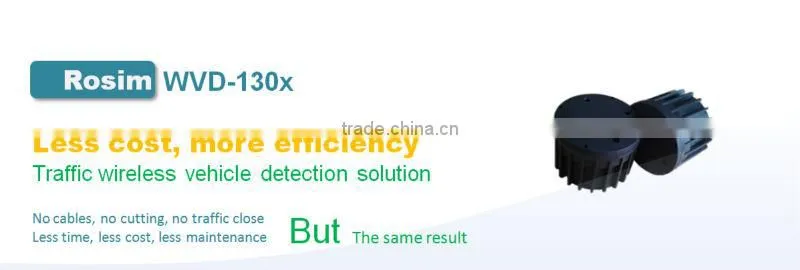

WVD-130x wireless vehicle detection sensor is designed for pursuit of high efficiency and low cost ITS traffic application systems. Based on technology of magnetic detection and uPower® wireless sensor network, WVD -130x sensors can be easily installed on road in few minutes without any wiring to acquire dynamic traffic flow information with no maintenance for many years.
KEY FEATURES
433MHz 120m transmit range
-40~85°C work temperature
10 years lifespan
Wireless OTA upgrade
97%+ accuracy
Φ116/H90mm
Embedded installation
FUNCTIONS
Traffic flow detection
Vehicle presence detection
Driving direction detection
Vehicle speed detection
Vehicle counting
Temperature detection
All weather work condition
APPLICATIONS
ITS Traffic flow monitor
Speed enforcement
Red light enforcement
Travel time guidance
Traffic signal optimization
Freeway incident detection
Entrance vehicle counting

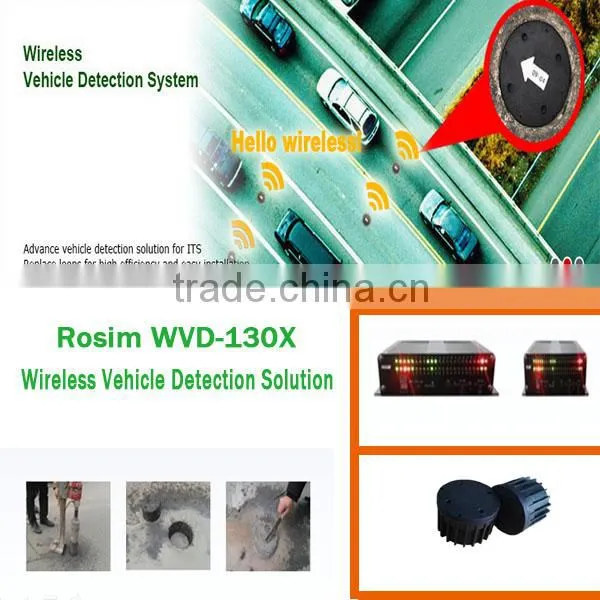

INSTALLATION
1.Drill a small hole of Φ12/D10cm
WVD-130x is available for F/E/V/D models:
Also a Start Kit is available for WVD-130x
RELATED PRODUCTS

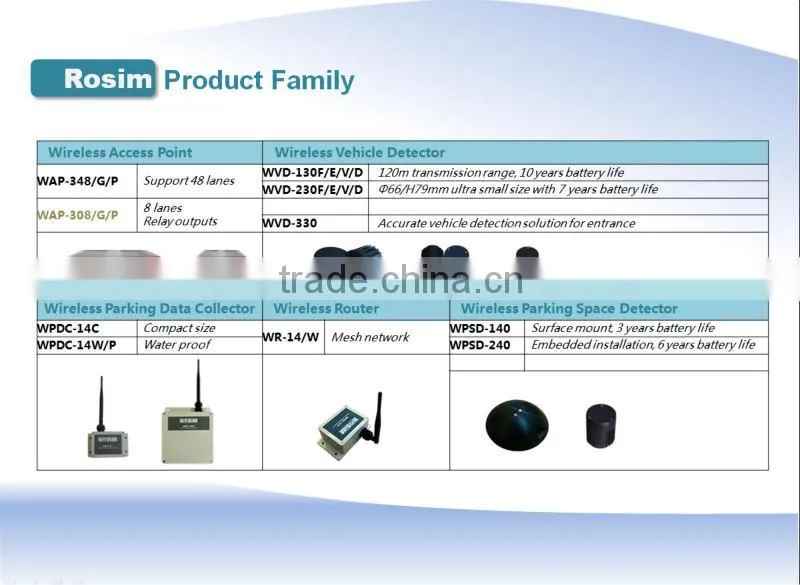

WVD-130x is designed to work with WAP wireless access point, which collects data from WVDs and transmits to user system.
a) Install fast. It is only almost 5 minutes that is needed to install one wireless vehicle detector in the road, after installation, the traffic control could be released immediately;
b) Work all-weather. Bad weather for example heavy fog, snow and rain makes no difference;
c) No damage to the road. There’s no need to cut slots on the road surface and place cables or wires as the installation of loops, but only a tiny hole with the size Φ 120/H 100 mm, which makes WVDs become the most suitable vehicle detecting solution on the city high-way and bridges;
d) About 10 years long life span. With high standard water proof and anti-press characteristics, WVD wireless vehicle detector can even be used in the damaged or distorted roads where loops cannot be installed.
e) Cost saving. You just can use the cement which is about $2 for 3-4 sensors.
f) Easy to maintain. Unlike the loops that are easily to be damaged but difficultly to be repaired, WVD wireless vehicle detector supports firmware updating over the air. No need to re-cut the slots, no more materials needed, and all of what you need is to take almost 10 minutes for the devices wireless updating;
g) Low operation consuming. Due to the ultra-low power design and battery supply solution, WVD wireless vehicle detector’s consumed power is very lower than any other detectors like loops, video, micro-wave etc. in the market. This appears more and more significantly to our environments;
h) Replace loops seamlessly. The same installation position and compatible output signals makes it easily and simply to replace loops in your system directly.
COMPANY INFORMATION
Rosim ITS focuses on the innovation and manufacture of wireless vehicle detector solution and real-time traffic information collection system. By virtue of the application of advanced sensing technology, wireless communication technology, and many years’ experiences in this field, Rosim ITS is successes in creating the WVD series wireless vehicle detector products and WAP series wireless access point, which build up a real-time wireless vehicle detection solution and traffic information monitoring system. In the past 5 more years, Rosim wireless vehicle detecting products had successfully replaced loops to monitor vehicles and the relative velocity, occupy rate and traffic flow in many projects of artery, freeway and intersection applications, for example in traffic flow monitoring system, red signal and speed enforcement, traffic lights optimization, traffic guide and traveler information systems, adaptive traffic signal control, arterial performance measurement, etc..
Maintenance and Support :
Rosim ITS provides our customers high quality wireless vehicle detecting products and solutions, all the products support wireless updating, which makes it easily
maintained. Also, Rosim ITS provides 24 hours on-line supports .
Welcom to visit and feel free to contact us!
