ROSIM Magnetic Wirleess Sensor Network for Detecting Vehicle Movement Data

ROSIM Magnetic Wirleess Sensors network for Detecting vehicle movement Data

Wireless magnetic sensor to detect traffic from Rosim ITS is made up of just two devices: wireless sensor (WVD),wireless access point(WAP).

Detection information:

Existence and speed measurement
Traffic signal light optimization
Red light and speed enforcement
Traffic flow monitoring

KEY FEATURES:

433MHz 120m wireless communication
accurate detection rate >97%
10 years battery life
Easy and fast installation
Wireless OTA

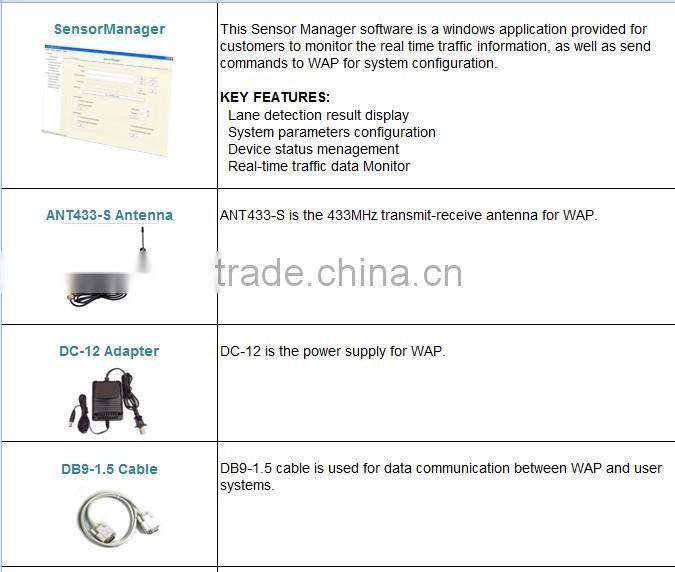

Accessory

2.How does it work?

wireless vehicle sensor / magnetic vehicle sensor/ traffic solution

Wireless detector senses the existance,length and speed of the car through magnetic technology and send data to access point,which acts as a gateway between detectors and user system will send up-to-date information to user system through USB,RS-232/485,Ethernet,GPRS etc.

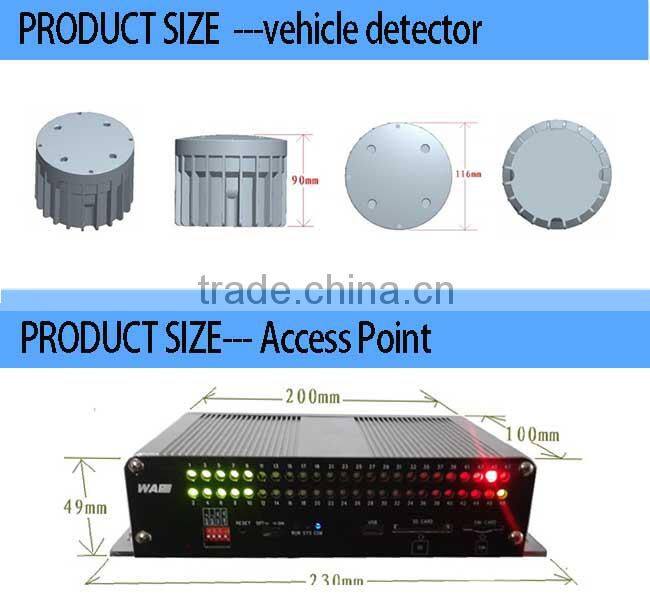

 WVD Installation: Flush mount round shap,drill a round hole, fill with normal cement(cost saved)

it designed to bury in ground,whose installation time is less than 5minutes,which minimized the lane closure time largely.With magnetic detecting technology,the accuracy goes up to 98%.what's more,sensors embeded in the road detect vehicle flow,speed,existance ,direction and lane occupancy,which makes it flexible to integrate with various systems.

WAP installation: Installation : One Access Point have 48 channels, and have corresponding light indicator on the panel; Access point installed in the existing frastructure like traffic controller cabinet; antenna installed on the pole with the height of 6m

3.APPLICATION Details

RosimITS dedicates to provide high-quality detecting products for our customers with cost-effective price.all the products support wireless updating.
