Specifications
1. Magneto-resistive technology2.Dependable communication network
3. Maintenance free
4. Install in minutes
5.97% accuracy

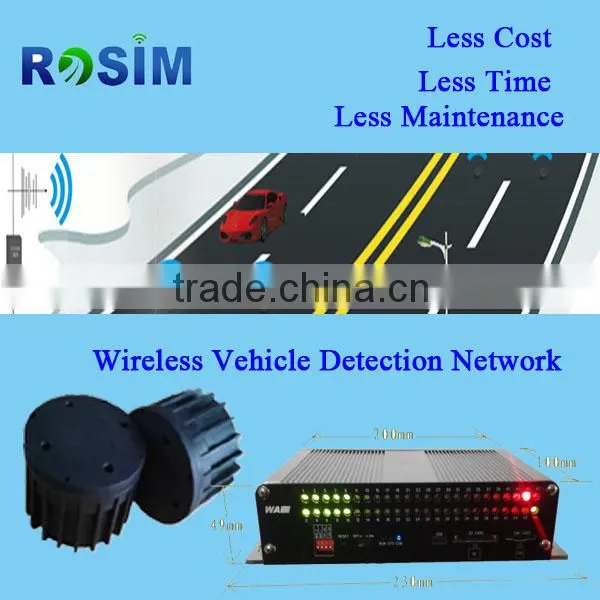

ROSIM Wireless Vehicle Detection System
ROSIM Wireless Vehicle Detection System includes wireless vehicle sensor(WVD) and Wireless Access Point(WAP). Sensor is for detecting vehicle presence, and access point is for collecting the data from sensors and transmit to traffic controller, camera or platformby RS232,Ethernet, GPIO,GPRS or 3G,etc.
ROSIM' WVD130 Wireless Vehicle Detection System provides an accurate, dependable,and highly cost-effective detection network for all vehicle detection applications.
Just one set of tools can realize multipl aplications.
Sensor
Less cost, more efficiency,dependable, flexible
No cables, no cutting, no traffic close
Less time, less cost, less maintenance
WVD-130 wireless vehicle detection sensor is designed for pursuit of high efficiency and low cost ITS traffic application systems. Based on technology of magnetic detection and uPower® wireless sensor network, WVD -130 sensors can be easily installed on road in a few minutes without any wiring to acquire dynamic traffic flow information with no maintenance for many years.
Features
- Flush mount installation with no wires or lead-in cabling
- 433Mhz, 120m communication distance from sensor to acess point, no need repeater
- Impervious to weather
- 0.5-1.5m detection range( adjustable)
- 97% accuracy,superior dependsbility and extensibility
- 10-year battery life
- 5 mins installation and deployment reduces road closures and labor cost
- Self-calibrating, self-tuning
- Re-usable and support wireless OTA upgrade
- Patented, easily integrate with traffic controller,camera or other devices
- Easy configuration
Functions
- Magnetometer for all types of vehicle detection
- Vehicle presence detection
- Vehicle counting
- Traffic vehicle occupancy ratio
- Vehicle speed measurement
-
Vehicle movement direction recognization
Installation
In the application of traffic signal controlling, traffic flow monitoring, traffic guiding, speed enforcement and red light enforcement, the installing place of the wireless vehicle detector (WVD) is the same as loops.
The installation for WVD includes 3 steps:
1. Drill a hole of 12cm diameters/10cm height
2.Fill it with cement to 1/2
3.Embedded the WVD and finish the installation
Maintenance and support
1. Rosim promise to provide customers high quality products and solution
2.All the products support wireless updating, which makes it easily maintained.
3.Rosim provides 24 hours on-line supports.
4. Rosim support the Starter Kit sales for customers.
