CNC1503S CNC wood turning lathe wood lathes for sale
1.Technical Parameters
Brand name |
Unit |
Technical data |
||
CNC1503S |
CNC1504S |
|||
Max processing size |
mm |
F300 *1500 |
F400*1500 |
|
|
Z-axis maximum moving distance
|
mm |
1500 |
||
|
X-axis maximum one-way moving distance
|
mm |
200 |
250 |
|
|
Main drive form
|
|
Independent spindles, frequency stepless
|
||
|
Spindle speed range
|
r/min |
0-3500 |
||
Feeding speed |
mm/min |
3000 |
||
Chuck diameter |
mm |
Φ160 |
||
Main motor power |
kw |
5.0 |
||
Power supply |
|
380V/50HZ |
||
Dimensions (L * W *H) |
mm |
2700×900×1300 |
||
Net weight(Kg) |
kg |
1200 |
||
1. the characteristics
1. horizontal flat bed structure;
2, the spindle frequency stepless speed regulation;
3, X / Z-axis stepper drives;
4, bed rail for high-precision gauge;
5, precision ball screws, automatic forced lubrication;
6, duplex turret, roughing, finishing once completed;;
7The control system uses sophisticated CNC controller, 12-inch color screen, the international standard G-code CNC language, supports a variety of software, support for technology extensions.
3. use

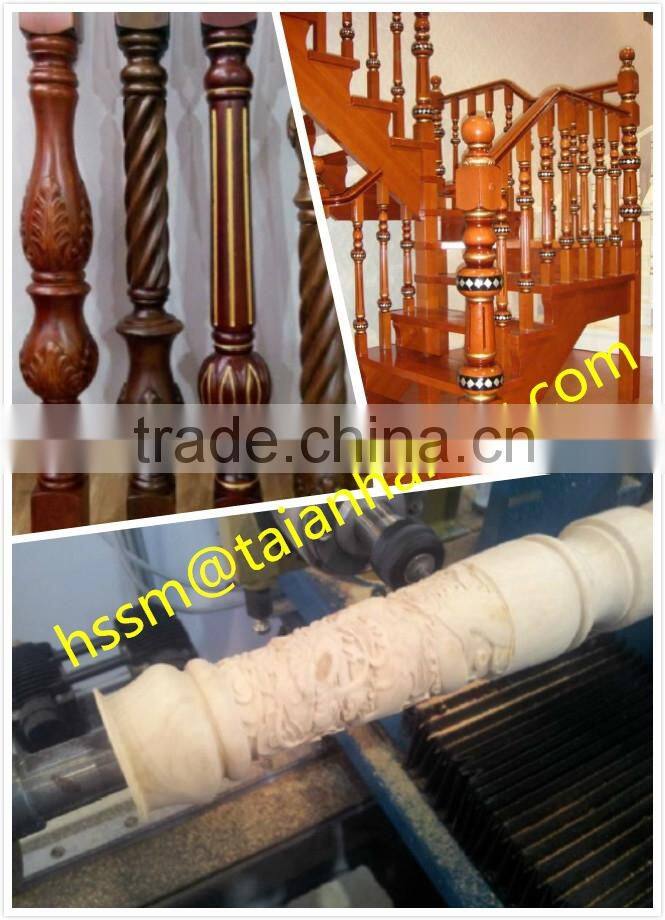

Processing: staircase column, bending round, vases, tables, chairs legs, European furniture Roman, wooden hangers, washbasin and so on; cylindrical, conical, curved, spherical and other complex shapes rotator semi-finished wood products or wood .
4 the configuration
Standard configuration:
1,12 inch color screen, built-in CNC computer;
2, imported linear guide, precision ball screws;
3, the rotation center with the knife (5CM wooden, 6CM wooden);
4, pneumatic feeding, automatic centering;
5, pneumatic material thimble;
6, V-type front steel tools;
7, with controls easy to use software, the basic pattern software;
8. Random accompanied.
5.Select Configure
1, φ160 four jaw chuck linkage;
2, engraving spindle and pull trough multifunction control section;
3, woodworking special vacuum cleaner;
4,220V constant power frequency spindle control;
5, universal swivel joints;
Note: Customer-owned gas source, other configurations can be selected according to customer requirements.
