ROSIM sensors are the equivalent of indoor ultrasonic parking sensor, for Parking Building Project, there is antoher solution, the sensor can be autonomous for communication and energy, save the labor cost and cable.

Here is the solution, An extremely robust sensor developed by ROSIM, a high-perfformance communication.

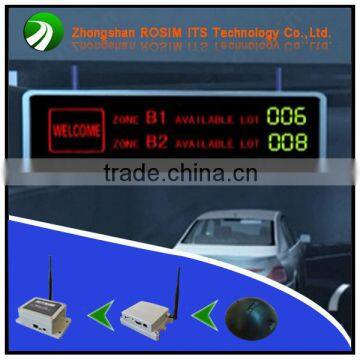

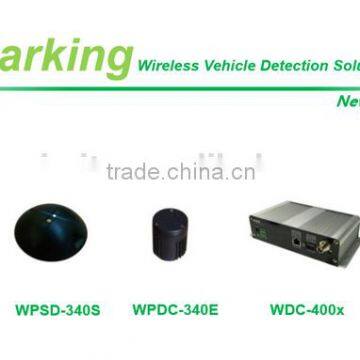

ROSIM's smart parking guidance system include wireless parking space sensor and wireless parking data collector;

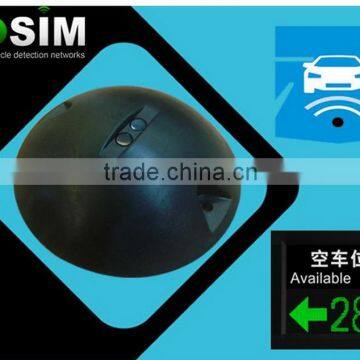

Wireless Parking Space Sensor

KEY FEATURES:

n     D2 detection technology

n     Extreme accurate detection

n     Easy and fast installation

n     Wireless instead of cables

n     Wireless OTA remote update

n     Low cost, small size

Wireless parking space detector is designed to sense parking lots occupancy information without cables. Due to the integration of dual detection technology of magnetic and optic together with a sophisticated algorithm in a ultra-small unit, and employment of LPLR^TMlow power-long rang technology, WPSD achieves an extreme high detection accuracy, wide communication range, easy installing and cost-efficient parking lots occupancy data collection solution for indoor/outdoor parking management system.

♦     Automatic data collection

♦     Bidirectional communication with all components

♦     Radio channel andnetwork ID assignment

♦     Remote system online configuration

♦    Ethernet and RS232 interface

ROSIM wireless parking data collector is the interface between the wireless parking spaces occupancy detection system and user application. Due to the wireless sensor network formed among these parking detection sensors andone wireless data collector in a parking lot, the parking space occupancy information is transmitted to system provider’s parking management platform timely.

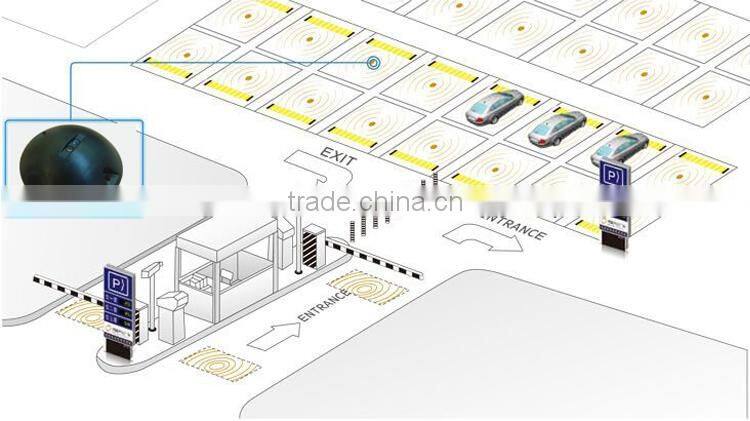

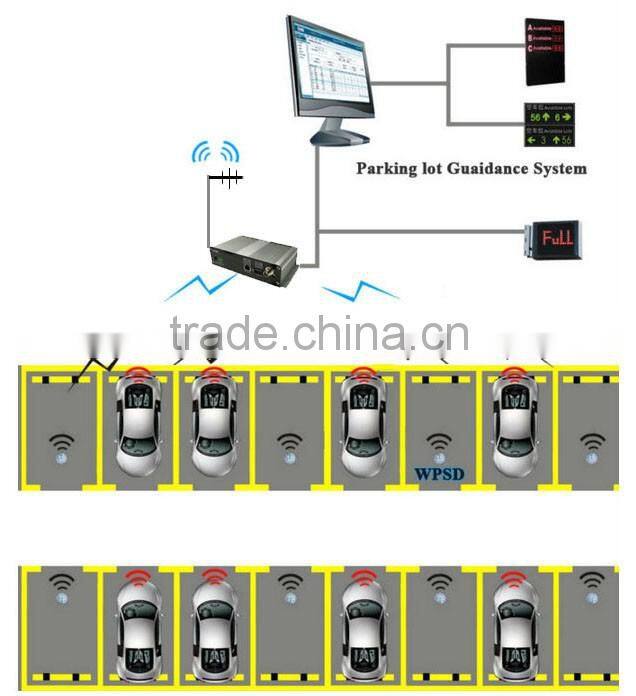

Car Parking Guidance System Diagram

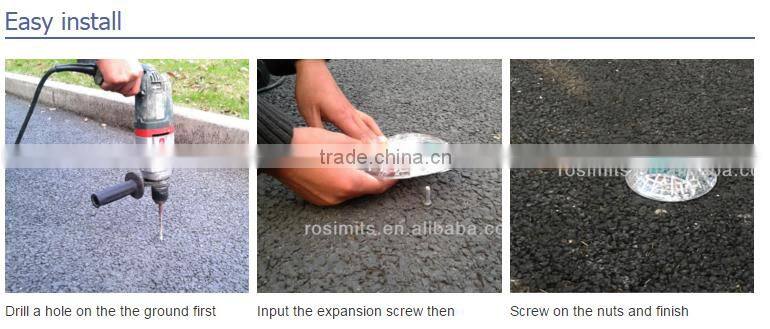

Parking Space Detector Installation

Wireless Parking Space Detectors (WPSD) are installed in each individual parking space, measure occupancy of these parking spaces.

1.Drill two holes for screws

2.Fix the two inflate screws

3.Place parking space sensor on each slots

4.Mounting car parking slot sensor by the two screws

Demo software

Parkview

KEY FEATURES:

♦     Configuration and monitor funciton

♦     Easy integraty

♦     Parking lot visible

♦     SDK/API supplied

ParkViewsoftware is provided for customers to quick start the wireless parking space detection system. It provides a series of configuration functions for WPSD sensors, as well as various forms of data monitor output. A demo system or experiment of testing purposes can be easily established by ParkView software.

FUNCTIONS

Configuration

Monitor

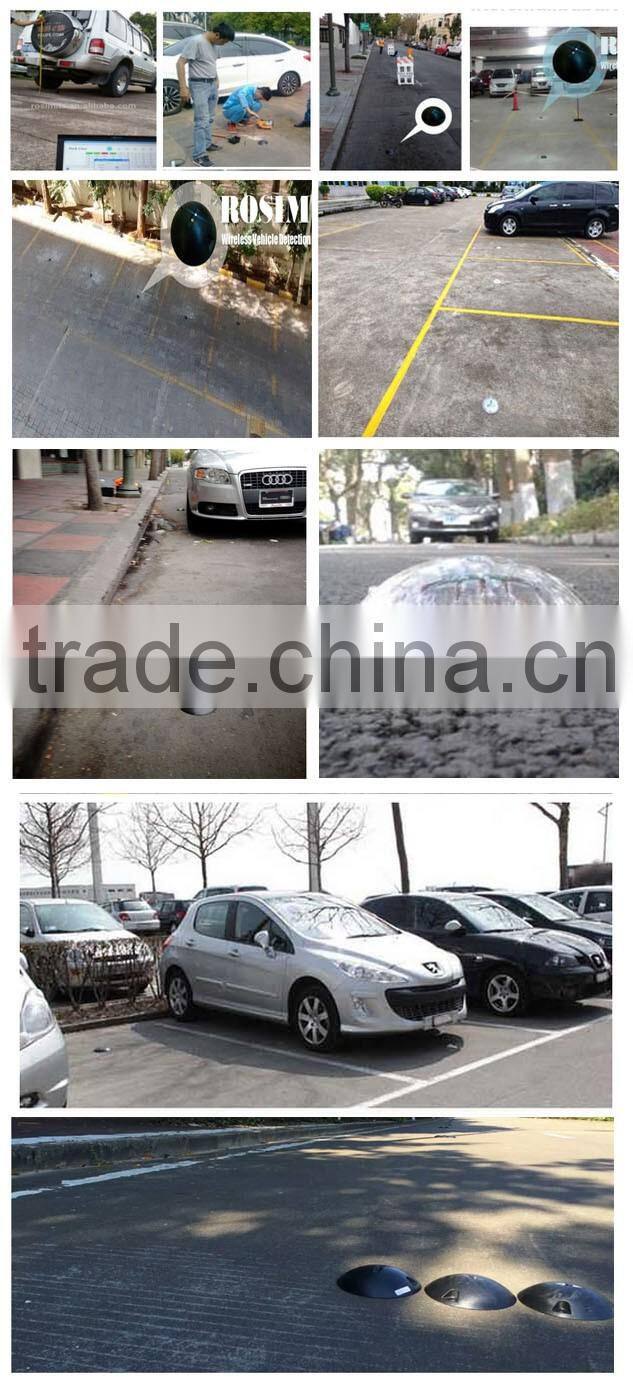

Project Reference

Indoor/Outdoor/Street Parking management system

Contact Person

If still need any further information, welcome to visit us or contact the manager Kelly:
