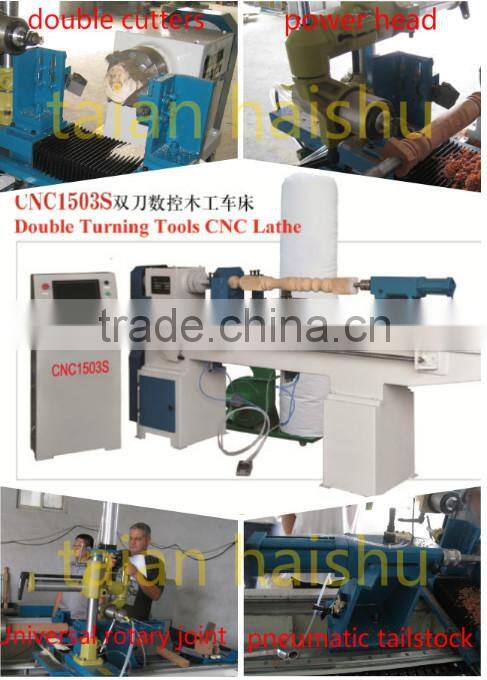

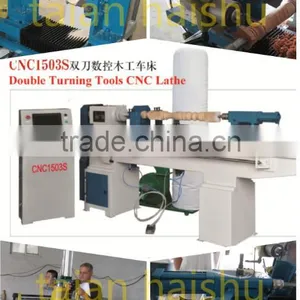

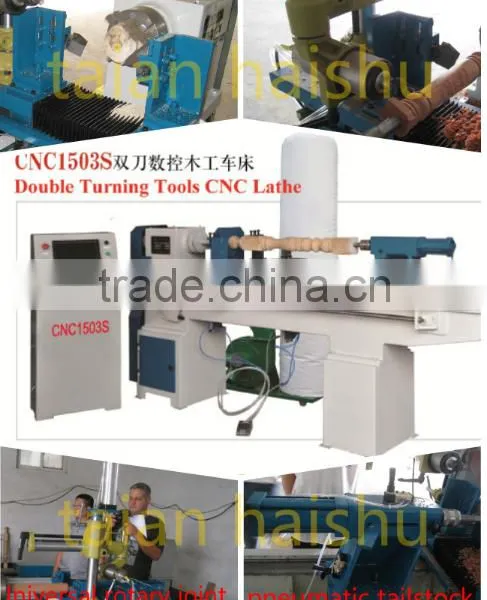

CNC1503S cnc wood lathe
1.Technical Parameters
Brand name | Unit | Technical data | ||
CNC1503S | CNC1504S | |||
Max processing size | mm | F300 *1500 | F400*1500 | |
Z-axis maximum moving distance
| mm | 1500 | ||
X-axis maximum one-way moving distance
| mm | 200 | 250 | |
Main drive form
|
| Independent spindles, frequency stepless
| ||
Spindle speed range
| r/min | 0-3500 | ||
Feeding speed | mm/min | 3000 | ||
Chuck diameter | mm | Φ160 | ||
Main motor power | kw | 5.0 | ||
Power supply |
| 380V/50HZ | ||
Dimensions (L * W *H) | mm | 2700×900×1300 | ||
Net weight(Kg) | kg | 1200 | ||
2. the characteristics
A horizontal flat bed structure;
2, the spindle frequency stepless speed regulation;
3, X / Z-axis stepper drives;
4, bed rail for high-precision gauge;
5, precision ball screws, automatic forced lubrication;
6, duplex turret, roughing, finishing once completed;;
10. The control system uses sophisticated CNC controller, 12-inch color screen, the international standard G-code CNC language, supports a variety of software, support for technology extensions.
3 use

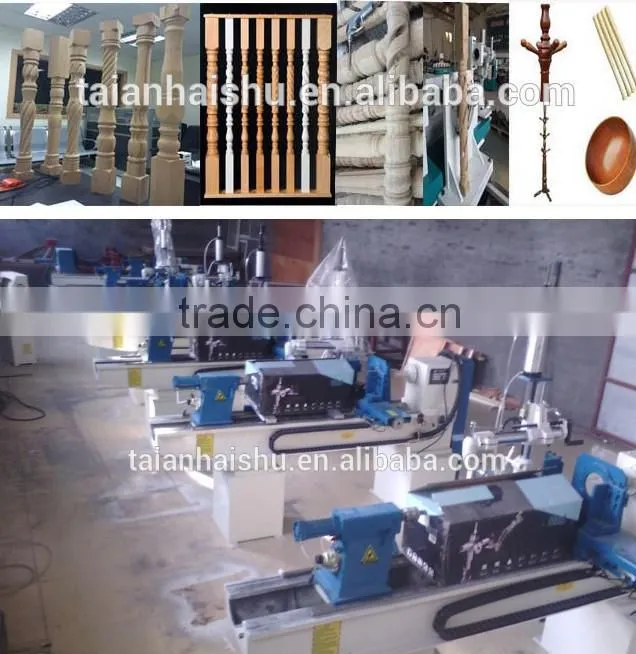

Processing: staircase column, bending round, vases, tables, chairs legs, European furniture Roman, wooden hangers, washbasin and so on; cylindrical, conical, curved, spherical and other complex shapes rotator semi-finished wood products or wood .
4 the configuration
Standard configuration:
1,12 inch color screen, built-in CNC computer;
2, imported linear guide, precision ball screws;
3, the rotation center with the knife (5CM wooden, 6CM wooden);
4, pneumatic feeding, automatic centering;
5, pneumatic material thimble;
6, V-type front steel tools;
7, with controls easy to use software, the basic pattern software;
8. Random accompanied.
5.Select Configure
1, φ160 four jaw chuck linkage;
2, engraving spindle and pull trough multifunction control section;
3, woodworking special vacuum cleaner;
4,220V constant power frequency spindle control;
5, universal swivel joints;
Note: Customer-owned gas source, other configurations can be selected according to customer requirements.
